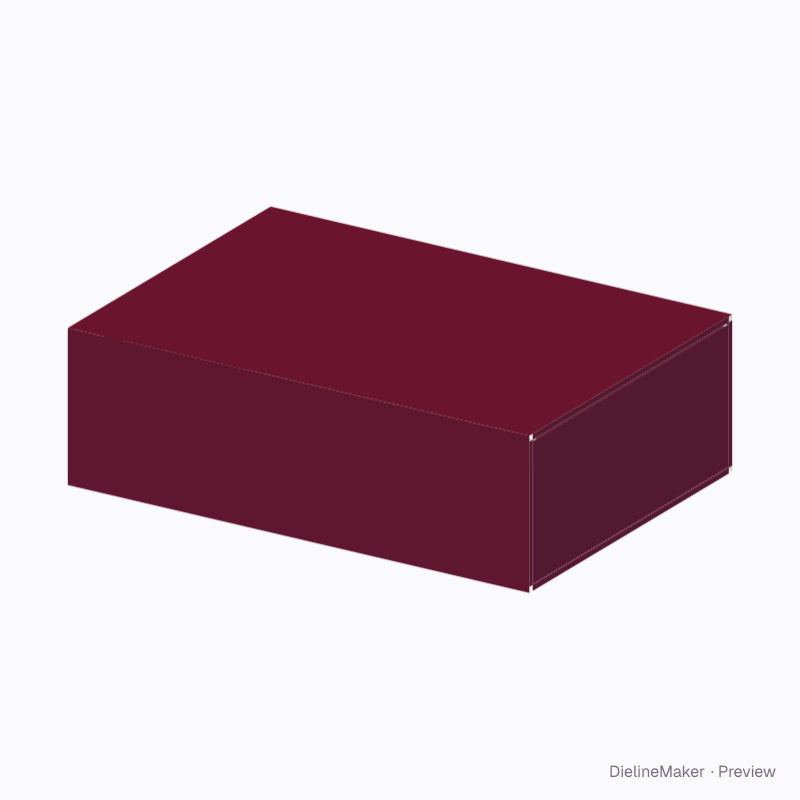

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RIGID-DRAWER-01Rigid
Rigid drawer and sleeve dieline
A wrapped greyboard drawer sliding in a wrapped sleeve open at both ends. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 50 mm
Outside188 × 132 × 62 mm
Flat blank212.6 × 394.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RIGID-DRAWER-01
- Inside size
- Length 180 · Width 120 · Height 50 mm
- Size range
- Length 50–450 · Width 40–350 · Height 15–200 mm
- Manufacturing
- 184 × 126 × 56 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Drawer wrap, Drawer greyboard blank, Sleeve wrap, Sleeve greyboard blank
- Board area
- 0.276 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for

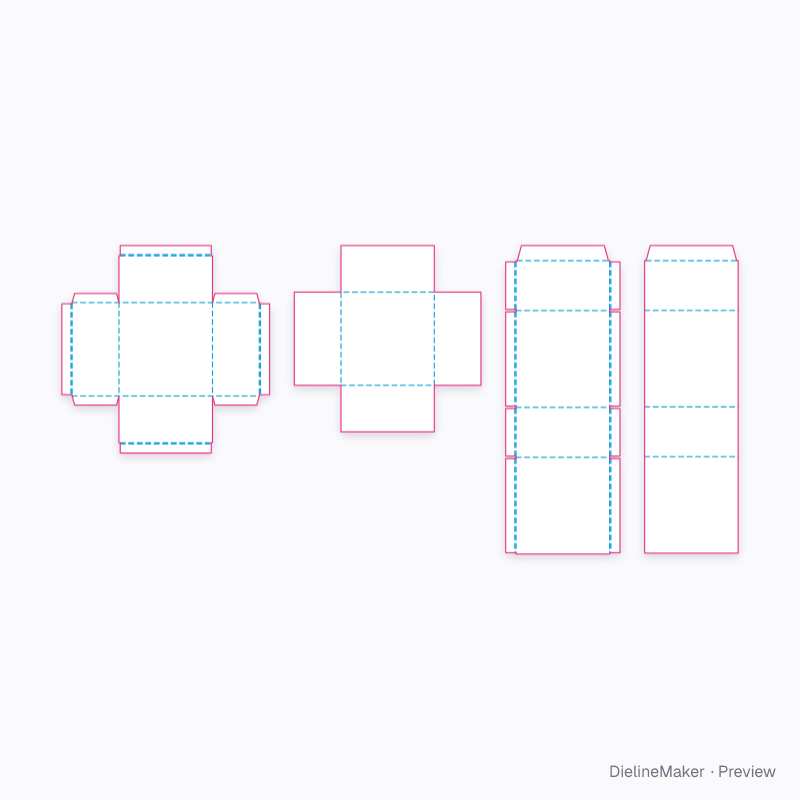

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-RIGID-DRAWER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseDrawer wrap | 184.3 × 124.3 | – |
| FrontDrawer wrap | 184.3 × 52.2 | – |
| BackDrawer wrap | 184.3 × 52.2 | – |
| Left sideDrawer wrap | 52.2 × 124.3 | – |
| Right sideDrawer wrap | 52.2 × 124.3 | – |
| Turn-in roll ×2Drawer wrap | 180 × 2.2 | L × – |
| Glue flap ×4Drawer wrap | 52.2 × 12 | – |
| Turn-in roll ×2Drawer wrap | 2.2 × 120 | – × W |
| Turn-in inner ply ×2Drawer wrap | 180 × 12 | L × – |
| Turn-in inner ply ×2Drawer wrap | 12 × 120 | – × W |
| BaseDrawer greyboard blank | 184 × 124 | L + 2T × W + 2T |
| FrontDrawer greyboard blank | 184 × 52 | L + 2T × H + T |
| BackDrawer greyboard blank | 184 × 52 | L + 2T × H + T |
| Left sideDrawer greyboard blank | 52 × 124 | H + T × W + 2T |
| Right sideDrawer greyboard blank | 52 × 124 | H + T × W + 2T |
| Sleeve bottomSleeve wrap | 184.3 × 129.6 | – |
13 more panels are listed in the editor’s structure step.

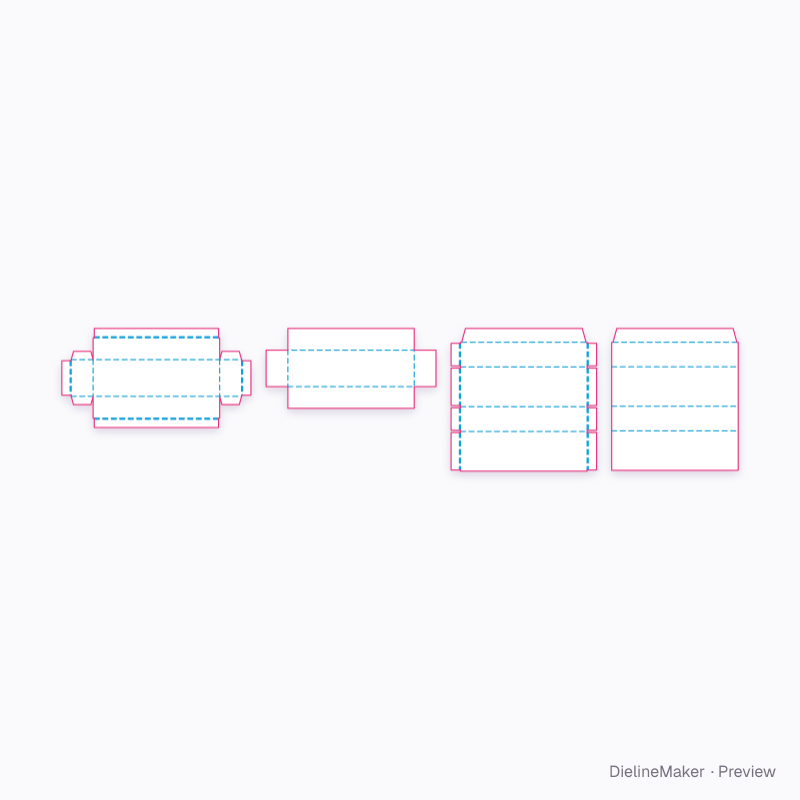

Ready-sized rigid drawer and sleeve presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this rigid drawer and sleeve yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
