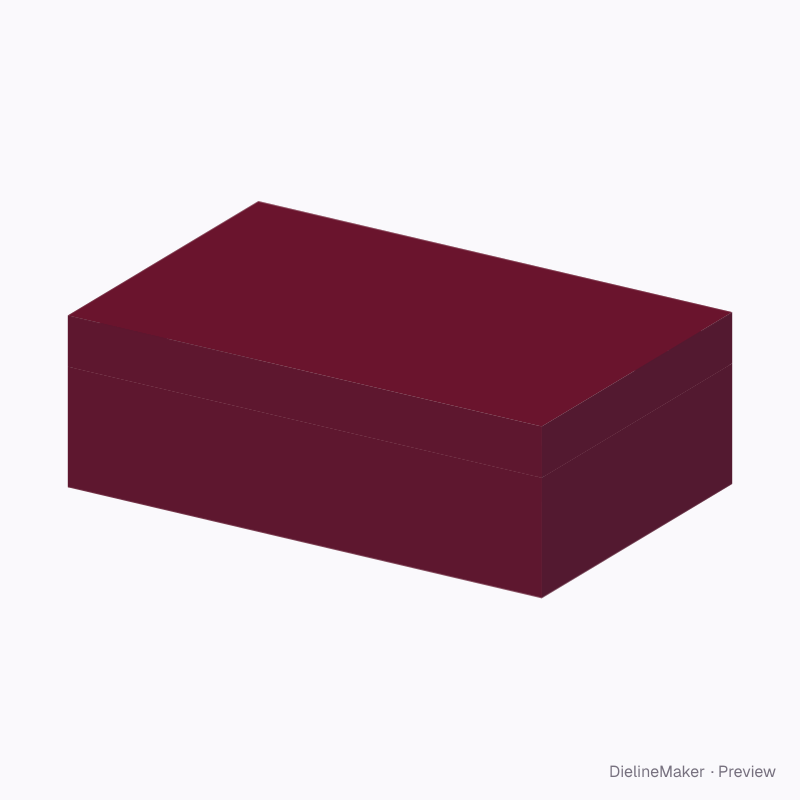

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HINGED-DOUBLE-TRAY-01Rigid
Rigid hinged case with two trays dieline
A wrapped greyboard case whose base and lid are both rimmed trays, joined at the back by a creased hinge strip. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 140 × 50 mm
Outside228 × 148 × 58 mm
Flat blank357 × 277 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HINGED-DOUBLE-TRAY-01
- Inside size
- Length 220 · Depth 140 · Base height 50 mm
- Size range
- Length 50–450 · Depth 40–350 · Base height 15–200 mm
- Manufacturing
- 224 × 144 × 54 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Base wrap, Base greyboard blank, Lid wrap, Lid greyboard blank, Hinge strip (paper or book cloth)
- Board area
- 0.269 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HINGED-DOUBLE-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase wrap | 224.3 × 144.3 | – |
| FrontBase wrap | 224.3 × 52.2 | – |
| BackBase wrap | 224.3 × 52.2 | – |
| Left sideBase wrap | 52.2 × 144.3 | – |
| Right sideBase wrap | 52.2 × 144.3 | – |
| Turn-in roll ×2Base wrap | 220 × 2.2 | L × – |
| Glue flap ×4Base wrap | 52.2 × 12 | – |
| Turn-in roll ×2Base wrap | 2.2 × 140 | – × W |
| Turn-in inner ply ×2Base wrap | 220 × 12 | L × – |
| Turn-in inner ply ×2Base wrap | 12 × 140 | – × W |
| BaseBase greyboard blank | 224 × 144 | L + 2T × W + 2T |
| FrontBase greyboard blank | 224 × 52 | L + 2T × H + T |
| BackBase greyboard blank | 224 × 52 | L + 2T × H + T |
| Left sideBase greyboard blank | 52 × 144 | H + T × W + 2T |
| Right sideBase greyboard blank | 52 × 144 | H + T × W + 2T |
| Lid topLid wrap | 224.3 × 144.3 | – |
15 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid tray heightmm
- Pop-up display frameon / off
- Tiers below the lidcount

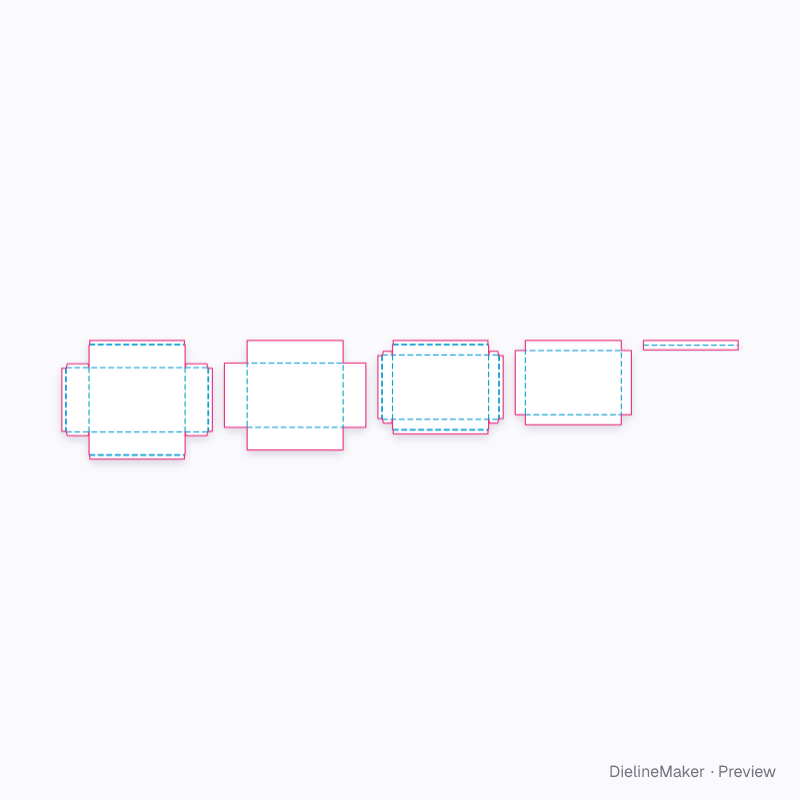

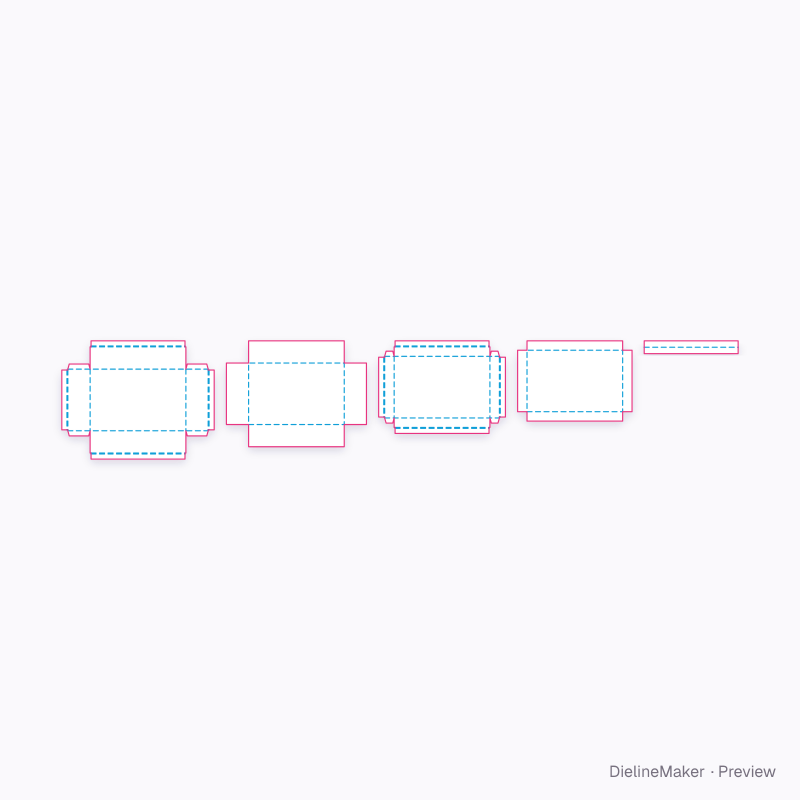

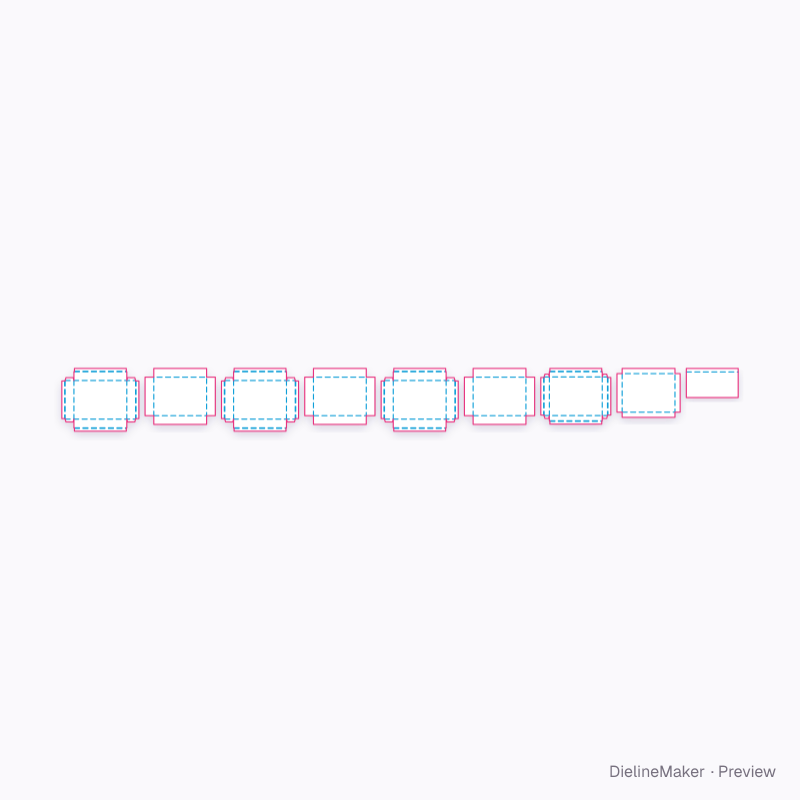

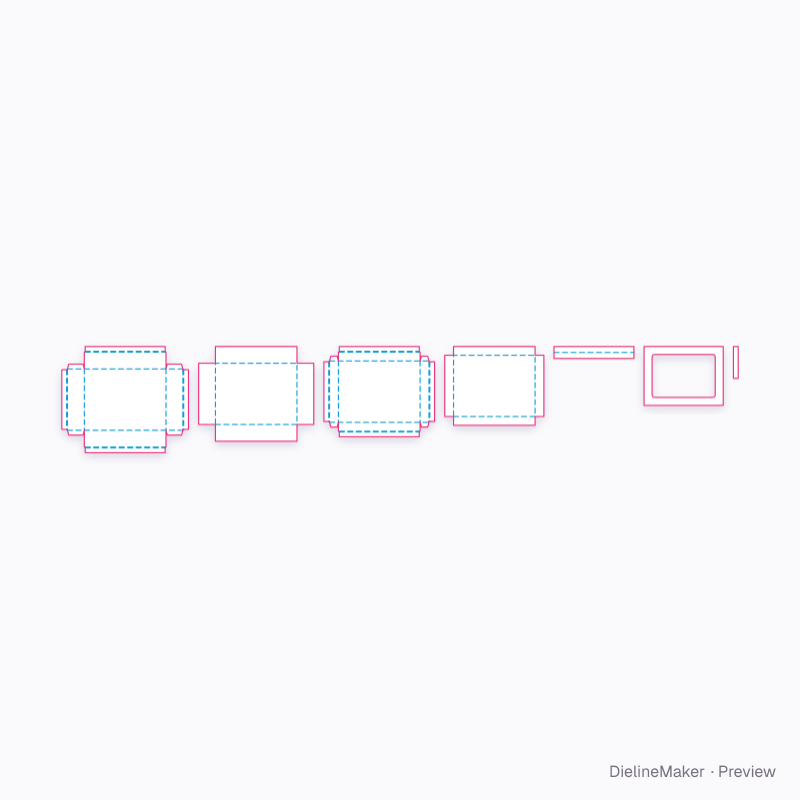

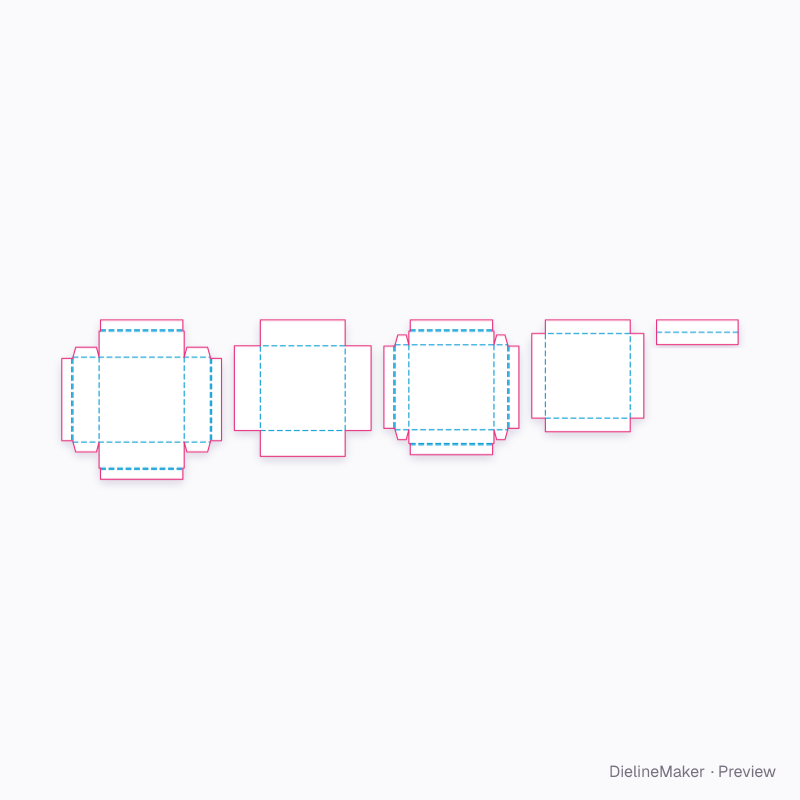

Ready-sized rigid hinged case with two trays presets
The same structure with sizes, boards and options set for a use.
