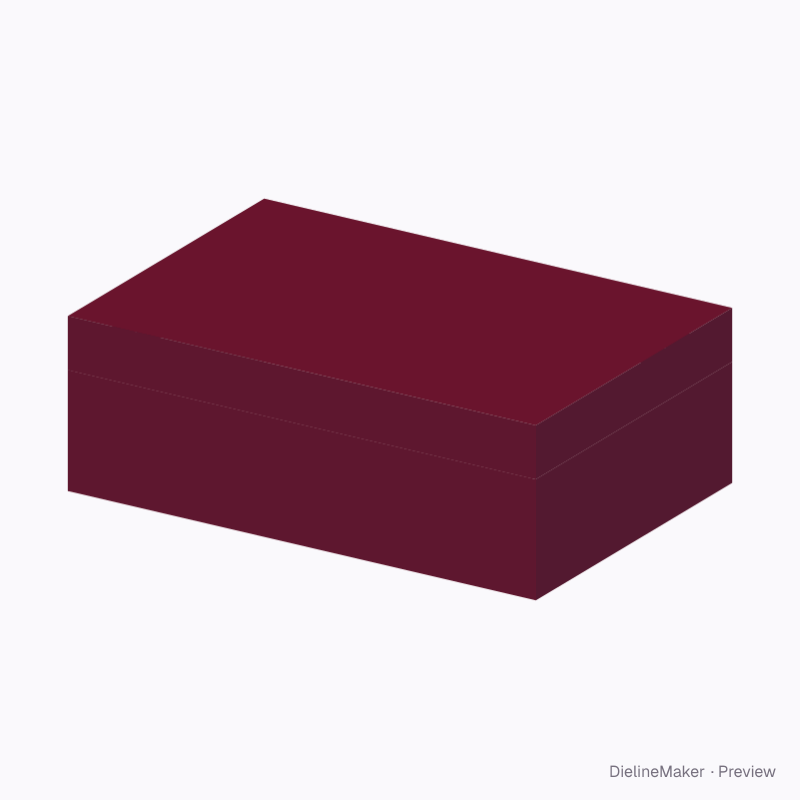

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HINGED-DOUBLE-TRAY-01Rigid
Deep hinged kit case dieline
A wrapped greyboard case whose base and lid are both rimmed trays, joined at the back by a creased hinge strip. A ready-sized preset of the rigid hinged case with two trays — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 70 mm
Outside308 × 208 × 78 mm
Flat blank477 × 377 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HINGED-DOUBLE-TRAY-01
- Inside size
- Length 300 · Depth 200 · Base height 70 mm
- Size range
- Length 50–450 · Depth 40–350 · Base height 15–200 mm
- Manufacturing
- 304 × 204 × 74 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Base wrap, Base greyboard blank, Lid wrap, Lid greyboard blank, Hinge strip (paper or book cloth)
- Board area
- 0.502 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HINGED-DOUBLE-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase wrap | 304.3 × 204.3 | – |
| FrontBase wrap | 304.3 × 72.2 | – |
| BackBase wrap | 304.3 × 72.2 | – |
| Left sideBase wrap | 72.2 × 204.3 | – |
| Right sideBase wrap | 72.2 × 204.3 | – |
| Turn-in roll ×2Base wrap | 300 × 2.2 | L × – |
| Glue flap ×4Base wrap | 72.2 × 12 | – |
| Turn-in roll ×2Base wrap | 2.2 × 200 | – × W |
| Turn-in inner ply ×2Base wrap | 300 × 12 | L × – |
| Turn-in inner ply ×2Base wrap | 12 × 200 | – × W |
| BaseBase greyboard blank | 304 × 204 | L + 2T × W + 2T |
| FrontBase greyboard blank | 304 × 72 | L + 2T × H + T |
| BackBase greyboard blank | 304 × 72 | L + 2T × H + T |
| Left sideBase greyboard blank | 72 × 204 | H + T × W + 2T |
| Right sideBase greyboard blank | 72 × 204 | H + T × W + 2T |
| Lid topLid wrap | 304.3 × 204.3 | – |
15 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid tray heightmm
- Pop-up display frameon / off
- Tiers below the lidcount
The rigid hinged case with two trays family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this deep hinged kit case yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
