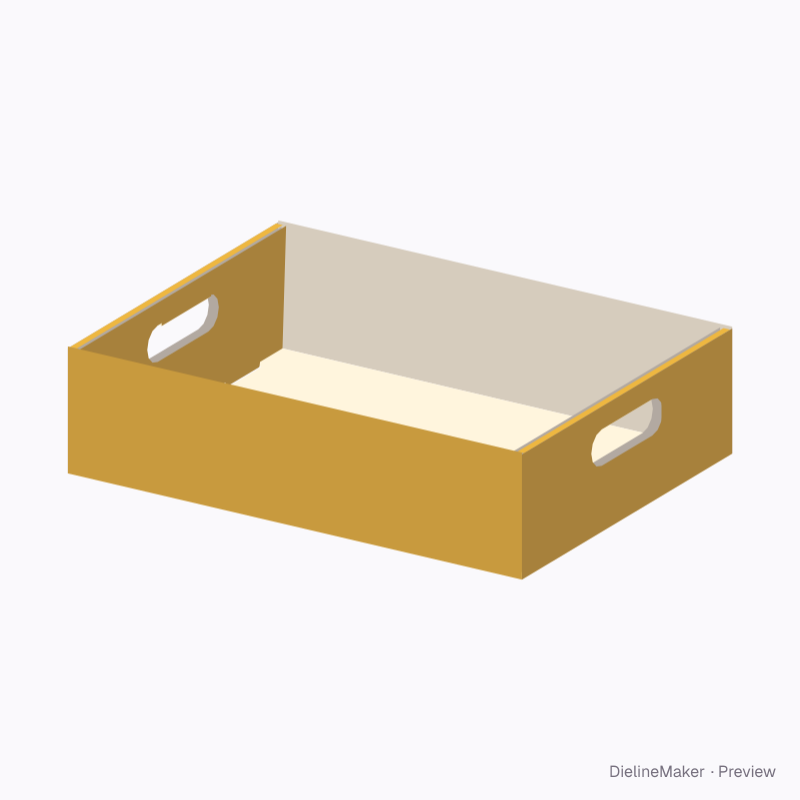

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Extra large hamper with folded grips dieline
A glue-free corrugated hamper tray with captive rolled end walls. Material retained in each hand opening makes two real folds, wrapping under the grip and returning against the inner wall. The handle openings, grip return and corner clearances fit the selected board. A ready-sized preset of the hamper tray with folded hand grips — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside420 × 320 × 110 mm
Outside439.2 × 326.4 × 113.2 mm
Flat blank888.8 × 546.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 420 · Inside width 320 · Inside height 110 mm
- Size range
- Inside length 180–800 · Inside width 120–600 · Inside height 70–300 mm
- Manufacturing
- 436 × 323.2 × 111.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.417 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- F-fluteE-flute WE-flute KB-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 436 × 323.2 | – × W + T |
| Front | 436 × 111.6 | – × H + T/2 |
| Back | 436 × 111.6 | – × H + T/2 |
| Front ear ×2 | 103.6 × 103.6 | – × H − 2T |
| Back ear ×2 | 103.6 × 103.6 | – × H − 2T |
| Left end | 110 × 323.2 | H × W + T |
| Left end roll | 6.4 × 316.8 | – × W − T |
| Left end (inside) | 110 × 316.8 | H × W − T |
| Right end | 110 × 323.2 | H × W + T |
| Right end roll | 6.4 × 316.8 | – × W − T |
| Right end (inside) | 110 × 316.8 | H × W − T |
| Folded bearing surface under the grip ×2 | 12.8 × 76 | – |
| Grip return against inside wall ×2 | 12 × 76 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Hand opening widthmm
- Hand opening heightmm
- Grip return lengthmm
- Opening below rimmm
- Lock tonguescount
The hamper tray with folded hand grips family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this extra large hamper with folded grips yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
