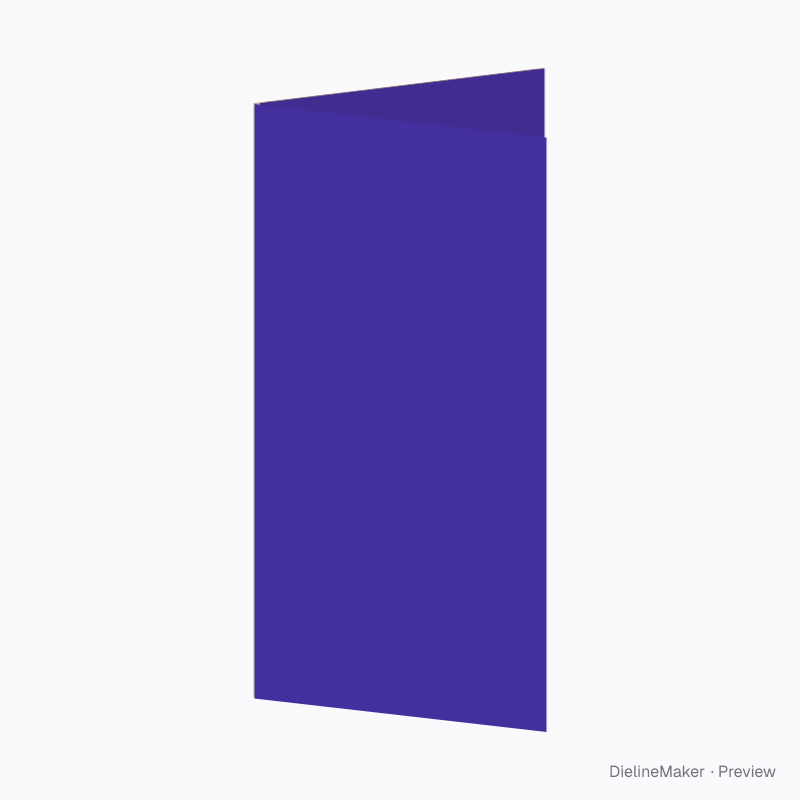

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Five-panel DL rollfold dieline
Ten pages: four nested fold-ins inside a DL cover. A ready-sized preset of the four-panel rollfold brochure — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 210 mm
Outside100 × 210 mm
Flat blank488 × 210 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Folded cover width 100 · Brochure height 210 mm
- Size range
- Folded cover width 60–210 · Brochure height 90–300 mm
- Manufacturing
- 100 × 210 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.102 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front cover | 100 × 210 | L × H |
| Back cover | 100 × 210 | L × H |
| Inner wrap panel | 98 × 210 | – × H |
| Inner wrap panel 2 | 96 × 210 | – × H |
| Innermost fold-in panel | 94 × 210 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Progressive fold allowancemm
- Cover opening°
- Panels3 options

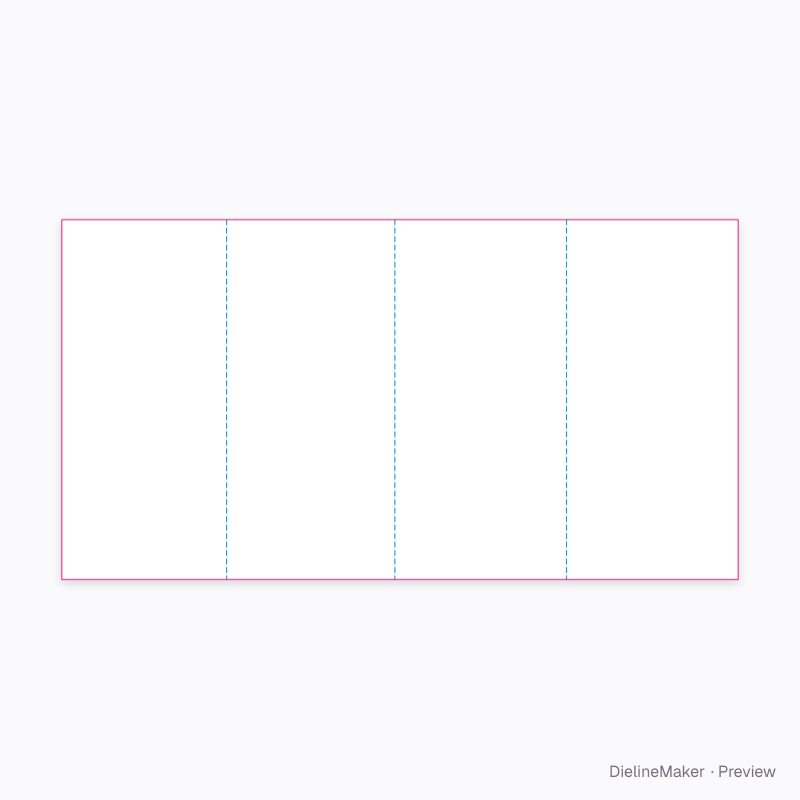

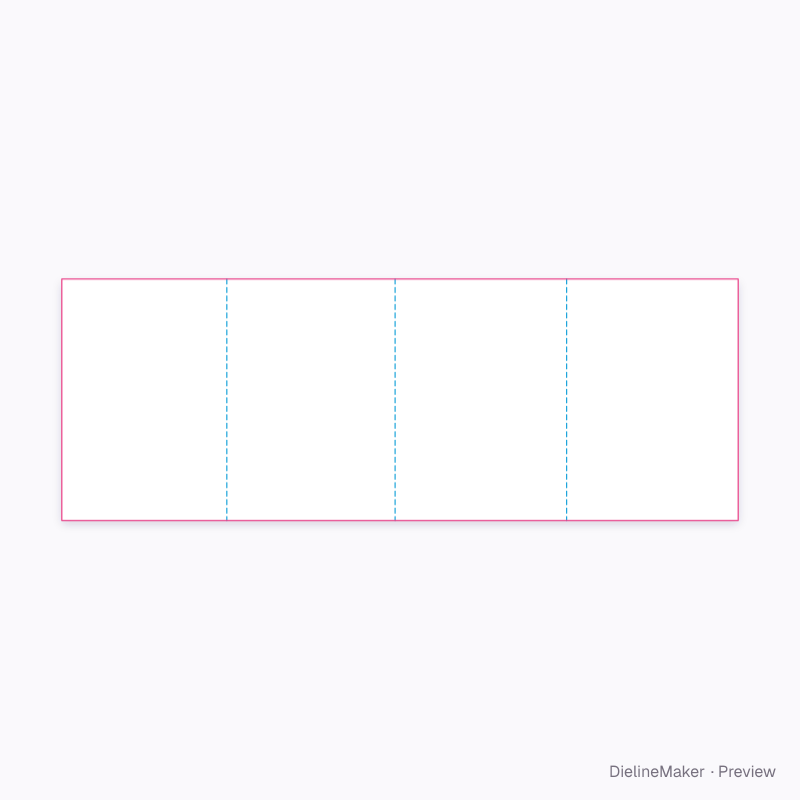

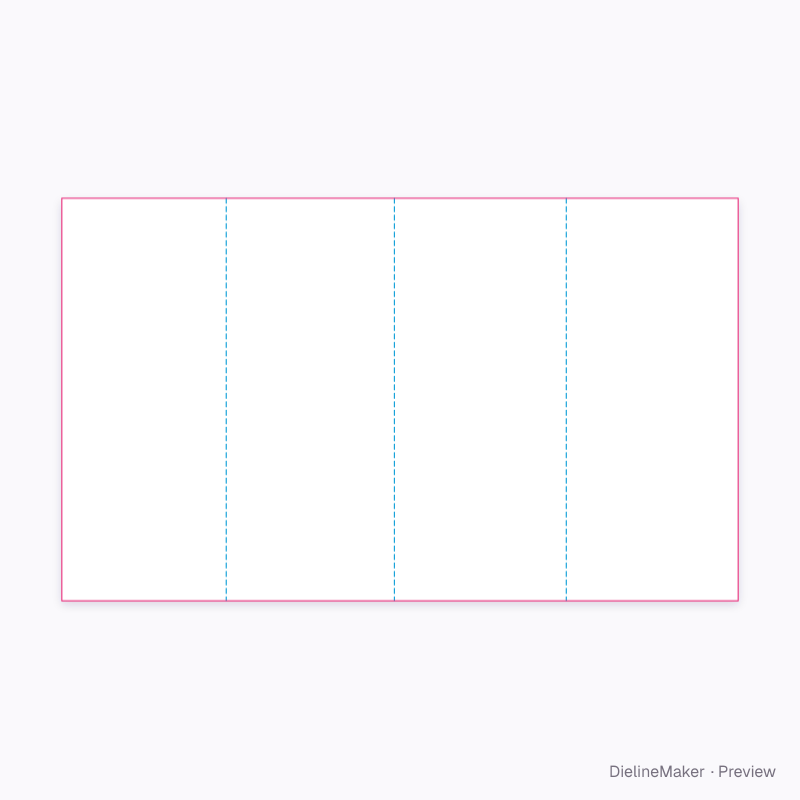

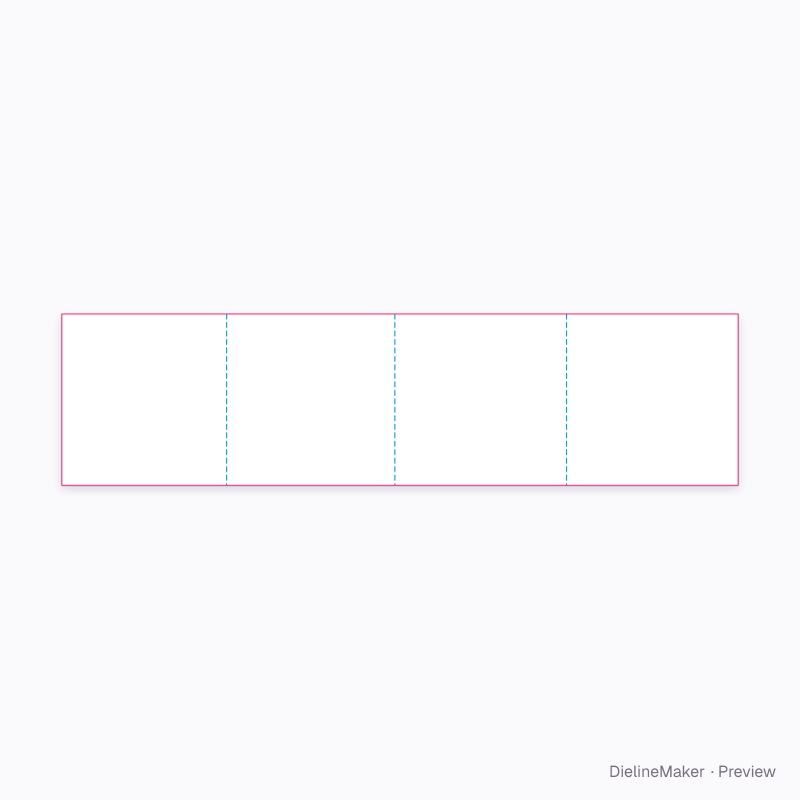

The four-panel rollfold brochure family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

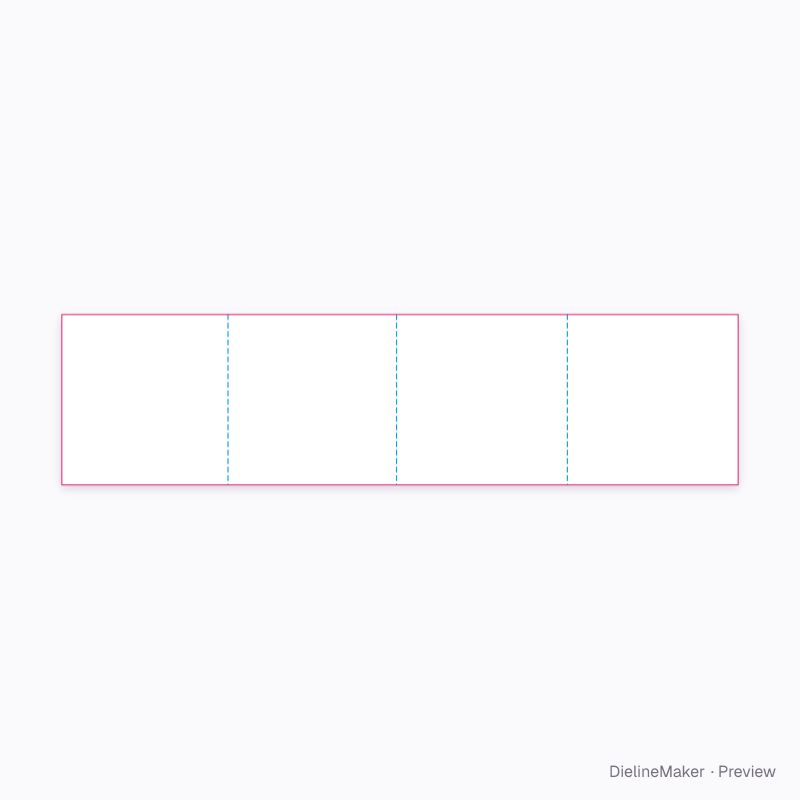

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this five-panel dl rollfold yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
