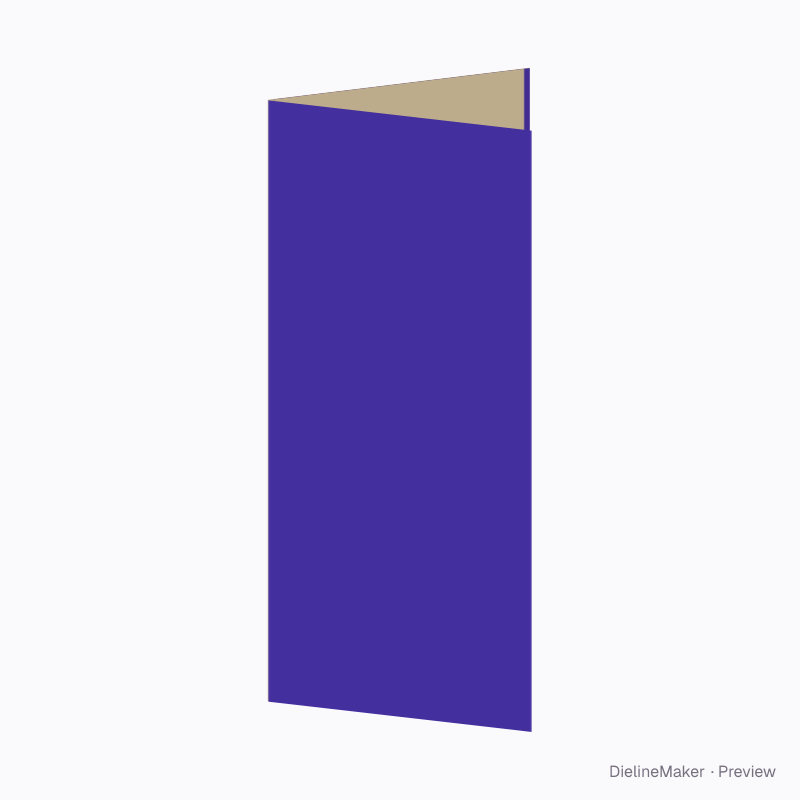

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
US eight-page rollfold dieline
Four panels wrap successively inward into an eight-page brochure. The two inner panels shorten progressively so the nested folds clear each other. All three scores and both print sides remain editable; confirm allowance and grain direction with your printer. A ready-sized preset of the four-panel rollfold brochure — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside92 × 216 mm
Outside92 × 216 mm
Flat blank362 × 216 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Folded cover width 92 · Brochure height 216 mm
- Size range
- Folded cover width 60–210 · Brochure height 90–300 mm
- Manufacturing
- 92 × 216 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.078 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 18 pt
- Good for
