8.5 in square saddle-stitch booklet dieline
215.9 × 215.9 mm finished format with editable dimensions and artwork. A ready-sized preset of the saddle-stitch booklet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside215.9 × 215.9 mm
Outside215.9 × 215.9 mm
Flat blank431.8 × 215.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Page width 215.9 · Page height 215.9 mm
- Size range
- Page width 75–450 · Page height 100–650 mm
- Manufacturing
- 215.9 × 215.9 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Outer sheet / cover, Inner sheet 2
- Board area
- 0.186 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

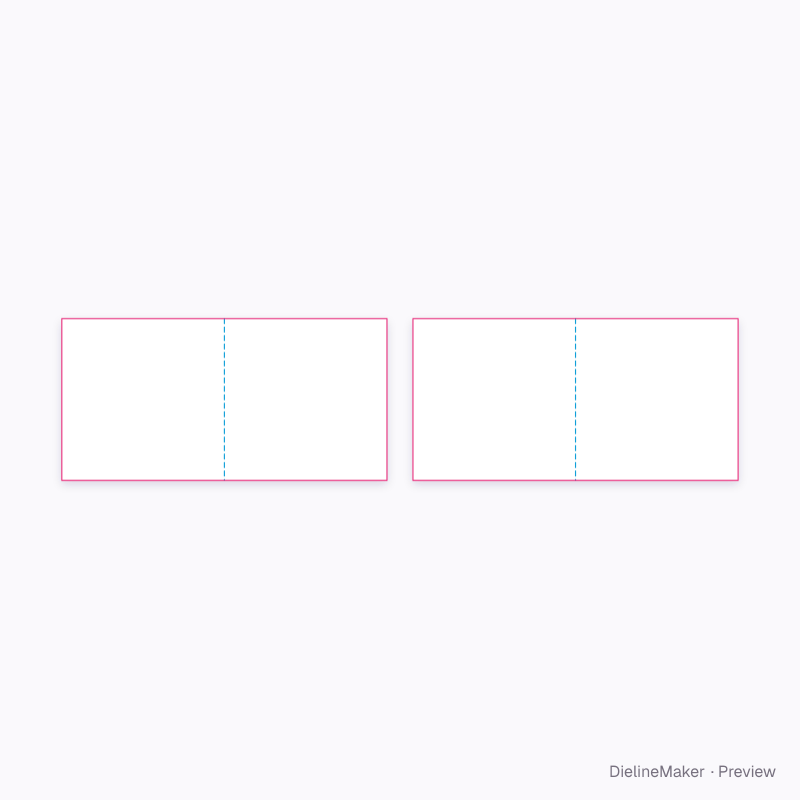

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Sheets / pages6 options
- Stitching3 options
