DM-SEAL-TEAR-01Tuck end
Seal-end carton with tear strip dieline
A perforated tear band crosses the left, front and right walls; the back remains intact. A ready-sized preset of the seal end carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 60 × 180 mm
Outside121 × 61 × 181 mm
Flat blank373.5 × 300.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SEAL-TEAR-01
- Inside size
- Length 120 · Width 60 · Height 180 mm
- Size range
- Length 20–400 · Width 12–200 · Height 20–500 mm
- Manufacturing
- 120.5 × 60.5 × 180.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.102 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300GD2 350FBB 400Kraft 350Black 350F-fluteSBS 18 pt
- Good for

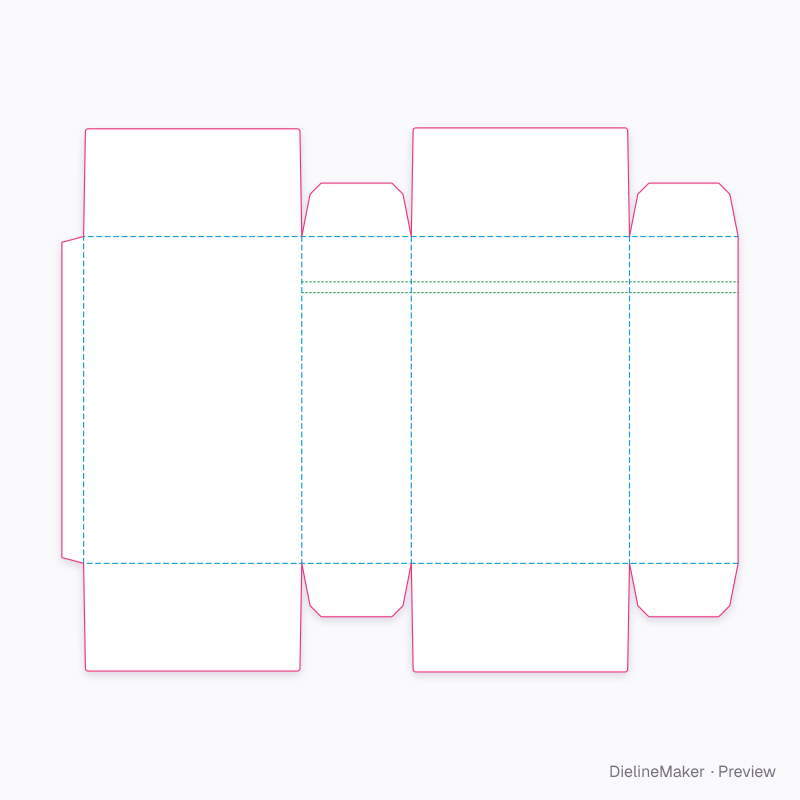

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SEAL-TEAR-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 120.5 × 180.5 | L + T × H + T |
| Left side | 60.5 × 180.5 | W + T × H + T |
| Back | 120.5 × 180.5 | L + T × H + T |
| Right side | 60 × 180.5 | W × H + T |
| Glue flap | 12 × 180.5 | – × H + T |
| Dust flap ×2 | 60.5 × 29.5 | W + T × – |
| Dust flap ×2 | 60 × 29.5 | W × – |
| Inner seal flap ×2 | 120.5 × 59.5 | L + T × W − T |
| Top seal flap | 120.5 × 60 | L + T × W |
| Bottom seal flap | 120.5 × 60 | L + T × W |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Top end2 options
- Outer flap extramm
- Dust flap depthmm
- Tear stripon / off
- Tear strip positionmm
- Tear strip widthmm
- Rim catchon / off
- Windowon / off
