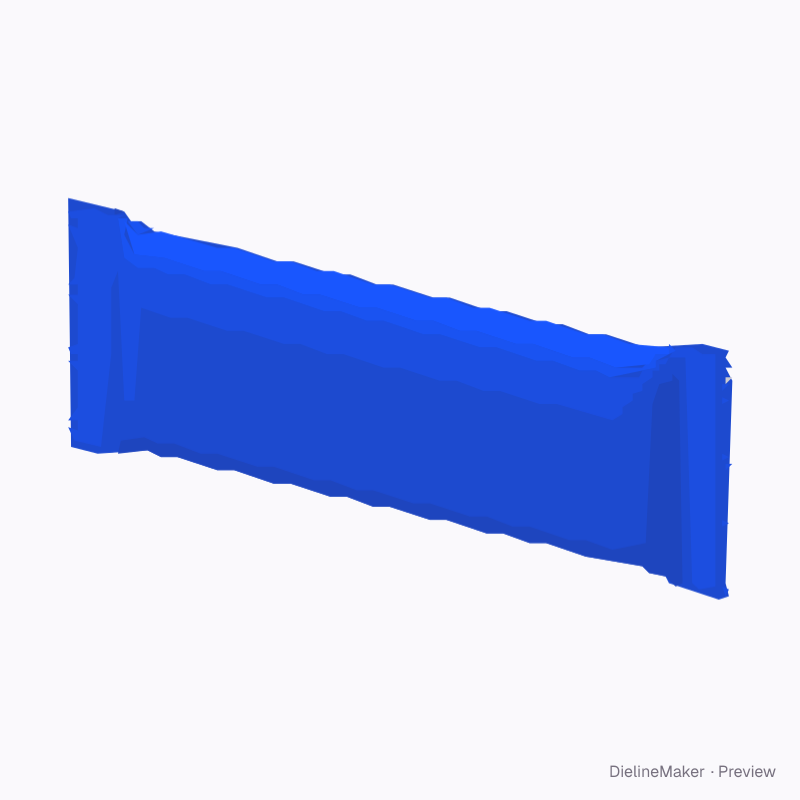

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Protein bar wrapper dieline
60 g bar in a metallised flow wrap: back fin seal, crimped serrated ends. A ready-sized preset of the flow wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside125 × 40 × 15 mm
Outside125 × 40 × 15 mm
Flat blank161.5 × 133 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Product length 125 · Product width 40 · Product height 15 mm
- Size range
- Product length 30–400 · Product width 8–250 · Product height 3–150 mm
- Manufacturing
- 125 × 40 × 15 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.021 m² · about 30 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PEKraft/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for Metallised PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Fin seal (inner) | 160 × 10 | – |
| Back (upper half) | 160 × 20 | – |
| Top | 160 × 16.5 | – |
| Front | 161.5 × 40 | – × W |
| Bottom | 160 × 16.5 | – |
| Back (lower half) | 160 × 20 | – |
| Fin seal (outer) | 160 × 10 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Longitudinal seal2 options
- Long seal widthmm
- End sealsmm
- Product shape2 options
- Orientation2 options
- End cut2 options
