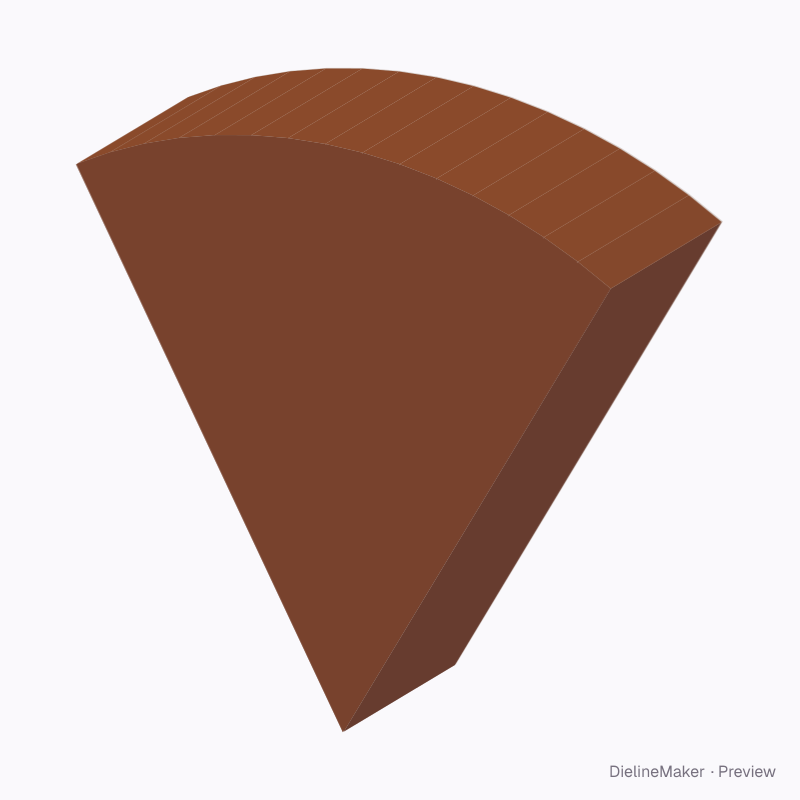

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SECTOR-FAN-BOX-01Shapes
Sector fan box dieline
Two circular-sector faces joined by a band that follows the curved arc and both radial edges, with an optional inner arc for a fan segment. Opens with a tuck lid on one radial side, or glue it closed. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 50 mm
Outside150.5 × 51 mm
Flat blank203.8 × 175.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SECTOR-FAN-BOX-01
- Inside size
- Radius 150 · Depth 50 mm
- Size range
- Radius 40–400 · Depth 15–200 mm
- Manufacturing
- 150.3 × 50 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Front sector face, Back sector face, Arc and radial band
- Board area
- 0.053 m² · about 20 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SECTOR-FAN-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Sector faceFront sector face | 150.2 × 150.2 | L + T/2 × – |
| Radial lidFront sector face | 50.5 × 150.3 | H + T × L + T/2 |
| Lid tuckFront sector face | 15 × 150.3 | – × L + T/2 |
| Sector faceBack sector face | 150.2 × 150.2 | L + T/2 × – |
| Base wall ×15Arc and radial band | 10.5 × 50 | – × H |
| Cap bonding tab ×2Arc and radial band | 10.5 × 6.9 | – |
| Cap bonding tab ×13Arc and radial band | 10.5 × 8 | – |
| Base wallArc and radial band | 150.2 × 50 | L + T/2 × H |
| Cap bonding tabArc and radial band | 150.2 × 8 | L + T/2 × – |
| Back-face bonding tab ×15Arc and radial band | 10.5 × 8 | – |
| Back-face bonding tabArc and radial band | 150.2 × 8 | L + T/2 × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Sector angle°
- Inner radiusmm
- Closure2 options
- Lid tuck depthmm
- Face bonding tabsmm
Ready-sized sector fan box presets
The same structure with sizes, boards and options set for a use.

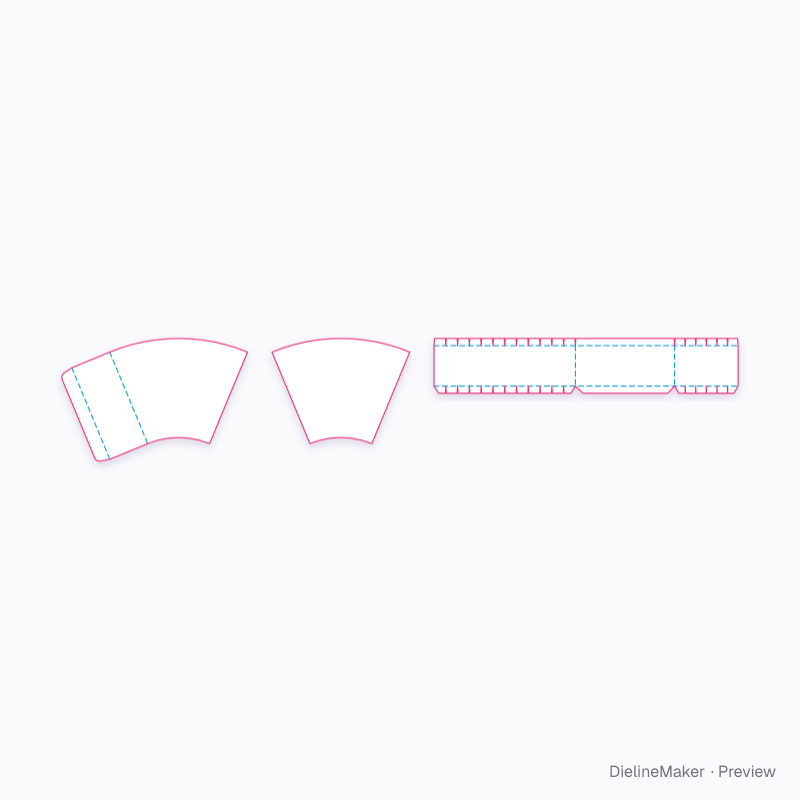

- Preset

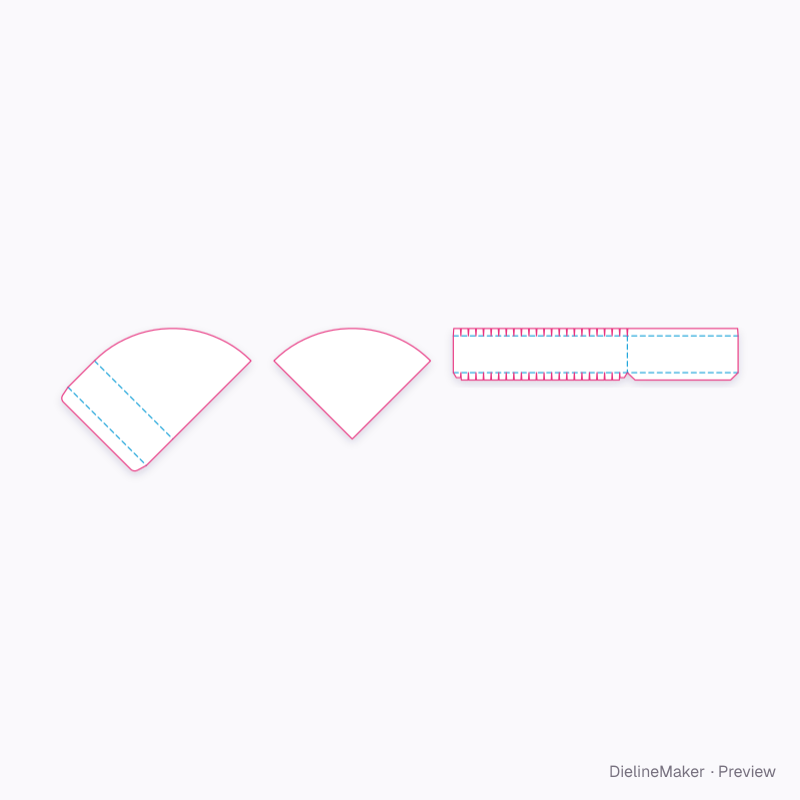

Preset

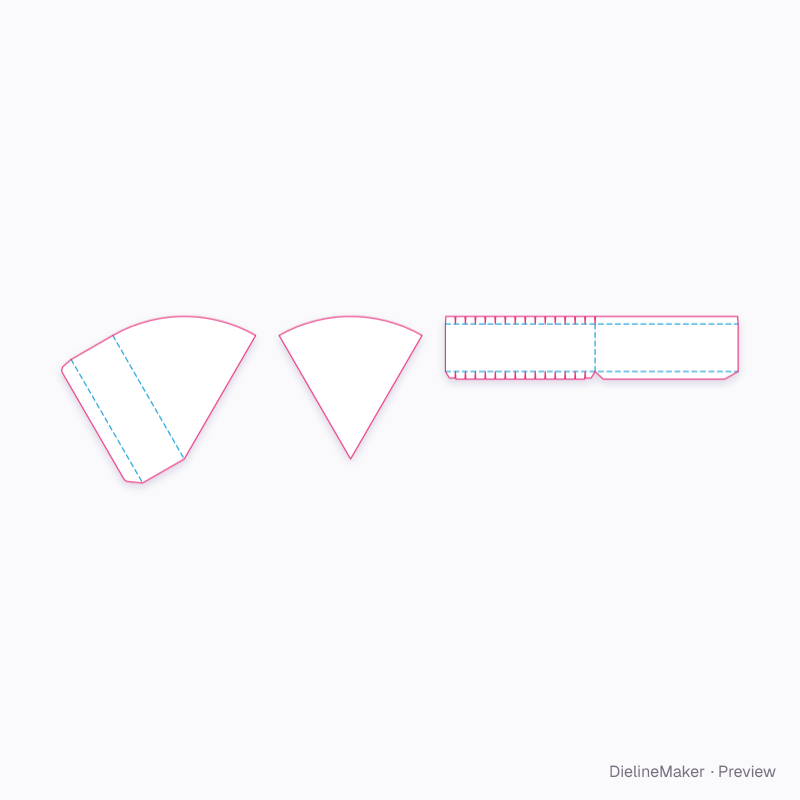

Preset
