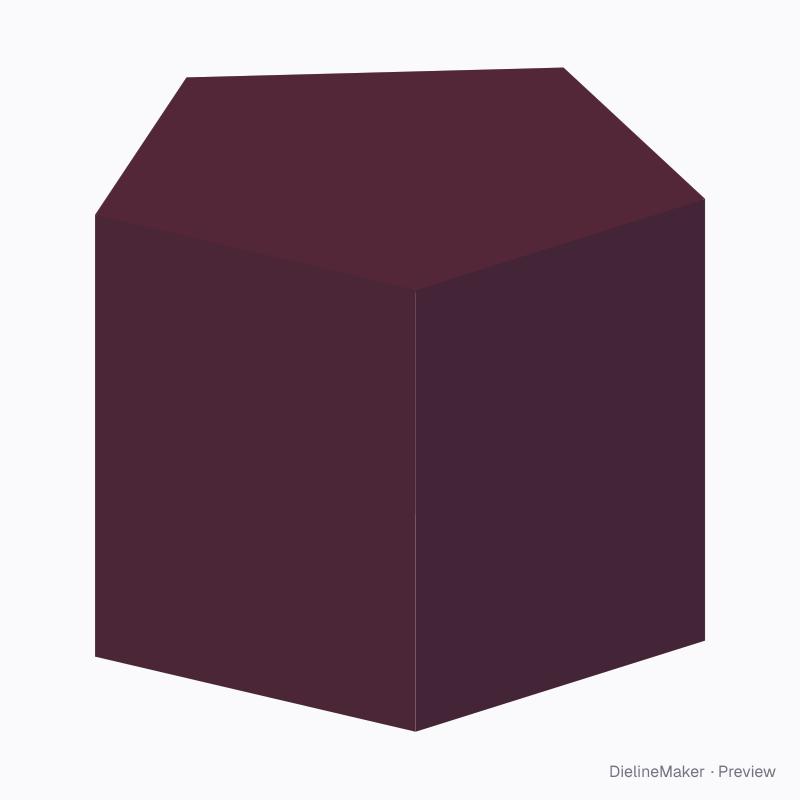

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Pentagon box dieline
A five-sided tube with pentagon lids: the top tucks into the front, the bottom into the back. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 70 mm
Outside91 × 71 mm
Flat blank296.7 × 264.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 90 · Height 70 mm
- Size range
- Width 40–300 · Height 20–400 mm
- Manufacturing
- 90.5 × 70.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.040 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back left | 56 × 70.5 | side × H + T |
| Left | 56 × 70.5 | side × H + T |
| Front | 56 × 70.5 | side × H + T |
| Right | 56 × 70.5 | side × H + T |
| Back right | 55.5 × 70.5 | side − T × H + T |
| Glue flap | 12 × 70.5 | – × H + T |
| Top lid | 56 × 86.2 | – |
| Tuck ×2 | 55 × 18 | – |
| Top dust flap | 54.9 × 36 | – |
| Top dust flap | 56 × 36 | – |
| Top dust flap | 55.5 × 36 | – |
| Bottom lid | 56 × 86.2 | – |
| Bottom dust flap ×2 | 54.9 × 36 | – |
| Bottom dust flap | 55.5 × 36 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
Ready-sized pentagon box presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pentagon box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
