Preset

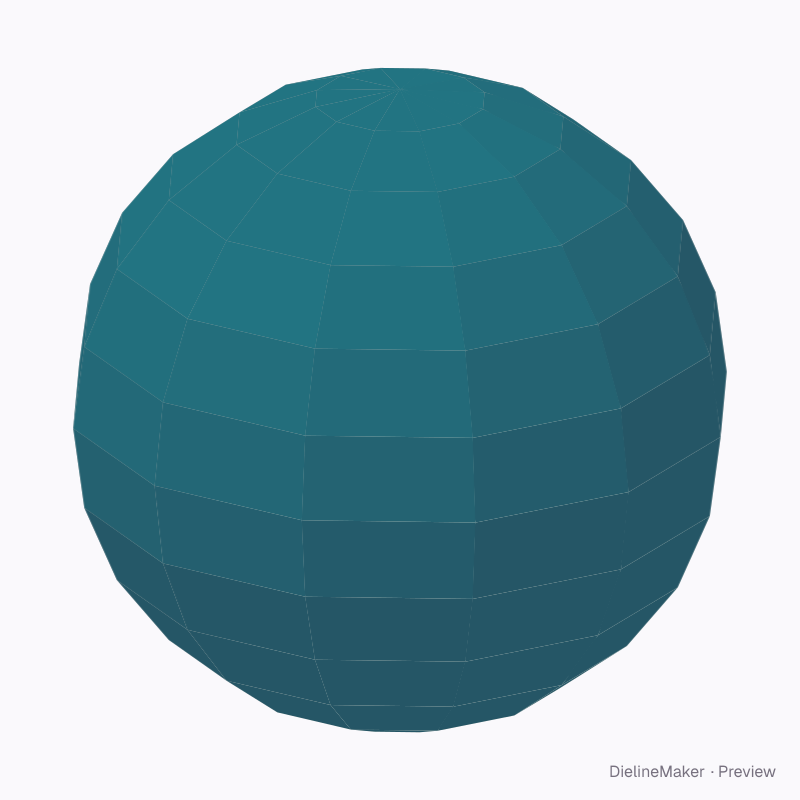

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Segmented paper sphere dieline
A faceted sphere assembled from identical gores with scored latitude rings and side bonding tabs. This is a segmented approximation of a sphere; each exported facet matches the folded preview. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 160 × 160 mm
OutsideØ 160.2 × 160.2 mm
Flat blank45.7 × 246.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Equatorial vertex diameter 160 · Polar vertex diameter 160 mm
- Size range
- Equatorial vertex diameter 30–600 · Polar vertex diameter 30–600 mm
- Manufacturing
- Ø 160 × 160 mm score to score · inside vs outside sizes
- Parts
- 12 parts — Sphere gore 1 of 12, Sphere gore 2 of 12, Sphere gore 3 of 12, Sphere gore 4 of 12, Sphere gore 5 of 12, Sphere gore 6 of 12, Sphere gore 7 of 12, Sphere gore 8 of 12, Sphere gore 9 of 12, Sphere gore 10 of 12, Sphere gore 11 of 12, Sphere gore 12 of 12
- Board area
- 0.085 m² · about 60 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Gore segmentscount
- Latitude bandscount
- Right glue flapmm
- Left glue flapmm
Ready-sized segmented paper sphere presets
The same structure with sizes, boards and options set for a use.

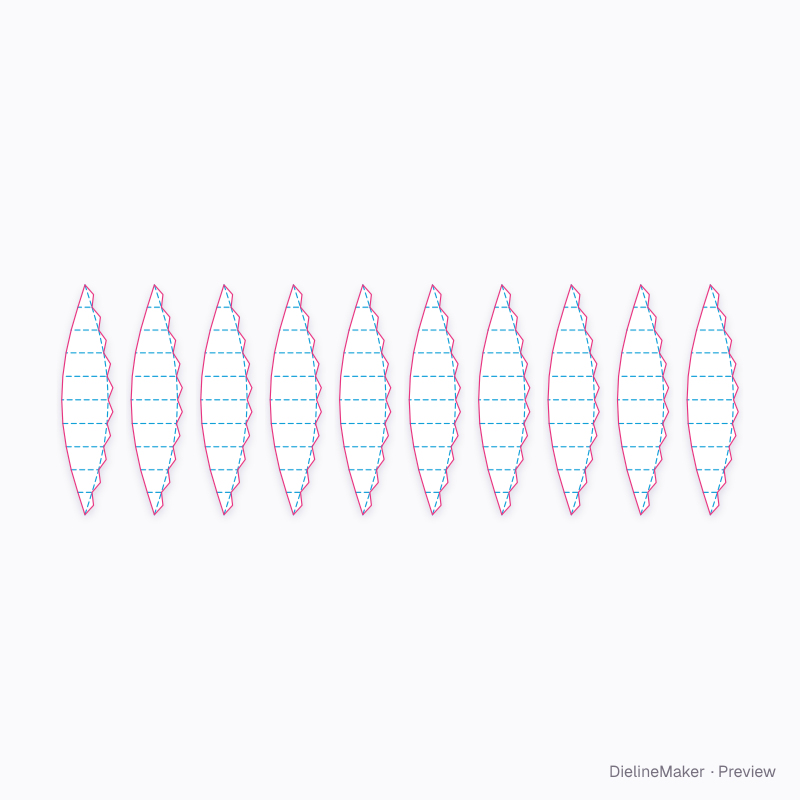

- Preset

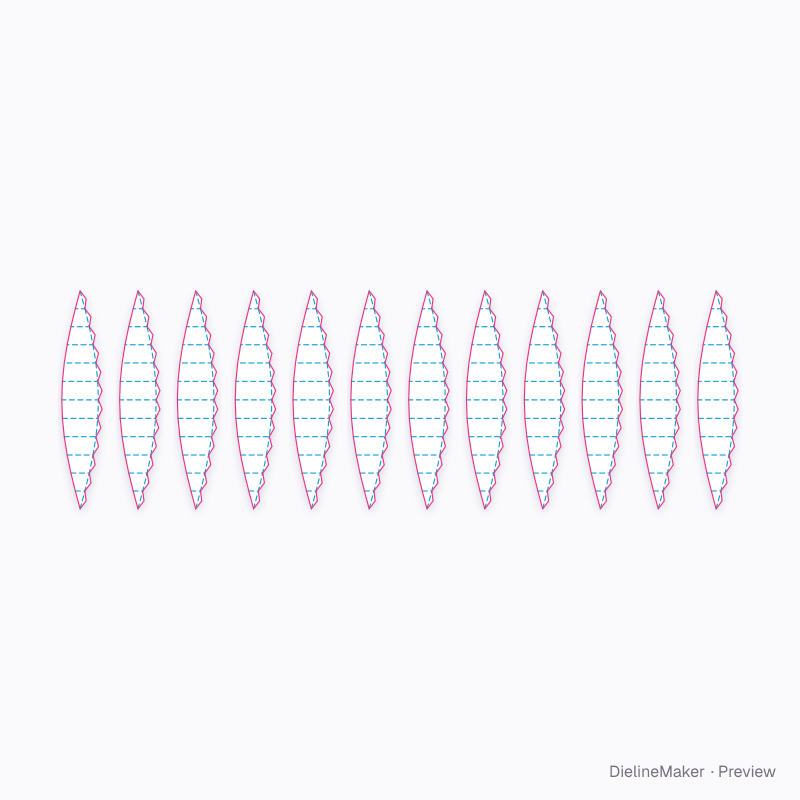

Preset
Preset

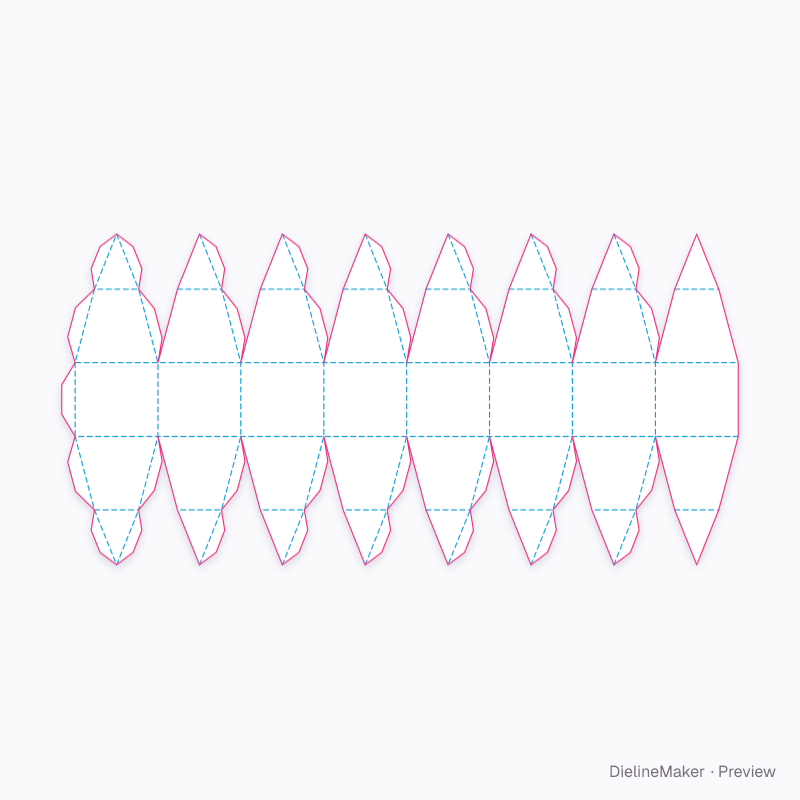

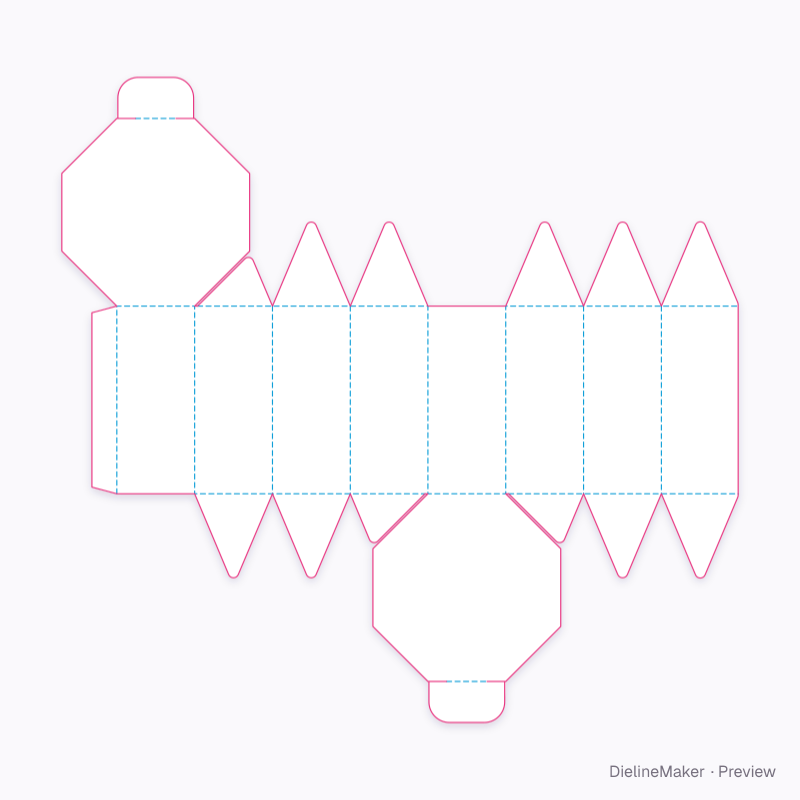

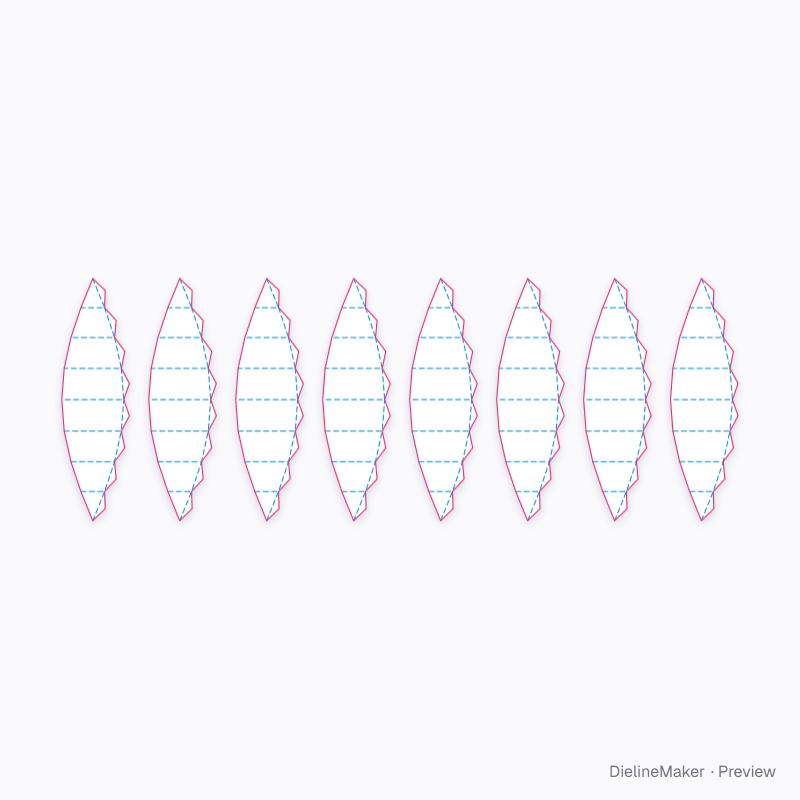

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this segmented paper sphere yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
