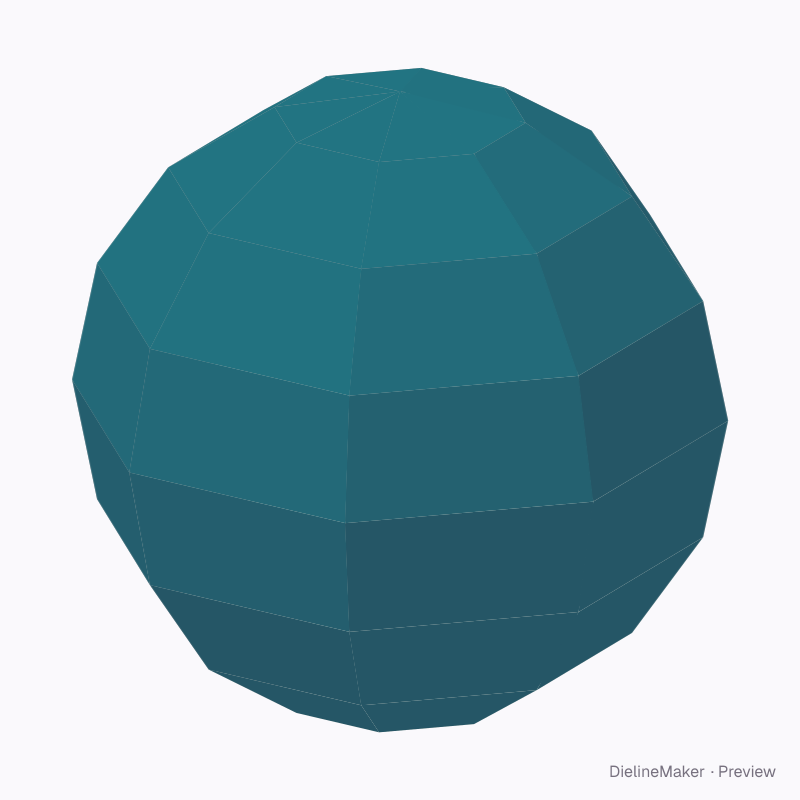

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Eight-gore faceted ball dieline
A faceted sphere assembled from identical gores with scored latitude rings and side bonding tabs. This is a segmented approximation of a sphere; each exported facet matches the folded preview. A ready-sized preset of the segmented paper sphere — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 120 × 120 mm
OutsideØ 120.2 × 120.2 mm
Flat blank50.2 × 180.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Equatorial vertex diameter 120 · Polar vertex diameter 120 mm
- Size range
- Equatorial vertex diameter 30–600 · Polar vertex diameter 30–600 mm
- Manufacturing
- Ø 120 × 120 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Sphere gore 1 of 8, Sphere gore 2 of 8, Sphere gore 3 of 8, Sphere gore 4 of 8, Sphere gore 5 of 8, Sphere gore 6 of 8, Sphere gore 7 of 8, Sphere gore 8 of 8
- Board area
- 0.046 m² · about 75 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Gore segmentscount
- Latitude bandscount
- Right glue flapmm
- Left glue flapmm
The segmented paper sphere family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this eight-gore faceted ball yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
