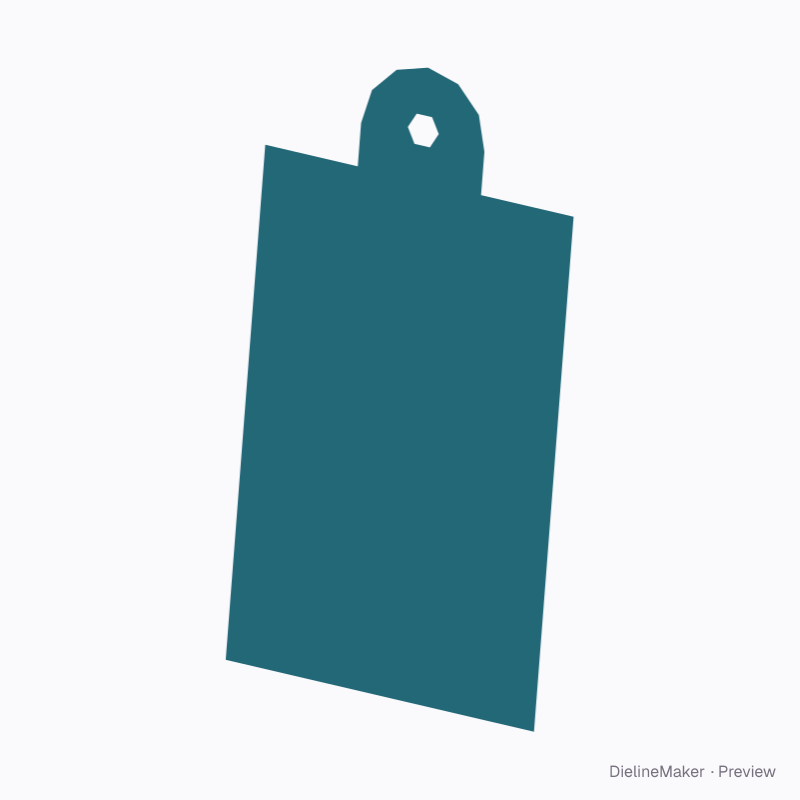

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SHAPED-TAG-01Cards & tags
Header tab tag dieline
Flat swing tags, cards, bookmarks and labels in further die-cut outlines: clipped or rounded single and diagonal corners, concave corners or sides, a narrow header tab, V, fishtail and side notches, a concave top, a scalloped foot or a hexagon, with an optional string hole. A ready-sized preset of the shaped tag & label outlines — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside50 × 90 mm
Outside50 × 90 mm
Flat blank50 × 90 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SHAPED-TAG-01
- Inside size
- Width 50 · Height 90 mm
- Size range
- Width 15–250 · Height 15–300 mm
- Manufacturing
- 50 × 90 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.004 m² · about 126 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 300PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Outline12 options
- Corner / notch sizemm
- Second sizemm
- String holeon / off
- Hole sizemm
- Hole from topmm
- Hole from leftmm
The shaped tag & label outlines family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this header tab tag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
