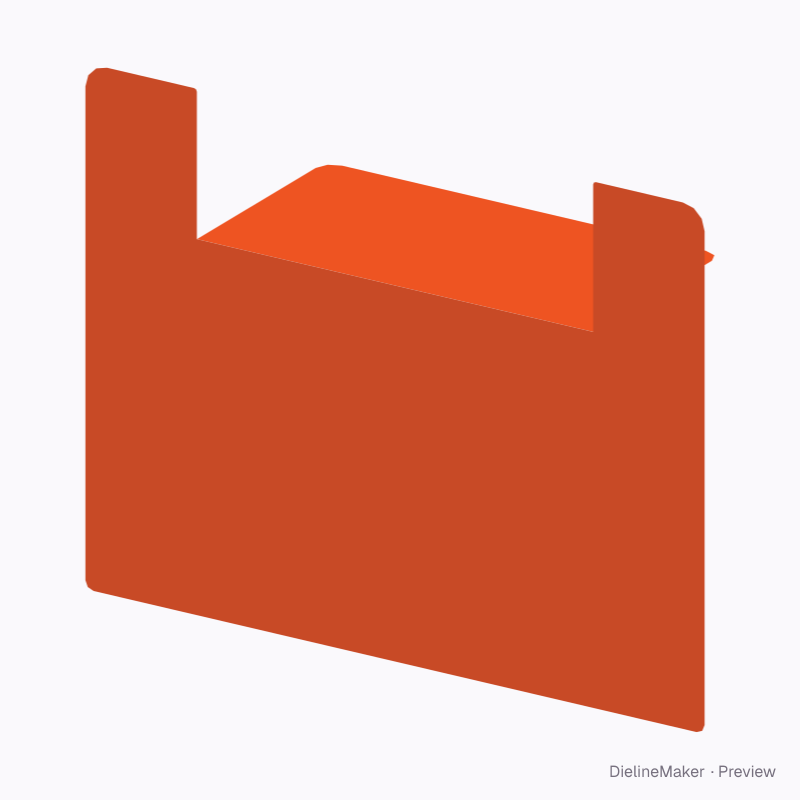

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Shelf talker with ears dieline
A 9 in fold-over talker whose die-cut ears stand up above the shelf line. A ready-sized preset of the shelf talker — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside228.6 × 127 mm
Outside228.6 × 127 mm
Flat blank228.6 × 203.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 228.6 · Message height 127 mm
- Size range
- Width 50–1250 · Message height 25–300 mm
- Manufacturing
- 228.6 × 127 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.044 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Message | 228.6 × 177.8 | W × H |
| Mounting flap | 146.3 × 76.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Mounting3 options
- Flap depthmm
- Ear heightmm
- Corner radiusmm
