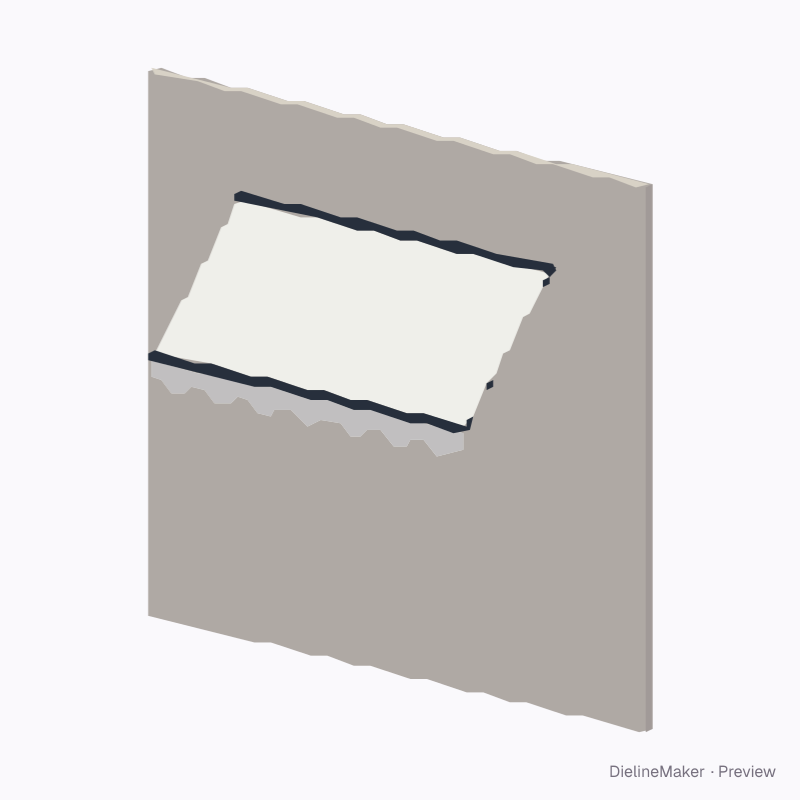

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-AWNING-01Apparel & merchandise
Fixed awning with side cheeks decoration template
A wall-mounted shop awning — retractable with folding arms, fixed with side cheeks, or dome — with a straight, scalloped or wave valance. A ready-sized preset of the shop awning — adjust the object dimensions and decoration area to preview your artwork at size.
Object size2000 × 900 × 2600 mm
Artwork area2000 × 1098.7 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-AWNING-01
- Object size
- Width 2000 · Projection 900 · Mounting height 2600 mm
- Size range
- Width 800–10000 · Projection 500–4500 · Mounting height 2000–5000 mm
- Parts
- 4 parts — Canopy, Valance, Left cheek, Right cheek
- Artwork area
- 3.093 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Awning3 options
