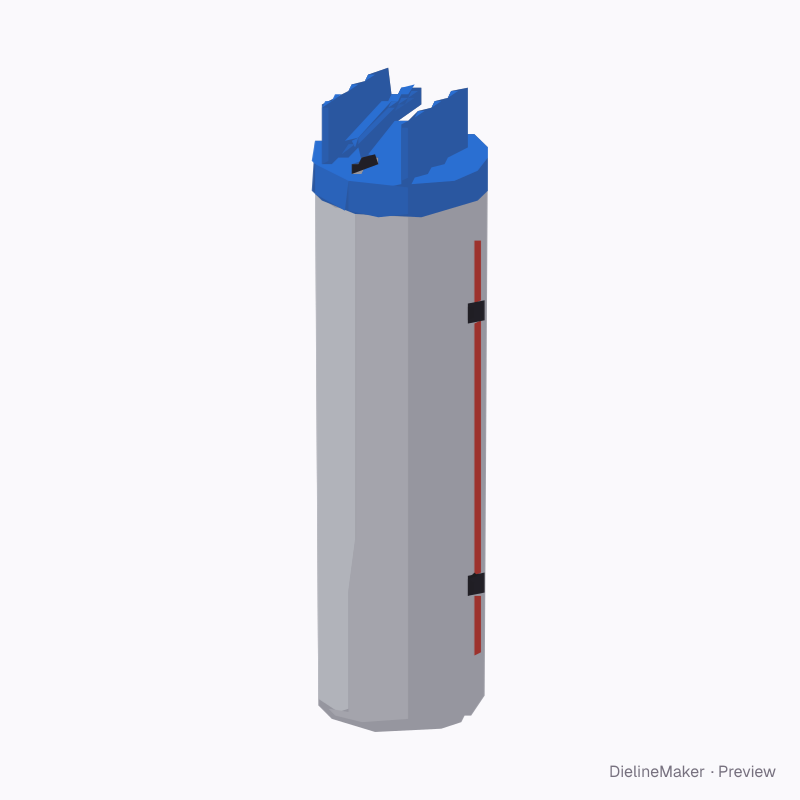

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-AEROSHROUD-01Labels
Lubricant spray with lever and straw dieline
An aerosol can under a moulded actuator shroud: domed with a finger window, or a long lever with side wings and a straw. A ready-sized preset of the aerosol with actuator shroud — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 52 × 180 mm
OutsideØ 52 × 180 mm
Flat blank165.2 × 166 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-AEROSHROUD-01
- Inside size
- Can diameter 52 · Can height 180 mm
- Size range
- Can diameter 35–75 · Can height 90–300 mm
- Manufacturing
- Ø 52 × 180 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.027 m² · about 20 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Shroud2 options
- Shroud6 options
- Can3 options
The aerosol with actuator shroud family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this lubricant spray with lever and straw yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
