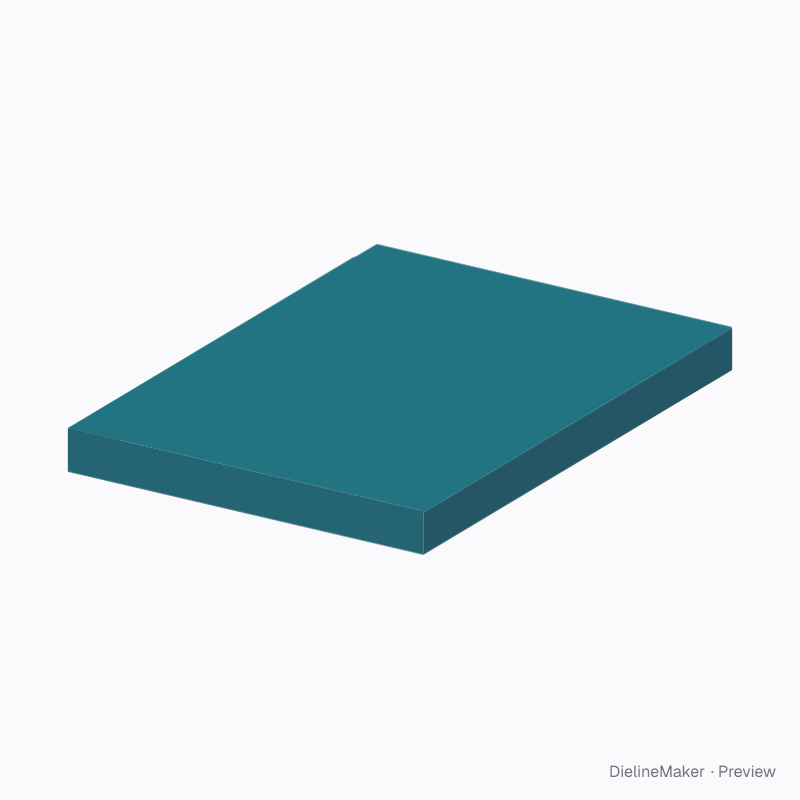

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SLOT-FOLDER-01Cards & tags
Shallow document case dieline
25 mm deep case: retaining walls, a full lid whose tab locks into a slot with a thumb cut. A ready-sized preset of the slot-lock document folder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside230 × 320 × 25 mm
Outside230.5 × 320.5 × 27 mm
Flat blank400.5 × 767 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SLOT-FOLDER-01
- Inside size
- Width 230 · Depth 320 · Capacity 25 mm
- Size range
- Width 60–500 · Depth 60–450 · Capacity 0–60 mm
- Manufacturing
- 230.5 × 320.5 × 25 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.224 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300GD2 350E-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SLOT-FOLDER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 230.5 × 320.5 | L + T × W + T |
| Cover capacity strip | 230.5 × 26 | L + T × H + 2T |
| Front capacity strip | 230.5 × 25.5 | L + T × H + T |
| Cover | 230.5 × 315 | L + T × – |
| Front flap | 230.5 × 80 | L + T × – |
| Left wall | 25 × 320.5 | H × W + T |
| Left retaining flap | 60 × 319.5 | – × W − T |
| Right wall | 25 × 320.5 | H × W + T |
| Right retaining flap | 60 × 319.5 | – × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 12 options; the template and 3D preview follow each change.
- Sides3 options
- Tongue4 options
- Tongue on2 options
- Cover depthmm
- Front flap depthmm
- Tongue widthmm
- Tongue depthmm
- Slot shape2 options
- Thumb cuton / off
- Front thumb notchon / off
- Side flap depthmm
- Side flap shape3 options
