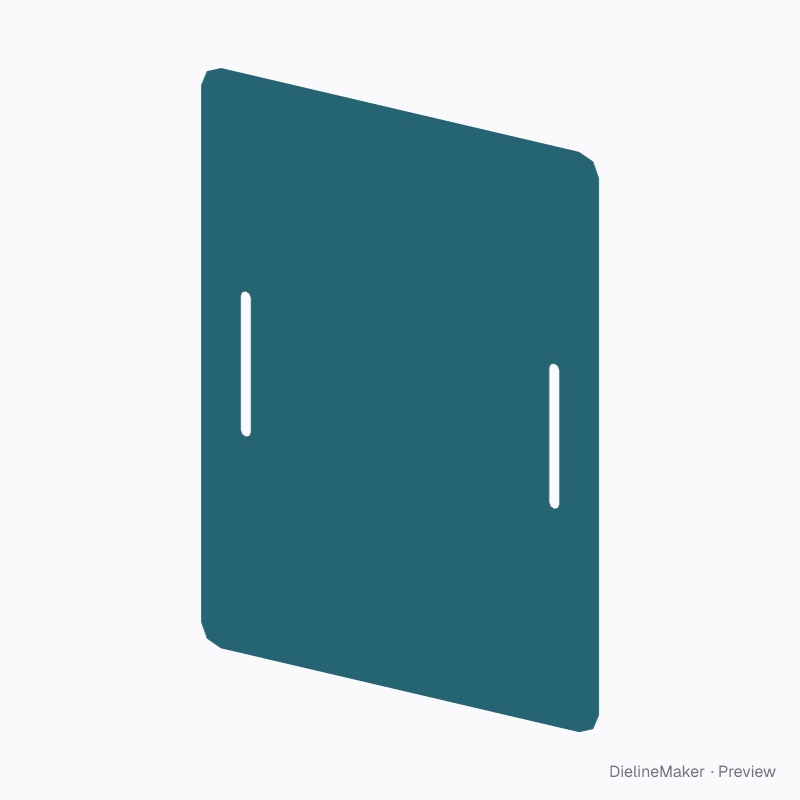

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SLOTTED-CARD-01Cards & tags
Band card with two side slots dieline
A flat card with two parallel slots for a strap or band, or two low slots for mounting on a display. A ready-sized preset of the slotted mounting card — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside120 × 160 mm
Outside121 × 161 mm
Flat blank120 × 160 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SLOTTED-CARD-01
- Inside size
- Width 120 · Height 160 mm
- Size range
- Width 30–600 · Height 30–600 mm
- Manufacturing
- 120.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.019 m² · about 30 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Slots2 options
- Slot lengthmm
- Slot widthmm
- Corner radiusmm
The slotted mounting card family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this band card with two side slots yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
