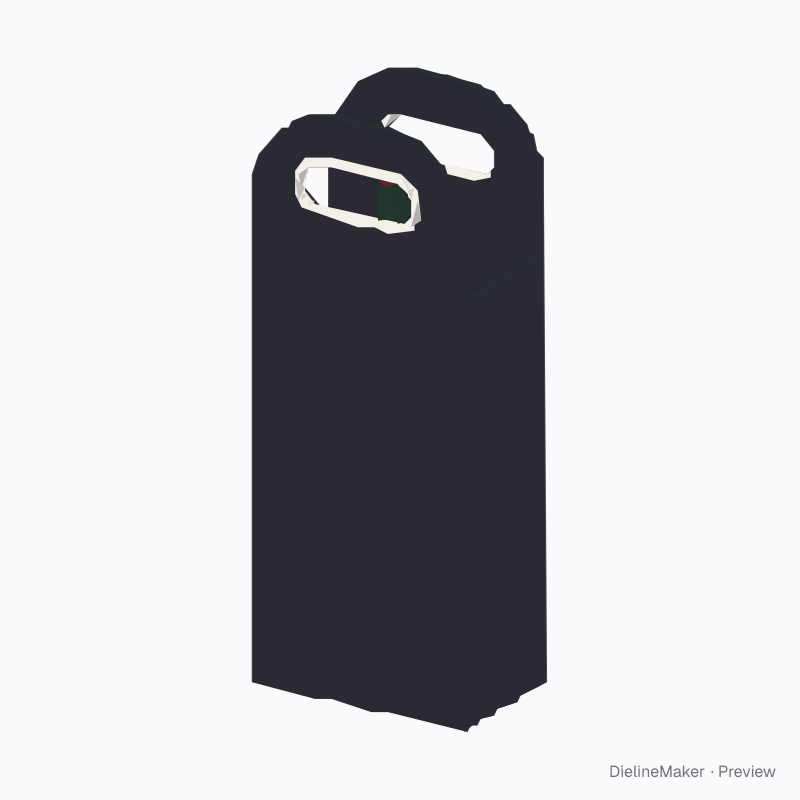

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WINEBAG-01Apparel & merchandise
Short bottle carrier decoration template
An elongated soft bottle sleeve whose front and back panels rise into rounded carrying panels with bound oval hand openings. Print the front and back panels. A ready-sized preset of the soft wine bottle carrier with die-cut handle — adjust the object dimensions and decoration area to preview your artwork at size.
Object size120 × 75 × 300 mm
Artwork area120 × 300 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-WINEBAG-01
- Object size
- Panel width 120 · Gusset depth 75 · Overall height (with handle) 300 mm
- Size range
- Panel width 80–260 · Gusset depth 40–160 · Overall height (with handle) 200–600 mm
- Parts
- 2 parts — Front panel, Back panel
- Artwork area
- 0.070 m²
- Good for

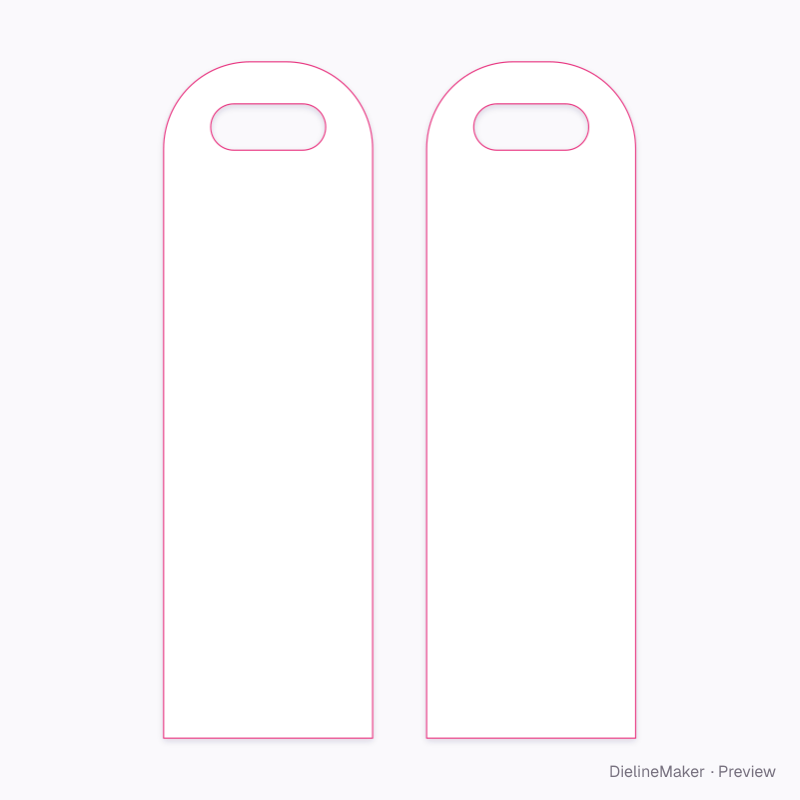

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Handle panel heightmm
- Bottle insideon / off
- Opening binding4 options

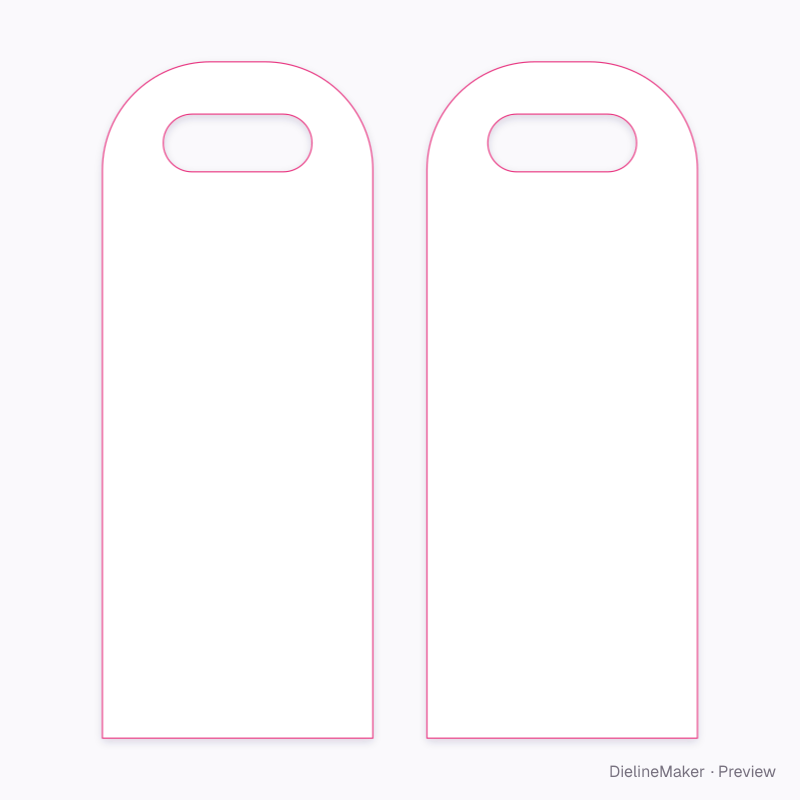

The soft wine bottle carrier with die-cut handle family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this short bottle carrier yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
