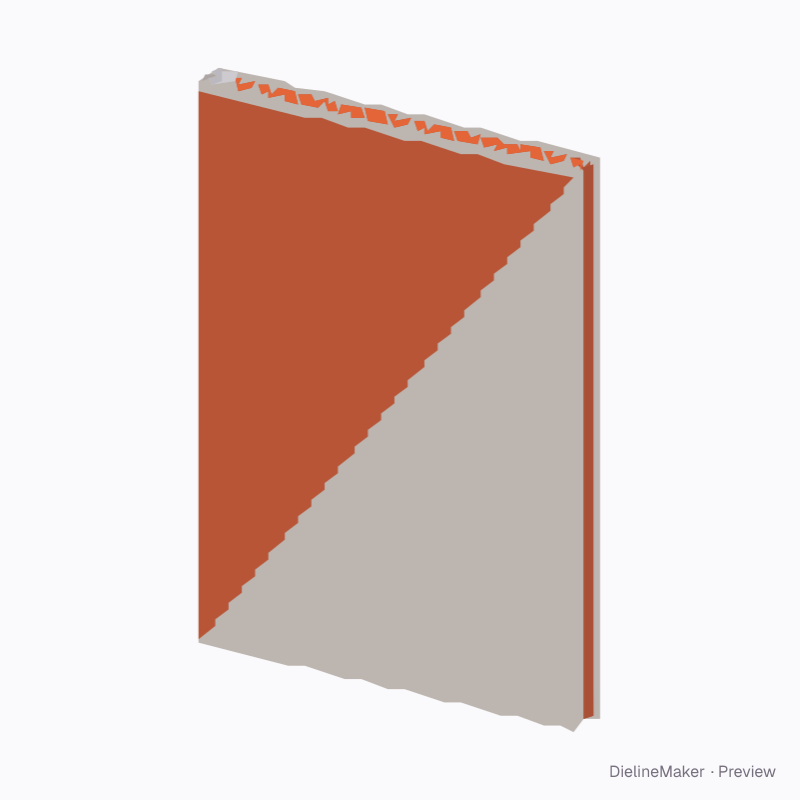

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Concealed-coil notebook dieline
Punched front and back covers around an inset page block, bound with one continuous formed wire spiral. Cover and page-punch templates export separately. Confirm coil diameter, pitch and punch tooling with your bindery; the page-block reference is not interior-page imposition. A ready-sized preset of the spiral notebook — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside148 × 10 × 210 mm
Outside148 × 10 × 210 mm
Flat blank195.5 × 210 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Cover width 148 · Page-block thickness 10 · Cover height 210 mm
- Size range
- Cover width 90–300 · Page-block thickness 4–20 · Cover height 120–360 mm
- Manufacturing
- 148 × 10 × 210 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Concealed-coil wrap cover, Back cover with punches, Page-block trim + punch reference
- Board area
- 0.102 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front coverConcealed-coil wrap cover | 156 × 210 | – × H |
| Printed spineConcealed-coil wrap cover | 13.5 × 210 | – × H |
| Punched binding stripConcealed-coil wrap cover | 26 × 210 | – × H |
| Back cover with punchesBack cover with punches | 148 × 210 | L × H |
| Page-block trim + punch referencePage-block trim + punch reference | 146 × 206 | – |
