Parametric structureCards & tags
Round spiral-bound menu dieline
Punched front and back covers around an inset page block, bound with one continuous formed wire spiral. Cover and page-punch templates export separately. Confirm coil diameter, pitch and punch tooling with your bindery; the page-block reference is not interior-page imposition. A ready-sized preset of the spiral notebook — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside260 × 6 × 280 mm
Outside260 × 6 × 280 mm
Flat blank260 × 280 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Cover width 260 · Page-block thickness 6 · Cover height 280 mm
- Size range
- Cover width 90–300 · Page-block thickness 4–20 · Cover height 120–360 mm
- Manufacturing
- 260 × 6 × 280 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Front cover with punches, Back cover with punches, Page-block trim + punch reference
- Board area
- 0.177 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300Kraft 350SBS 18 pt
- Good for

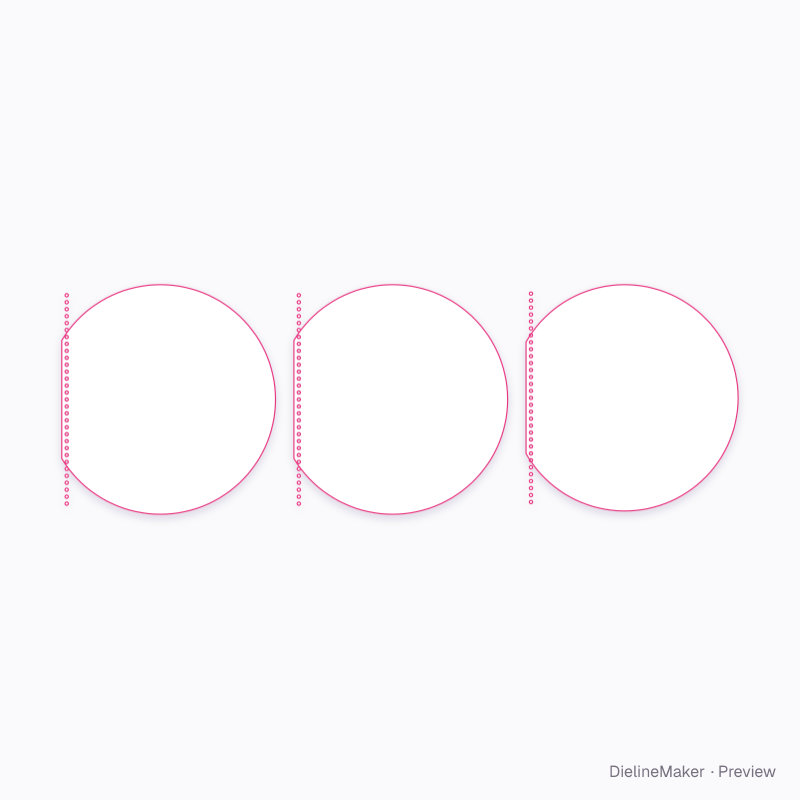

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Punch pitchmm
- Punch diametermm
- Binding3 options
- Page shape2 options
- Concealed-coil coveron / off
- Index-tab dividerscount
- Tab projectionmm

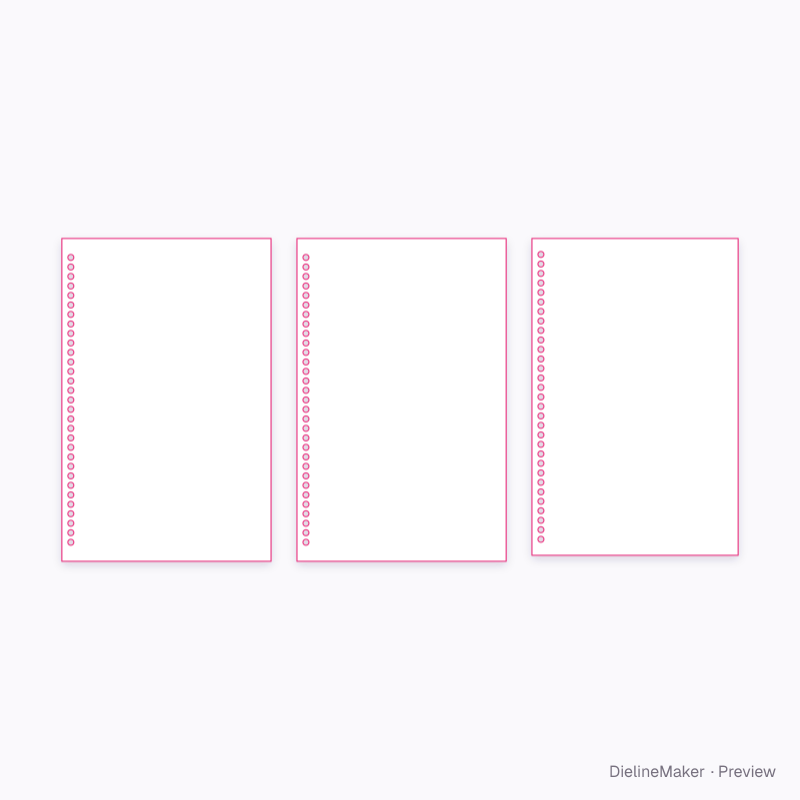

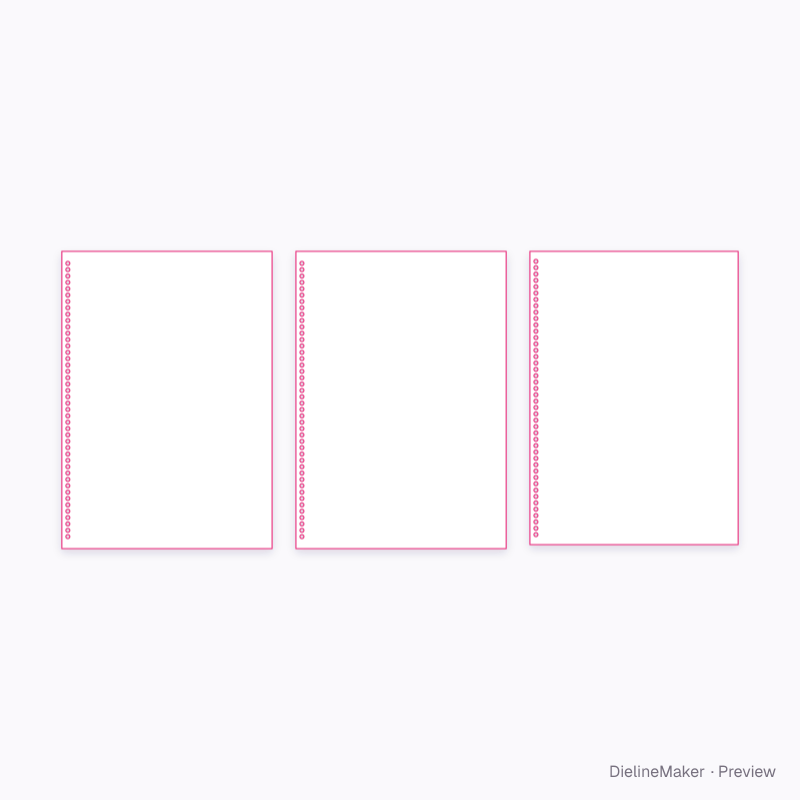

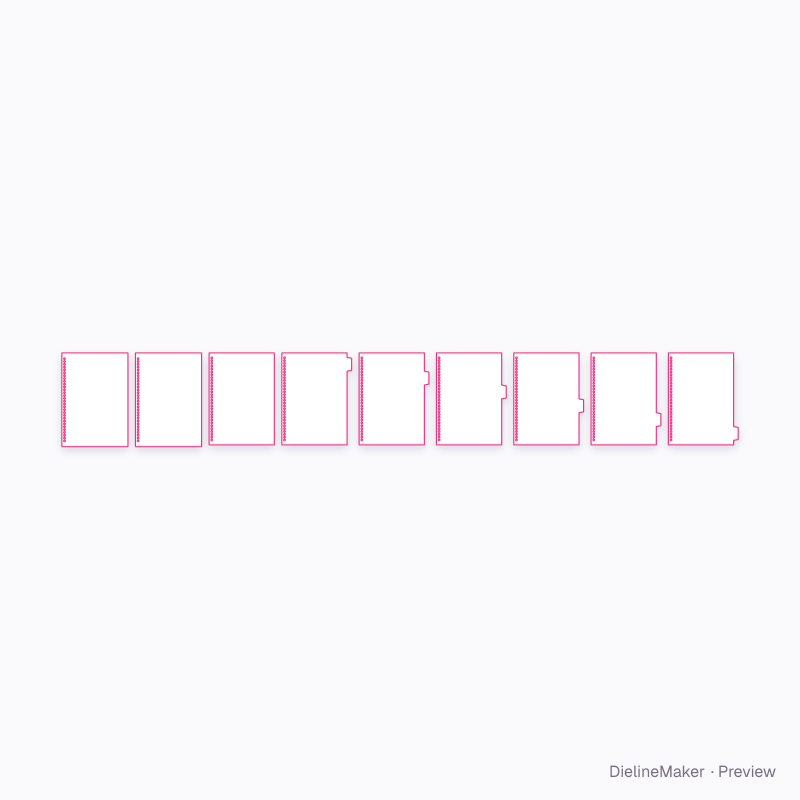

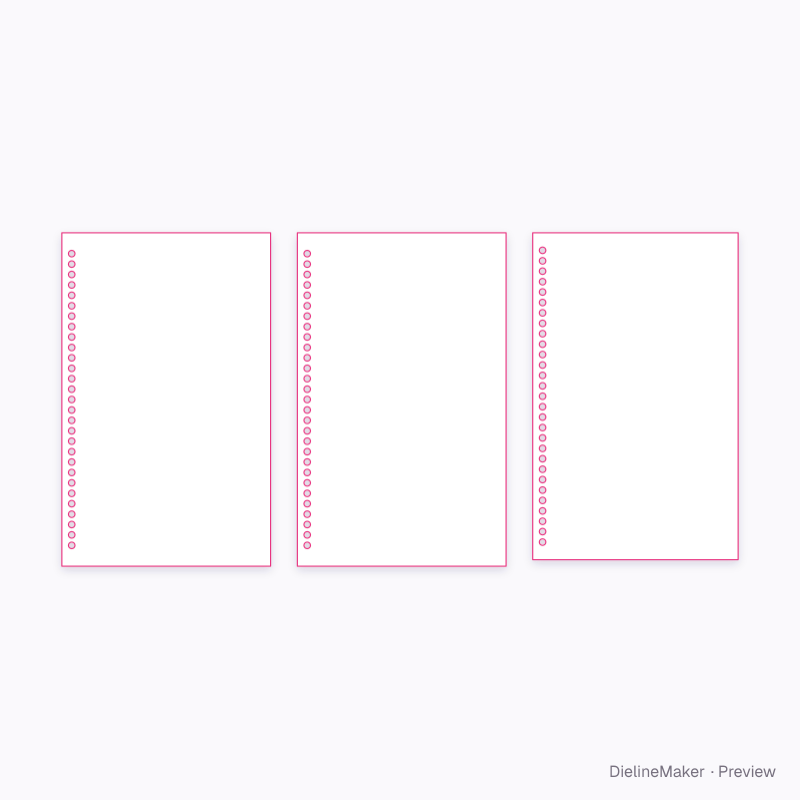

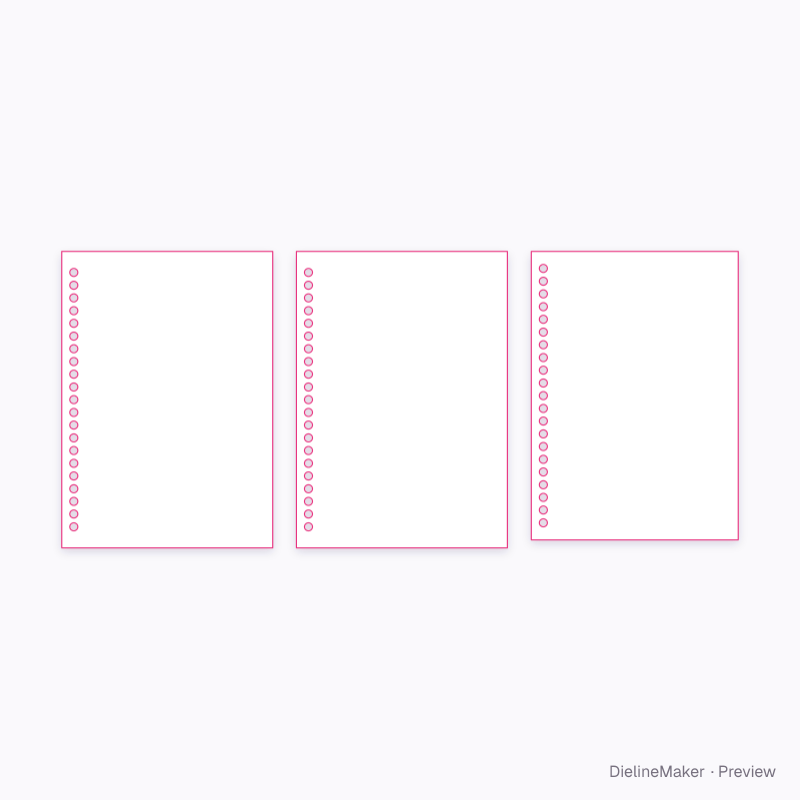

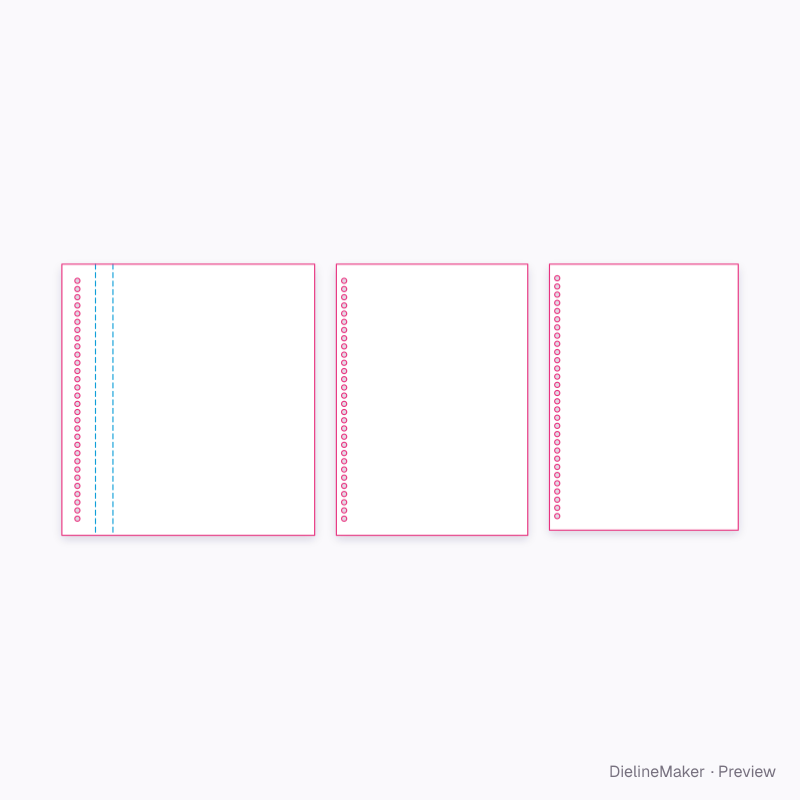

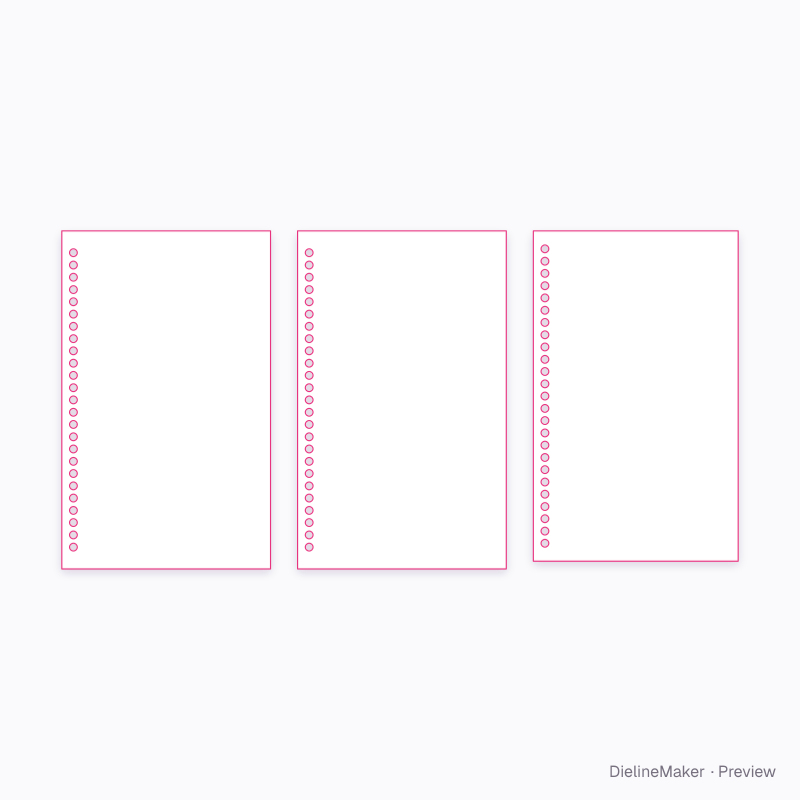

The spiral notebook family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this round spiral-bound menu yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
