A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SPIRITLEVEL-01Apparel & merchandise
Spirit level 1200 mm decoration template
A box-section spirit level with end caps and inset bubble vials. Print the beam faces around the vial windows. A ready-sized preset of the spirit level — adjust the object dimensions and decoration area to preview your artwork at size.
Object size1200 × 28 × 64 mm
Artwork area1170 × 64 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-SPIRITLEVEL-01
- Object size
- Length 1200 · Beam thickness 28 · Beam height 64 mm
- Size range
- Length 150–2000 · Beam thickness 15–40 · Beam height 25–80 mm
- Parts
- 2 parts — Front face (vial windows clear), Back face
- Artwork area
- 0.150 m²
- Good for
The flat artwork area

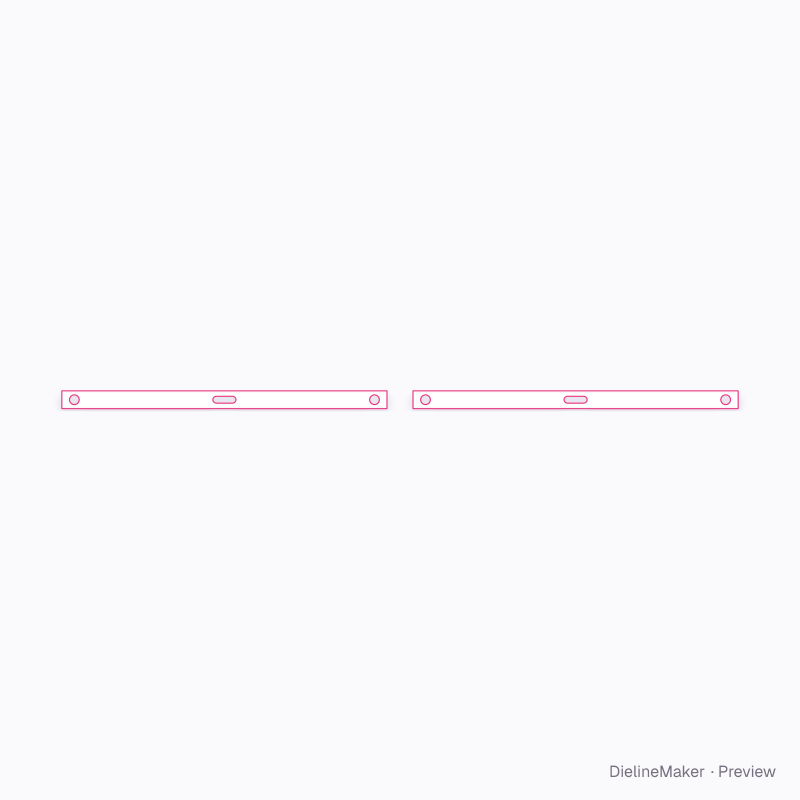

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Vialscount
- Print the back faceon / off
- Beam colour4 options
The spirit level family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this spirit level 1200 mm yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
