The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SPOUT-DISPENSER-01Tuck end
Straw dispenser dieline
A dispenser carton whose lower front swings down into a spout: curved side cheeks slide out of the side walls with the door and hold the contents in. A ready-sized preset of the fold-down spout dispenser carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 70 × 220 mm
Outside81 × 71 × 221 mm
Flat blank312 × 437 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SPOUT-DISPENSER-01
- Inside size
- Width 80 · Depth 70 · Height 220 mm
- Size range
- Width 40–400 · Depth 30–300 · Height 60–500 mm
- Manufacturing
- 80.5 × 70.5 × 220.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.084 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350GD2 350E-flute WSBS 18 pt
- Good for

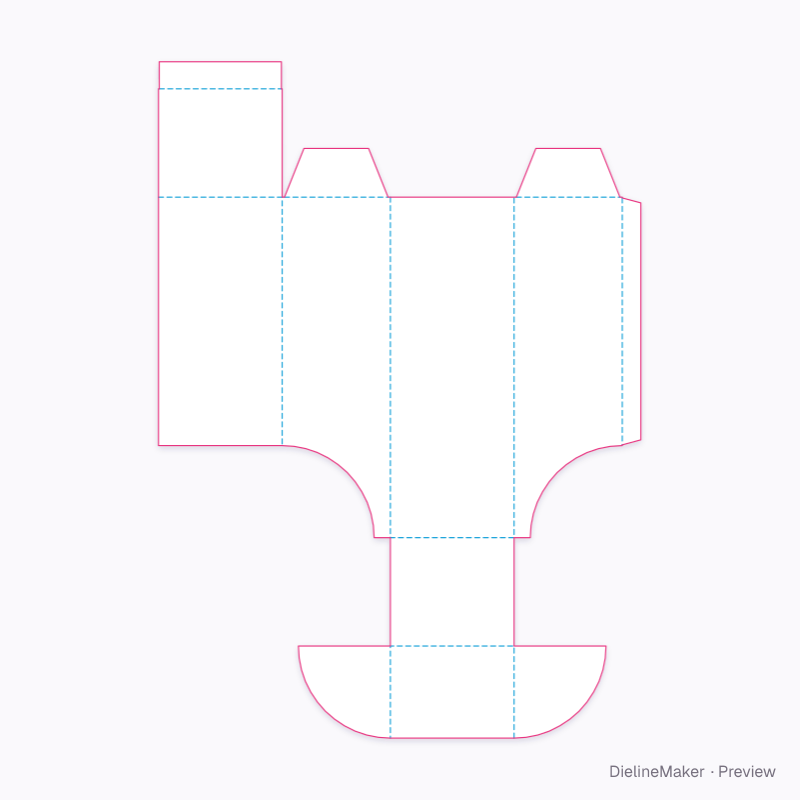

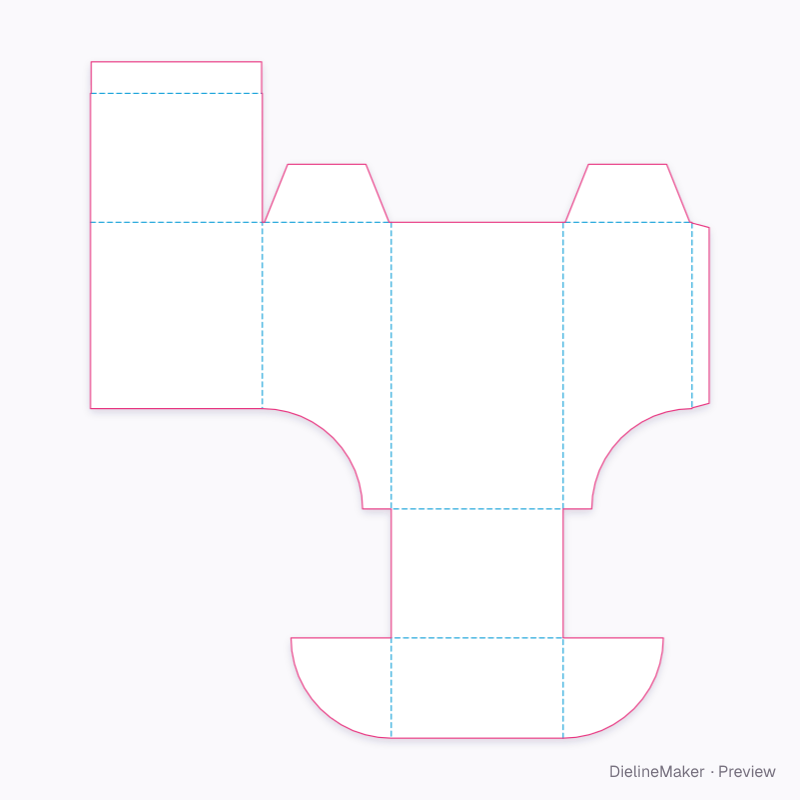

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SPOUT-DISPENSER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 80 × 160.5 | L × – |
| Right side | 70 × 160.5 | W × – |
| Top | 80 × 70 | L × W |
| Back | 80 × 220 | L × H |
| Top dust flap ×2 | 67 × 31.5 | – |
| Top tuck | 79 × 17.5 | L − 2T × – |
| Left side | 70 × 220 | W × H |
| Bottom | 80 × 70 | L × W |
| Glue flap | 12 × 159.5 | – |
| Spout door | 80 × 59.5 | L × – |
| Spout cheek ×2 | 59.5 × 59.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Spout door heightmm
- Tuck depthmm
The fold-down spout dispenser carton family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this straw dispenser yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
