Pointed bookmark dieline
50 × 180 mm house-shaped pentagon bookmark with a 25 mm point. A ready-sized preset of the sticker & label — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside50 × 180 mm
Outside50 × 180 mm
Flat blank50 × 179.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 50 · Height 180 mm
- Size range
- Width 10–300 · Height 10–300 mm
- Manufacturing
- 50 × 180 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.008 m² · about 60 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- Label glossClear BOPPPaper 170SBS 300SBS 18 pt
- Good for
The flat dieline

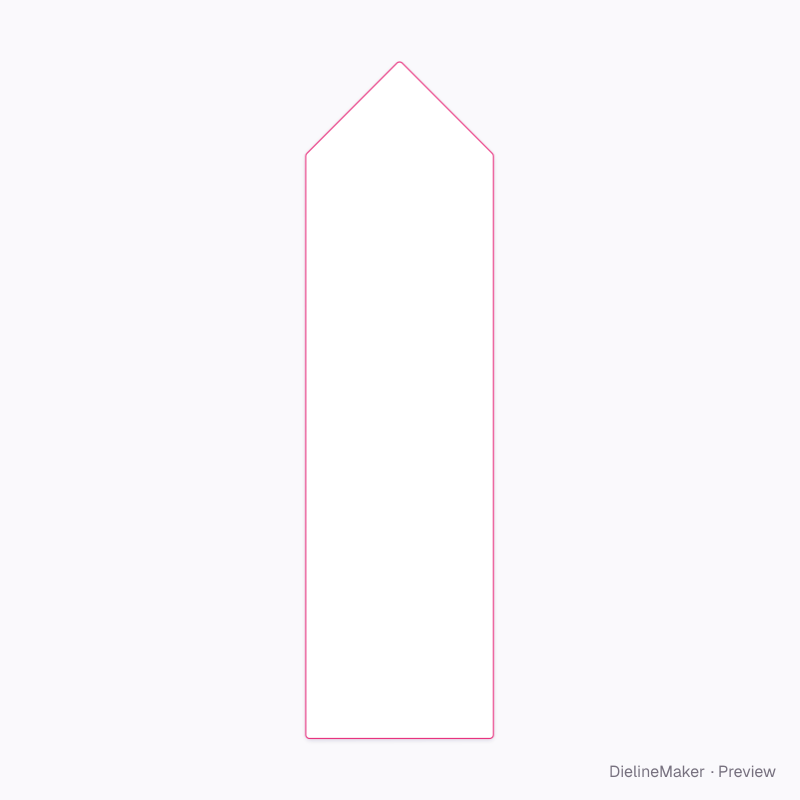

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
