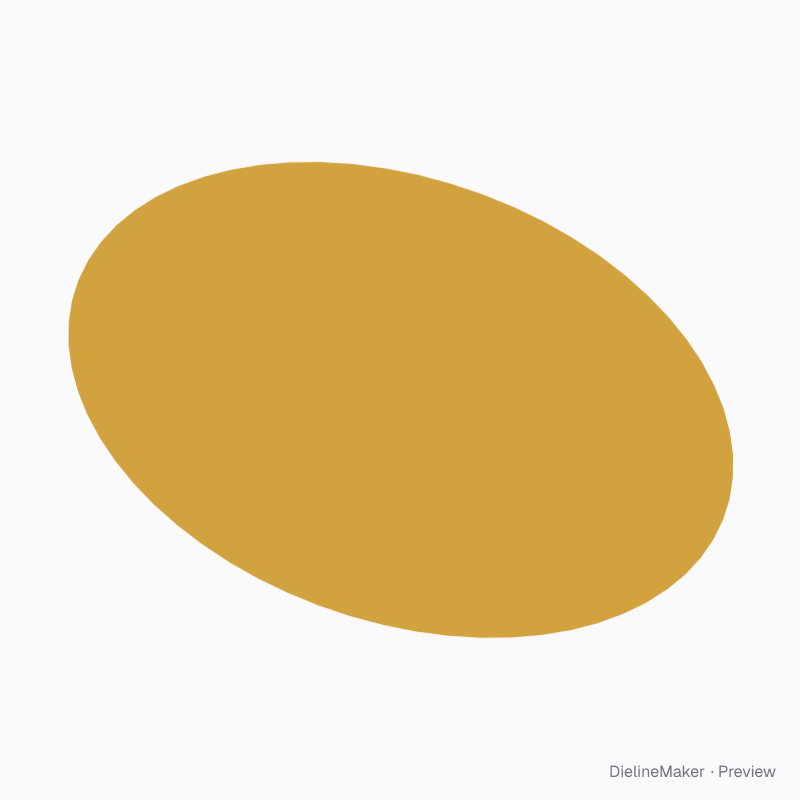

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
50 × 30 mm oval label dieline
50 × 30 mm finished format with editable dimensions and artwork. A ready-sized preset of the sticker & label — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside50 × 30 mm
Outside50 × 30 mm
Flat blank50 × 30 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 50 · Height 30 mm
- Size range
- Width 10–300 · Height 10–300 mm
- Manufacturing
- 50 × 30 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.001 m² · about 420 up on a 720 × 1020 mm sheet
- Default board
- Gloss label stock · 0.08 mm caliper
- Board options
- Label glossClear BOPPPaper 170SBS 300SBS 18 pt
- Good for

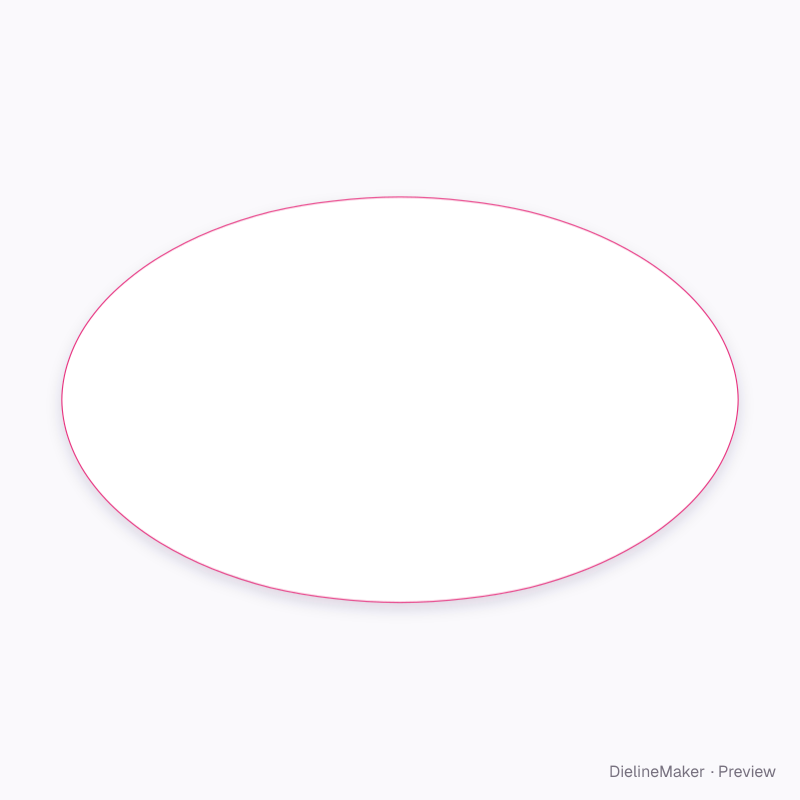

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Profile2 options
- Shape18 options
- Corner radiusmm
- Lobe / wing sizemm
- Curl corner4 options
- Hang hole3 options
- Hole sizemm
- Hole from topmm
- Cut2 options
