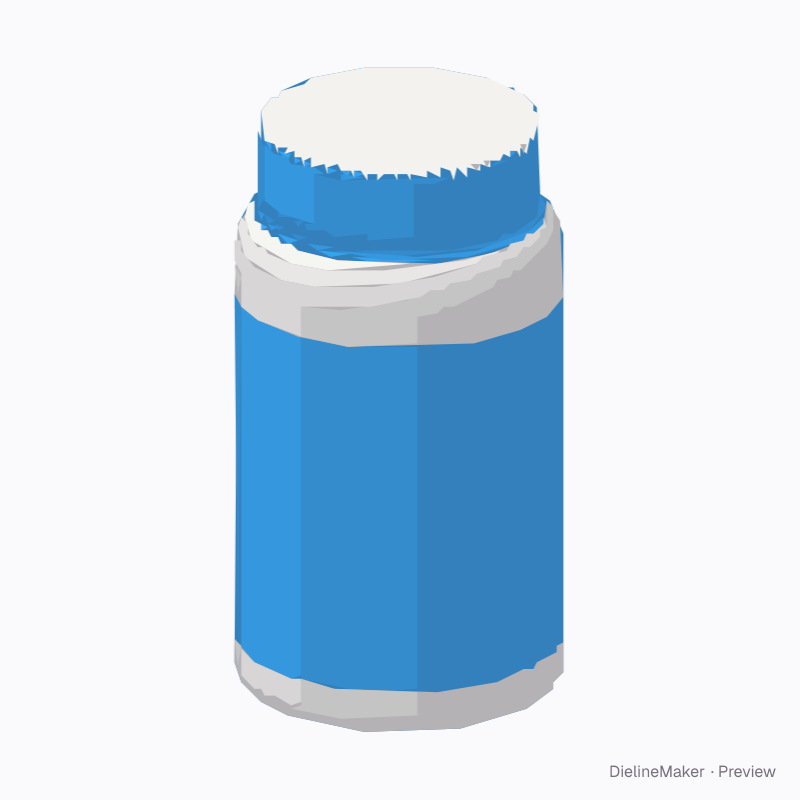

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Family supplement bottle label template
88 × 160 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the supplement bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 88 × 160 mm
Artwork area283 × 99 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Diameter 88 · Height to neck top 160 mm
- Size range
- Diameter 35–110 · Height to neck top 50–200 mm
- Parts
- 2 parts — Label, Shrink band
- Artwork area
- 0.035 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Perforation
- Artwork boundary
- Glue area
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 13 options; the template and 3D preview follow each change.
- Wrap coverage%
- Overlapmm
- Label heightmm
- Label from basemm
- Body4 options
- Molded body bands3 options
- Longitudinal relief3 options
- Cap colour9 options
- Contents4 options
- Closure2 options
- Shrink bandon / off
- Band below capmm
- Band perforation3 options
