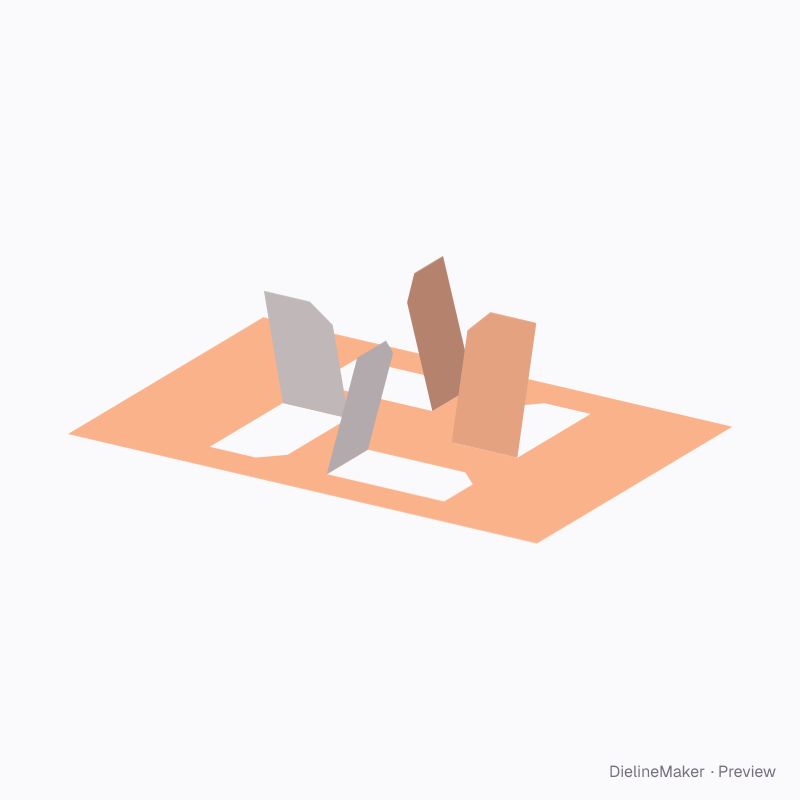

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F80.01.00.00Trays & lids
Cosmetic set inlay 240×160 dieline
Rectangular inlay whose tabs hold two cosmetic jars and two tubes. A ready-sized preset of the flat inlay with fold-up tabs — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 160 × 60 mm
Outside240 × 160 × 60 mm
Flat blank240 × 160 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F80.01.00.00
- Inside size
- Pad length 240 · Pad width 160 · Tab length 60 mm
- Size range
- Pad length 60–600 · Pad width 60–600 · Tab length 15–300 mm
- Manufacturing
- 240 × 160 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.038 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350Kraft 350FBB 400GD2 350F-fluteE-flute KE-flute WSBS 18 pt
- Good for

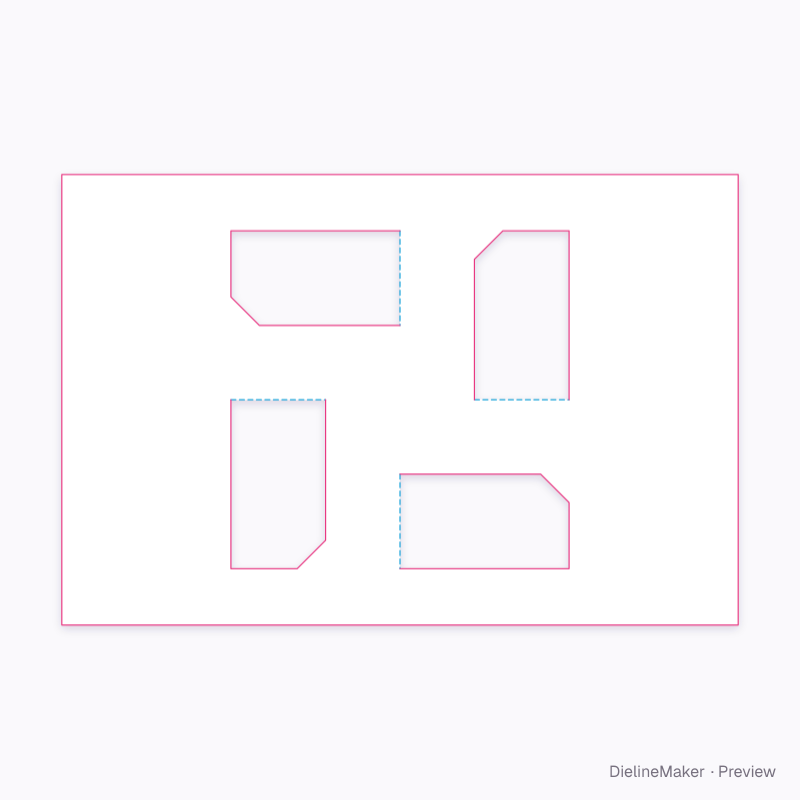

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F80.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Pad | 240 × 160 | L × W |
| Tab 1 | 60 × 33.6 | – |
| Tab 2 | 33.6 × 60 | – |
| Tab 3 | 33.6 × 60 | – |
| Tab 4 | 60 × 33.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Tab widthmm
The flat inlay with fold-up tabs family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cosmetic set inlay 240×160 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
