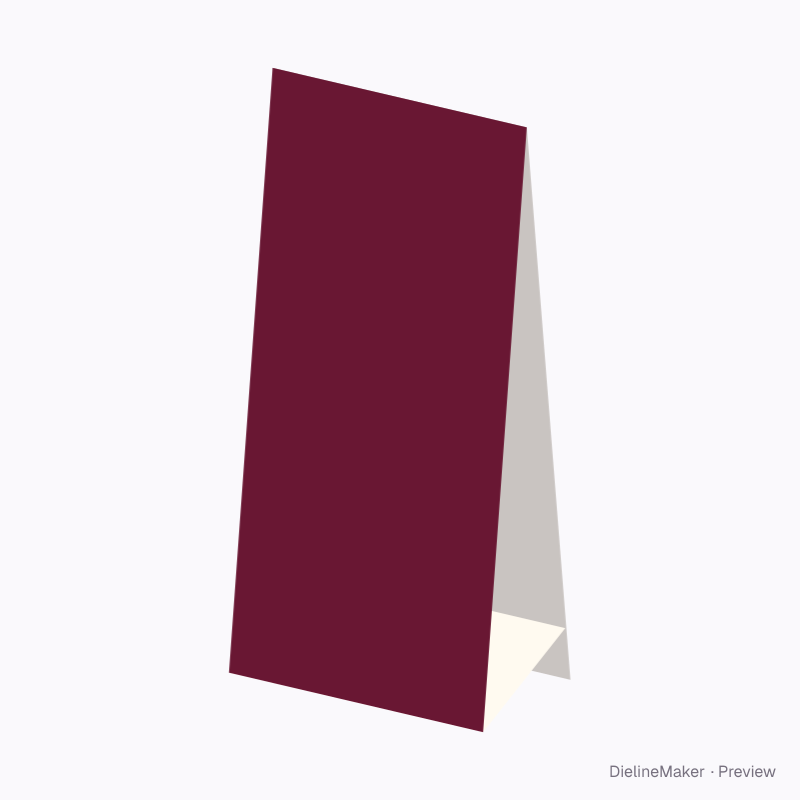

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Wine list tent dieline
Tall tent card for a bar or wine list. A ready-sized preset of the table tent — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 55 × 210 mm
Outside100 × 55 × 210 mm
Flat blank100 × 481.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 100 · Base depth 55 · Face height 210 mm
- Size range
- Width 50–400 · Base depth 20–250 · Face height 50–400 mm
- Manufacturing
- 100 × 55 × 210 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.048 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350GD2 350SBS 18 pt
- Good for

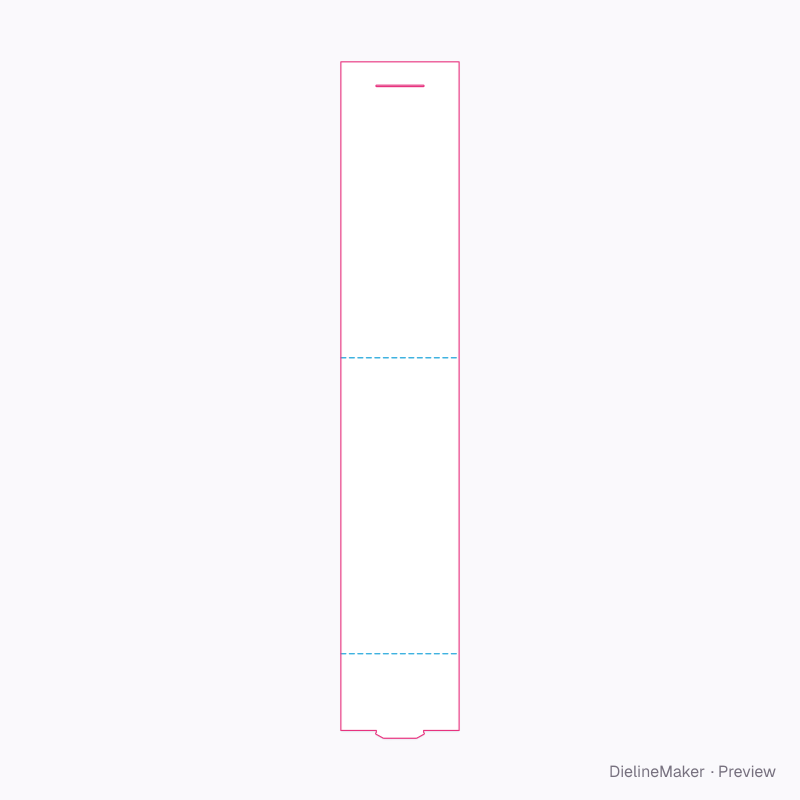

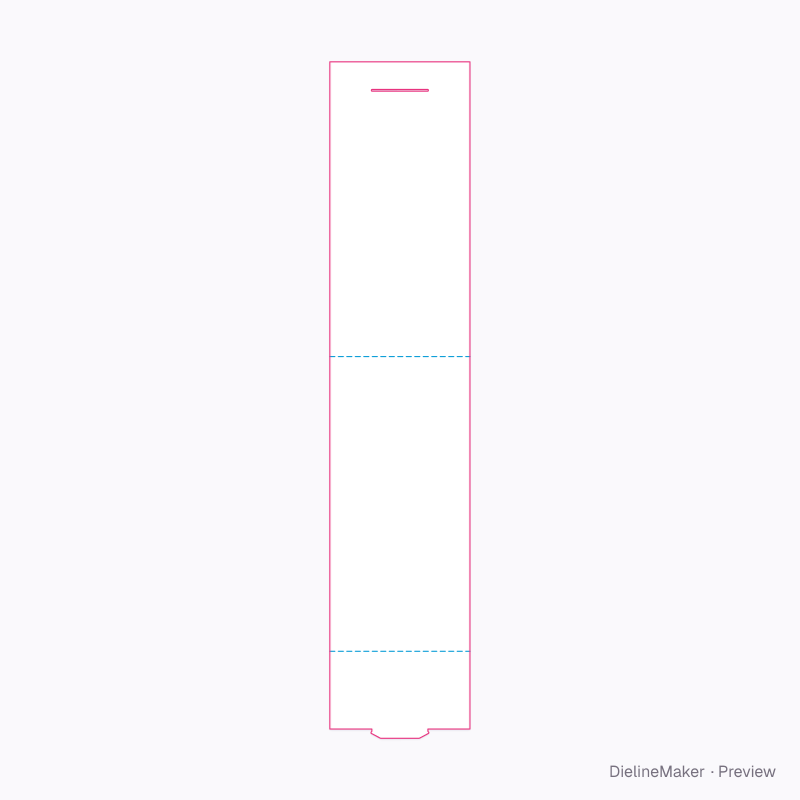

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front face | 100 × 210 | W × H |
| Back face | 100 × 210 | W × H |
| Base | 100 × 55.4 | W × Base |
| Lock tab | 40 × 6.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Base2 options
- Lock heightmm
- Tab widthmm
- Apex slot with upright graphicon / off
