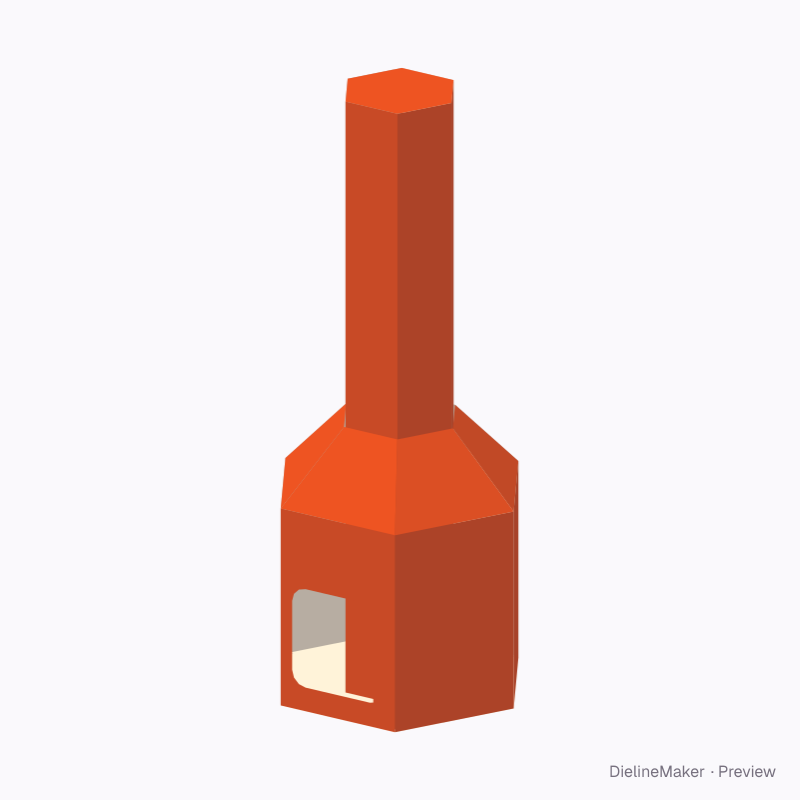

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-COLUMN-BIN-01Display
Counter column bin dieline
A hexagonal dispensing bin with a front window whose sloped shoulders narrow into a collar holding a separate column. A ready-sized preset of the tapered-column hexagonal dispensing bin — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 100 × 600 mm
Outside223.2 × 103.2 × 603.2 mm
Flat blank850.6 × 511.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-COLUMN-BIN-01
- Inside size
- Bin width (across flats) 220 · Column width (across flats) 100 · Total height 600 mm
- Size range
- Bin width (across flats) 120–800 · Column width (across flats) 60–500 · Total height 300–2000 mm
- Manufacturing
- 221.6 × 101.6 × 601.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Hexagonal bin, Column
- Board area
- 0.490 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB doubleE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-COLUMN-BIN-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Bin frontHexagonal bin | 127 × 200 | – |
| Shoulder ×6Hexagonal bin | 127 × 91.3 | – |
| Bin wall ×5Hexagonal bin | 127 × 200 | – |
| BaseHexagonal bin | 127 × 220 | – × L |
| Glue flap ×3Hexagonal bin | 123 × 25 | – |
| Glue flapHexagonal bin | 25 × 196 | – |
| Column frontColumn | 57.7 × 600 | – × H |
| Column wall ×5Column | 57.7 × 600 | – × H |
| Column lidColumn | 57.7 × 100 | – × W |
| Lid tuckColumn | 57.7 × 28.9 | – |
| Glue flapColumn | 25 × 596 | – |
