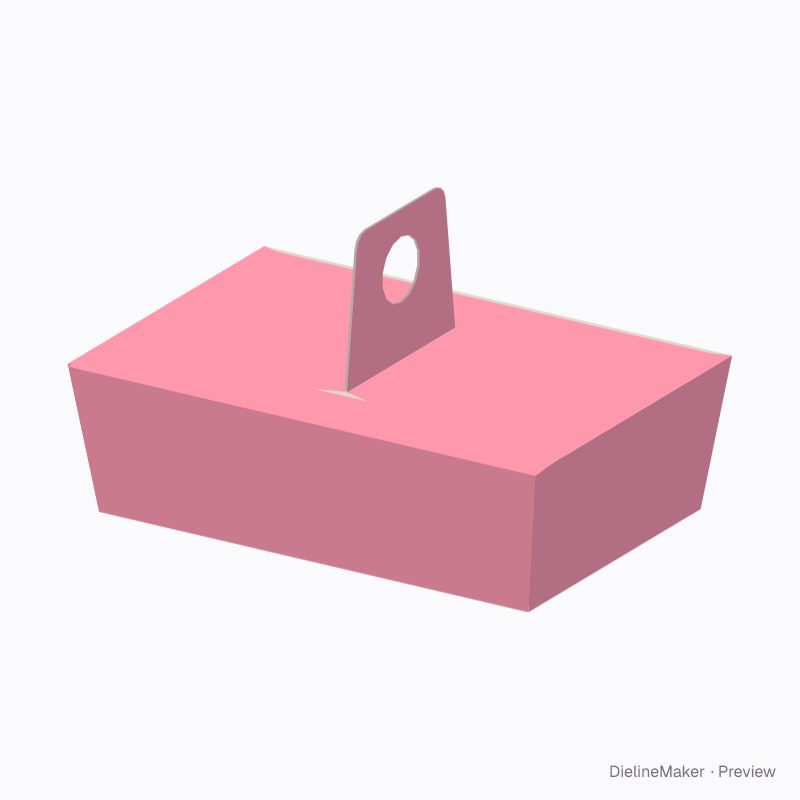

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TAPERED-HANDLE-TRAY-01Food
Picnic carry tray dieline
A flared tray whose end walls fold over the top into two carry loops meeting at the centre, with side flaps beneath. A ready-sized preset of the tapered tray with integral carry loops — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside280 × 180 × 90 mm
Outside283.2 × 183.2 × 93.2 mm
Flat blank945.4 × 450.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TAPERED-HANDLE-TRAY-01
- Inside size
- Base length 280 · Base width 180 · Height 90 mm
- Size range
- Base length 80–400 · Base width 60–300 · Height 30–200 mm
- Manufacturing
- 281.6 × 181.6 × 91.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.236 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- Kraft 350SBS 350Food kraft PEE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TAPERED-HANDLE-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 280 × 180 | L × W |
| Side wall ×2 | 280 × 90.9 | L × – |
| End wall ×2 | 90.9 × 180 | – × W |
| Side flap ×2 | 305.2 × 44.2 | – |
| End cover ×2 | 151.8 × 205.2 | – |
| Glue flap ×4 | 87.7 × 13.9 | – |
| Carry loop ×2 | 90 × 112.9 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Flare per sidemm
- Loop heightmm
The tapered tray with integral carry loops family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this picnic carry tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
