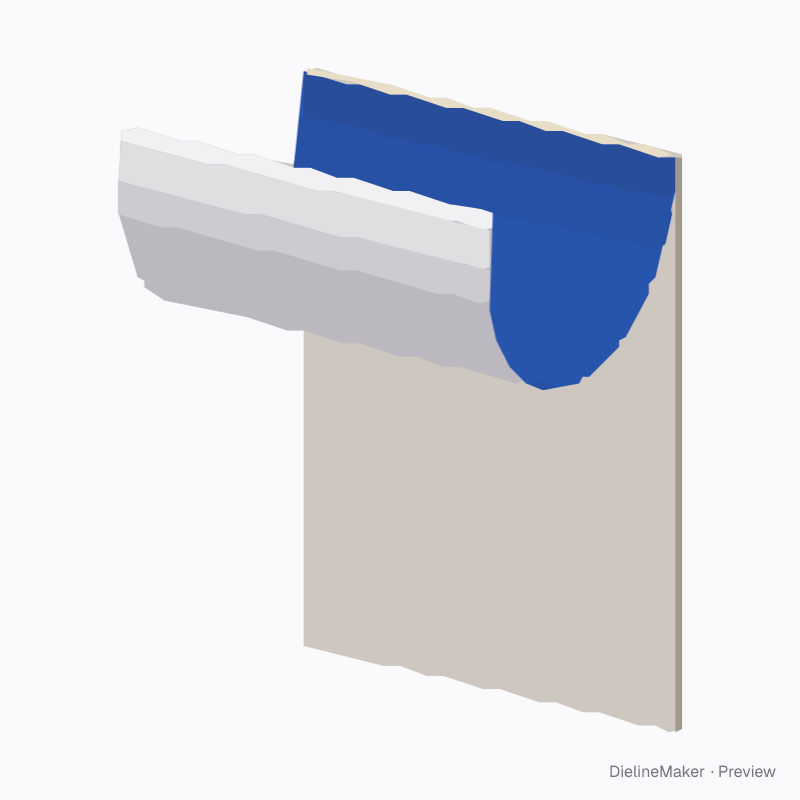

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Sketch pad with curled top leaf dieline
Printed tear-off sheets glued along the selected edge, on a card backing. Export the sheet and cover trim/punch templates. Glue, wire forming and bindery tolerances are supplier specifications. A ready-sized preset of the glued tear-off notepad — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside210 × 297 mm
Outside210 × 297 mm
Flat blank210 × 297 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Sheet width 210 · Sheet height 297 mm
- Size range
- Sheet width 70–320 · Sheet height 90–420 mm
- Manufacturing
- 210 × 297 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Writing sheet trim / punch reference, Card backing
- Board area
- 0.125 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350Kraft 350Paper 170SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
