DM-TONGUE-COVER-TAPER-01Trays & lids
Lidded flared food tray 180×120×50 dieline

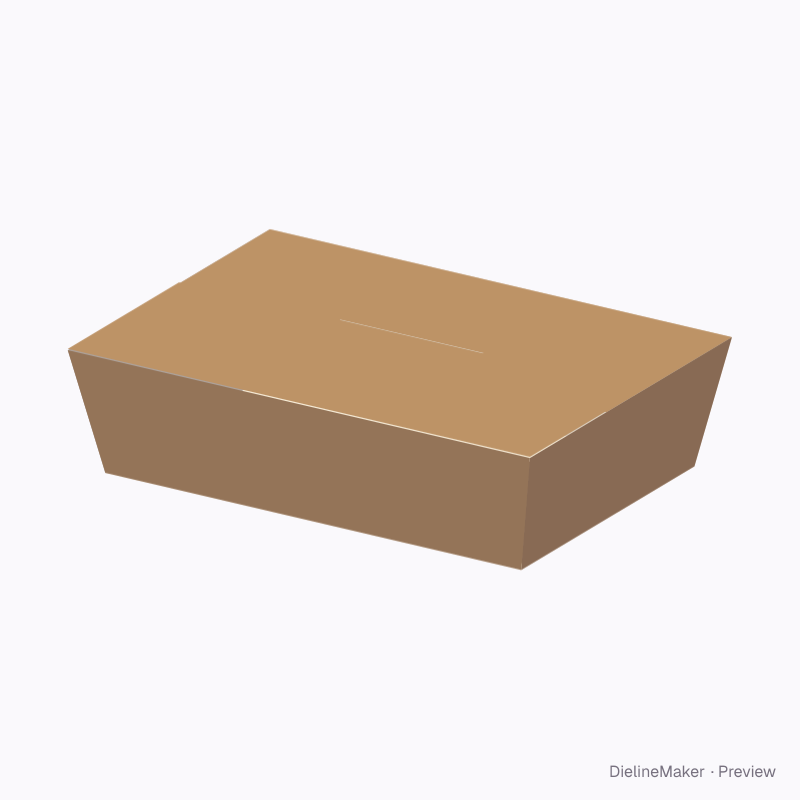

A flared tray closed by two opposed cover leaves, the front leaf’s tongue locking down through a slot in the back leaf. A ready-sized preset of the tapered tray with tongue covers — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 50 mm
Outside181 × 121 × 51 mm
Flat blank282 × 400.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TONGUE-COVER-TAPER-01
- Inside size
- Base length 180 · Base width 120 · Height 50 mm
- Size range
- Base length 60–400 · Base width 40–300 · Height 20–150 mm
- Manufacturing
- 180.5 × 120.5 × 50.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.090 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400E-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TONGUE-COVER-TAPER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 180 × 120 | L × W |
| Flared long wall ×2 | 180 × 51 | L × – |
| Flared end wall ×2 | 51 × 120 | – × W |
| Front cover leaf | 200 × 77 | – |
| Back cover leaf | 200 × 86.8 | – |
| Glue flap ×4 | 48 × 15 | – |
| Locking tongue | 60 × 15 | – |
