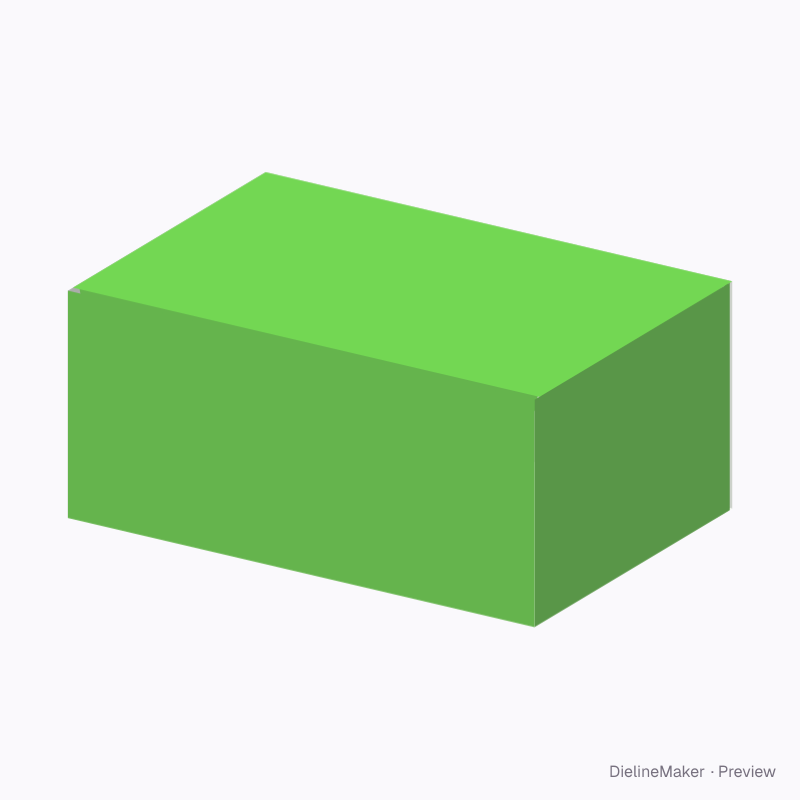

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0212Shipping
Footwear shipping carton — Tuck-top slotted box dieline
Editable 370 × 250 × 160 mm starting point using tuck-top slotted box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the tuck-top slotted box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside370 × 250 × 160 mm
Outside376.4 × 256.4 × 172.8 mm
Flat blank1281.6 × 569.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0212
- Inside size
- Length 370 · Width 250 · Height 160 mm
- Size range
- Length 80–1000 · Width 50–700 · Height 50–1000 mm
- Manufacturing
- 373.2 × 253.2 × 166.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.532 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for

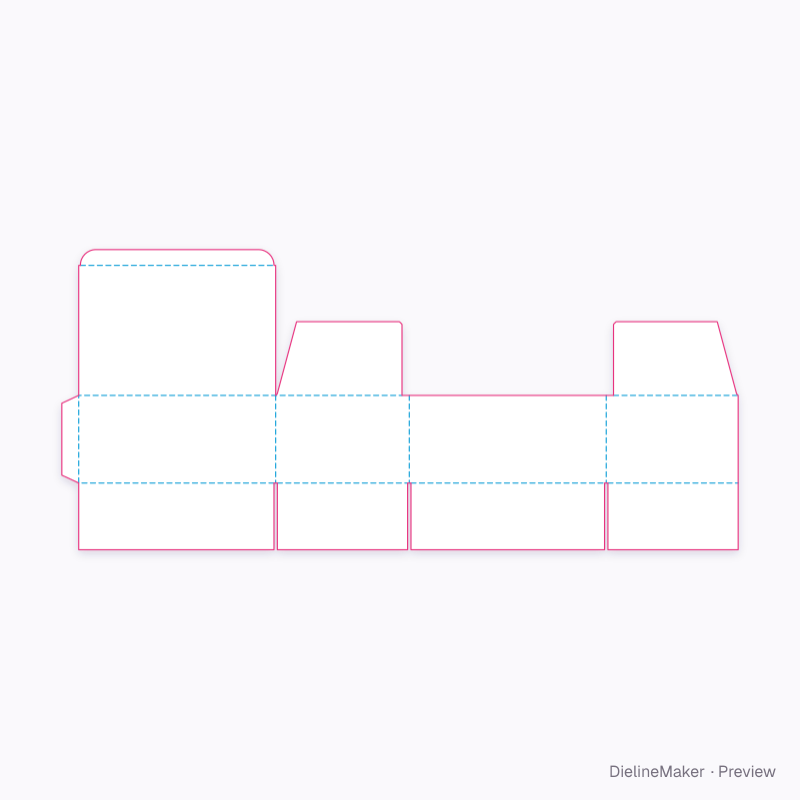

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0212 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 373.2 × 166.4 | L + T × H + 2T |
| Left side | 253.2 × 166.4 | W + T × H + 2T |
| Back | 373.2 × 166.4 | L + T × H + 2T |
| Right side | 250 × 166.4 | W × H + 2T |
| Glue flap | 32 × 166.4 | – × H + 2T |
| Bottom outer flap | 370 × 126.6 | L × – |
| Bottom inner flap ×2 | 246.8 × 126.6 | W − T × – |
| Bottom outer flap | 366.8 × 126.6 | L − T × – |
| Top closure | 373.2 × 246.8 | L + T × W − T |
| Top tuck | 366.8 × 30 | L − T × – |
| Top dust flap | 239.4 × 140 | – |
| Top dust flap | 236.2 × 140 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Tuck depthmm
- Thumb notchon / off
- Hand holeson / off

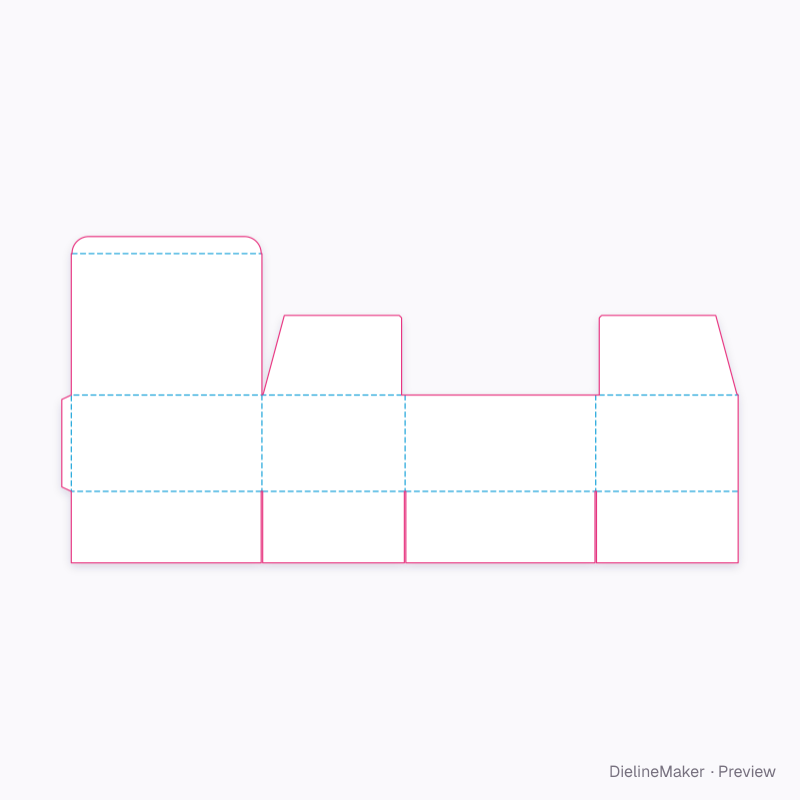

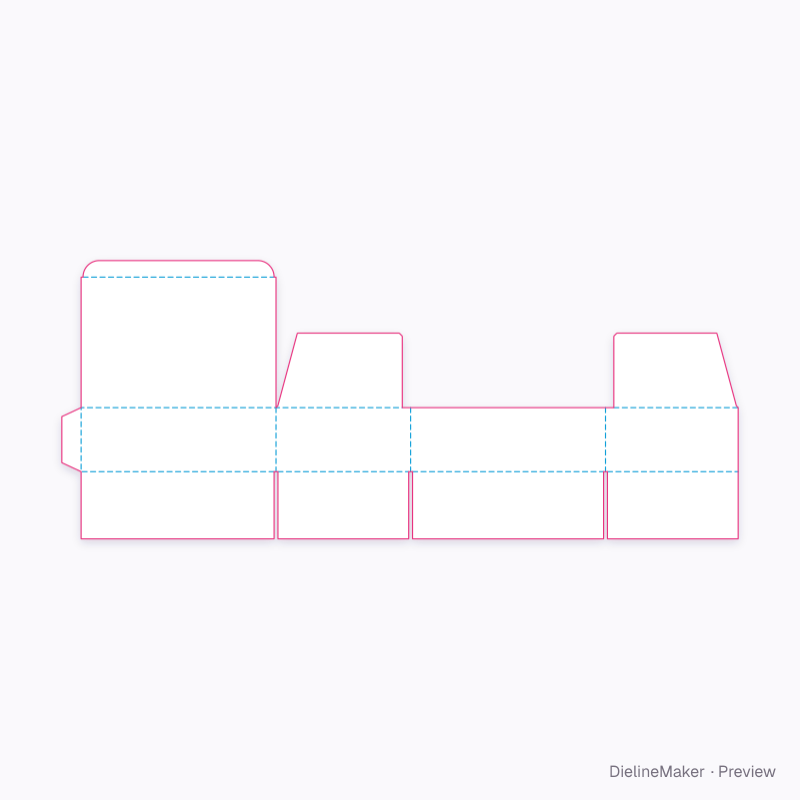

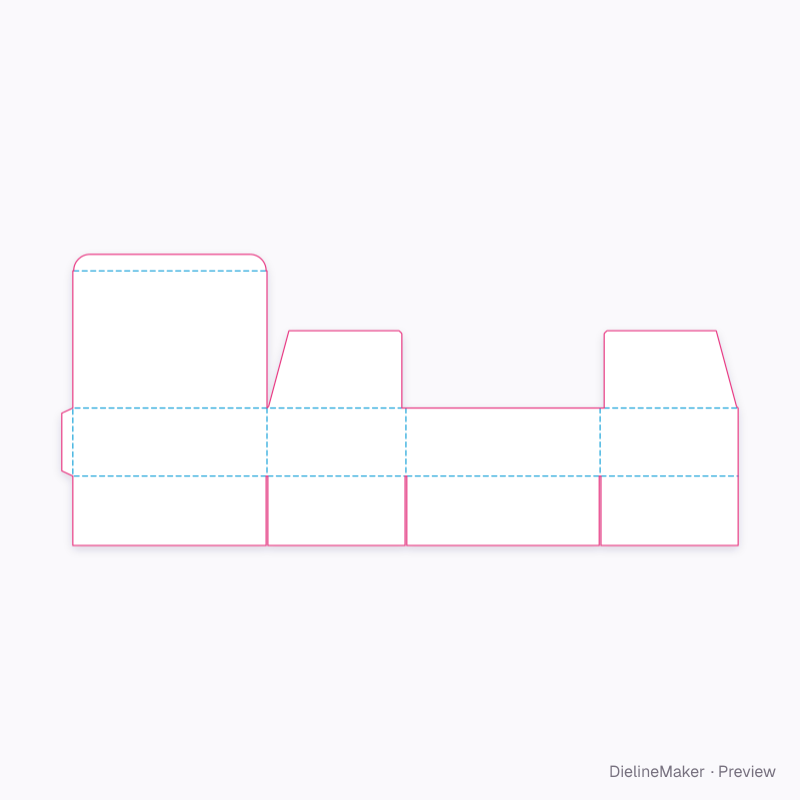

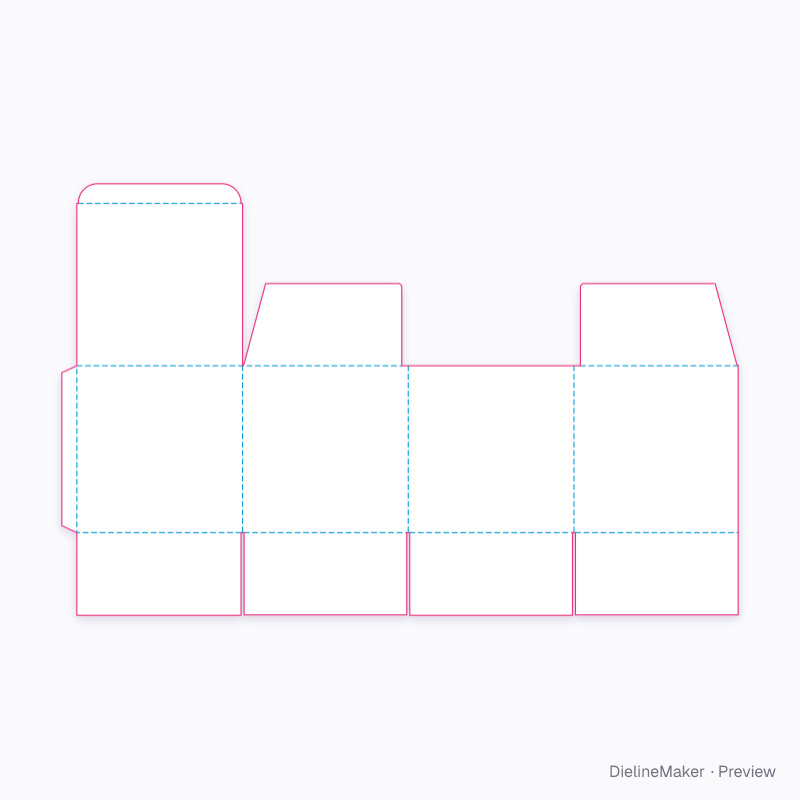

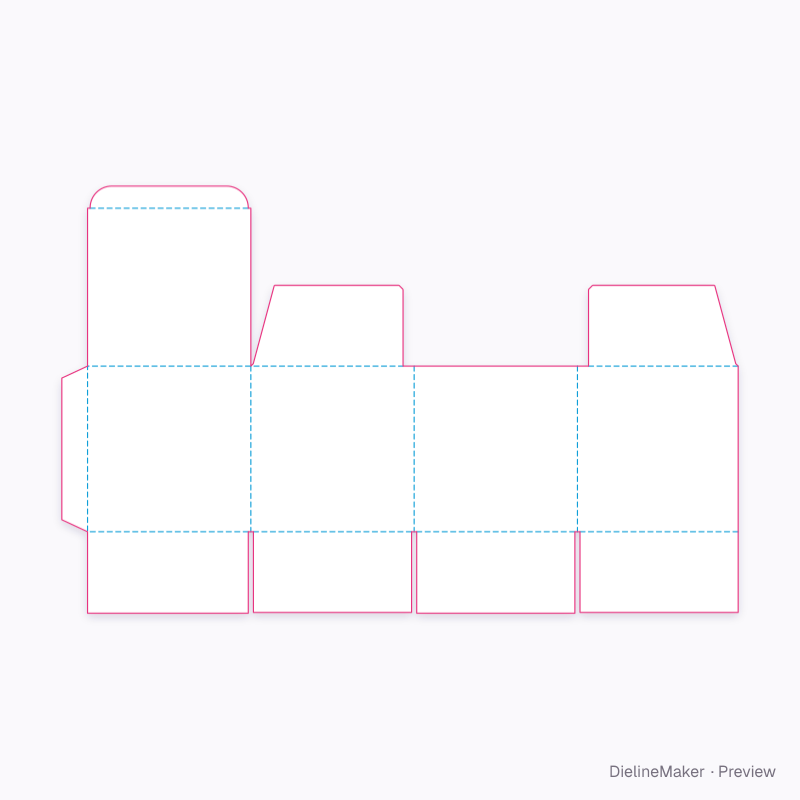

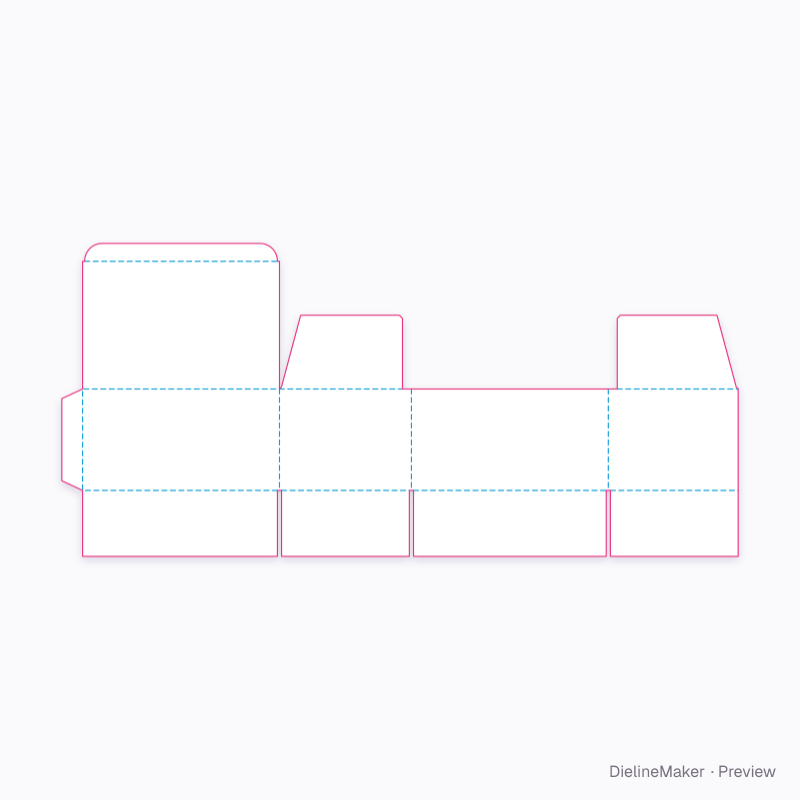

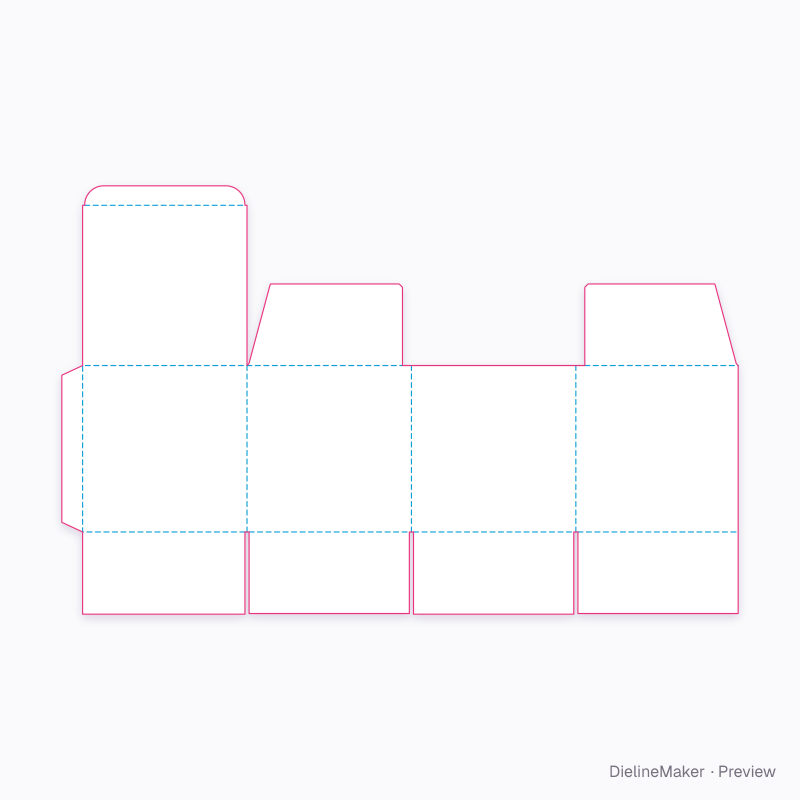

The tuck-top slotted box family
The same structure with sizes, boards and options set for a use.

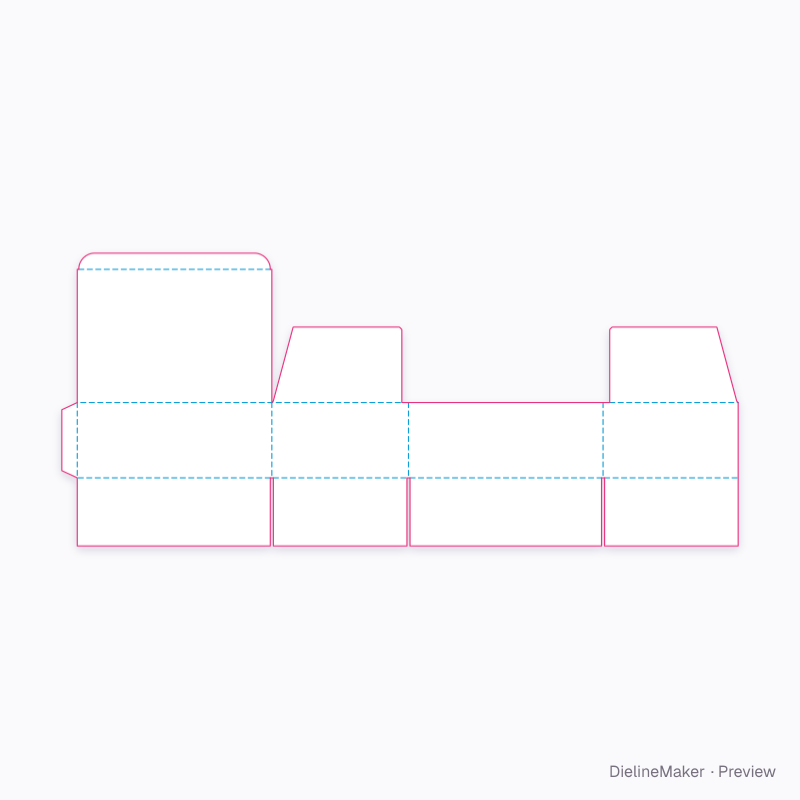

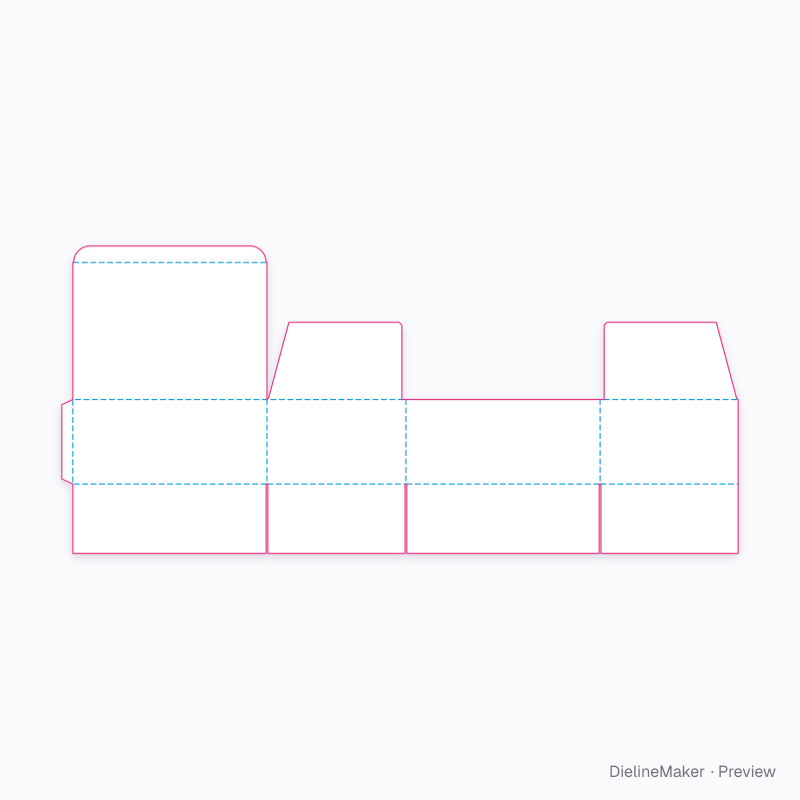

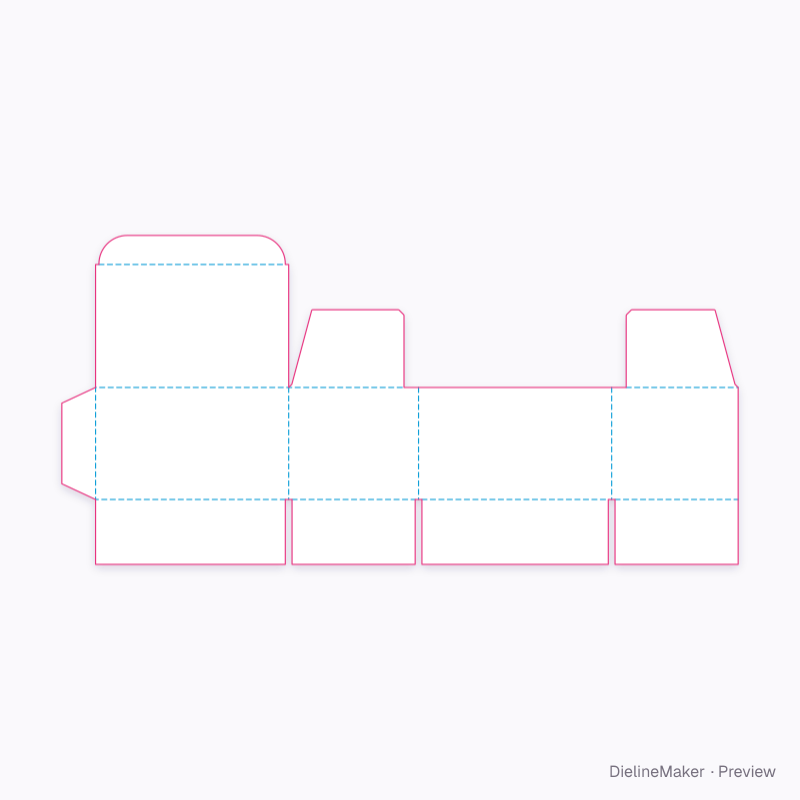

Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this footwear shipping carton — tuck-top slotted box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
