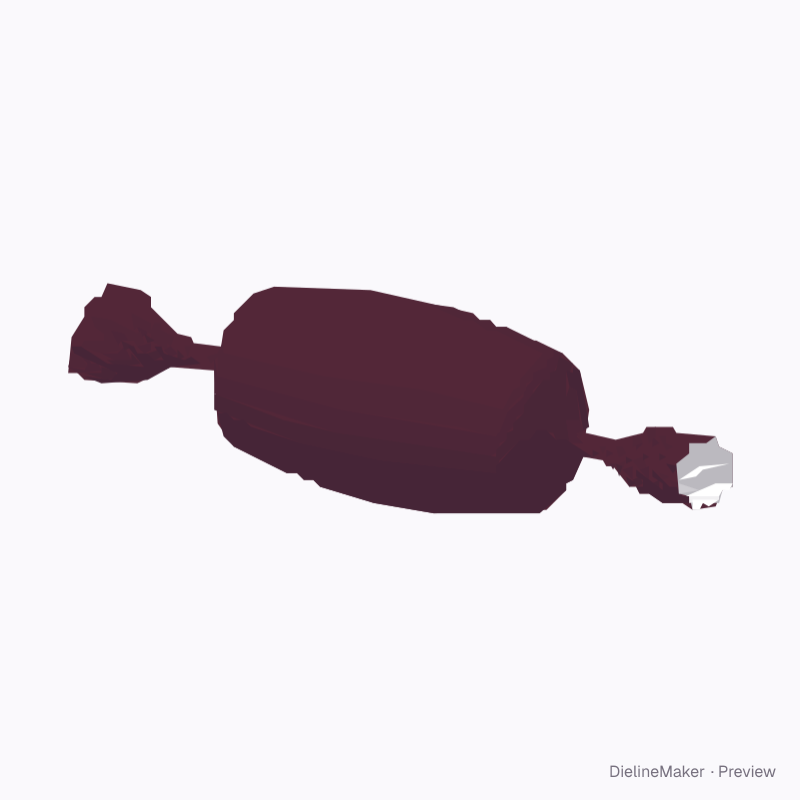

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Fruit sweet twist wrap dieline
One rectangular film around an oval sweet, gathered and twisted at both ends. The web uses the body girth plus overlap and separate tail allowances; twist retention, machine direction and final cut-off need converter trials. A ready-sized preset of the double-twist sweet wrapper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside38 × 24 × 24 mm
Outside38 × 24 × 24 mm
Flat blank84 × 80.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Sweet length 38 · Sweet depth 24 · Sweet height 24 mm
- Size range
- Sweet length 20–100 · Sweet depth 12–60 · Sweet height 12–60 mm
- Manufacturing
- 38 × 24 × 24 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.007 m² · about 88 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for Metallised PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Sweet front | 38 × 32.4 | L × – |
| Back upper wrap | 38 × 24 | L × – |
| Back lower wrap | 38 × 24 | L × – |
| Left twist allowance | 23 × 32.4 | – |
| Right twist allowance | 23 × 32.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Twist tail allowancemm
- Back overlapmm
The double-twist sweet wrapper family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fruit sweet twist wrap yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
