Large truffle twist wrap dieline
One rectangular film around an oval sweet, gathered and twisted at both ends. The web uses the body girth plus overlap and separate tail allowances; twist retention, machine direction and final cut-off need converter trials. A ready-sized preset of the double-twist sweet wrapper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside55 × 35 × 35 mm
Outside55 × 35 × 35 mm
Flat blank115 × 115 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Sweet length 55 · Sweet depth 35 · Sweet height 35 mm
- Size range
- Sweet length 20–100 · Sweet depth 12–60 · Sweet height 12–60 mm
- Manufacturing
- 55 × 35 × 35 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.013 m² · about 40 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PE
- Good for

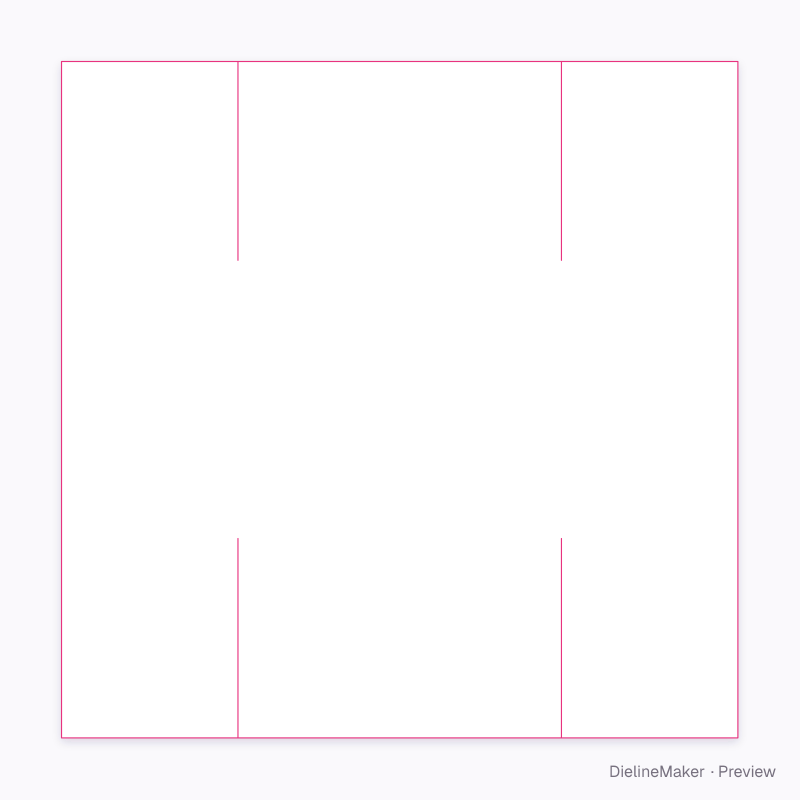

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for Metallised PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Sweet front | 55 × 47.3 | L × – |
| Back upper wrap | 55 × 33.8 | L × – |
| Back lower wrap | 55 × 33.8 | L × – |
| Left twist allowance | 30 × 47.3 | – |
| Right twist allowance | 30 × 47.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Twist tail allowancemm
- Back overlapmm
