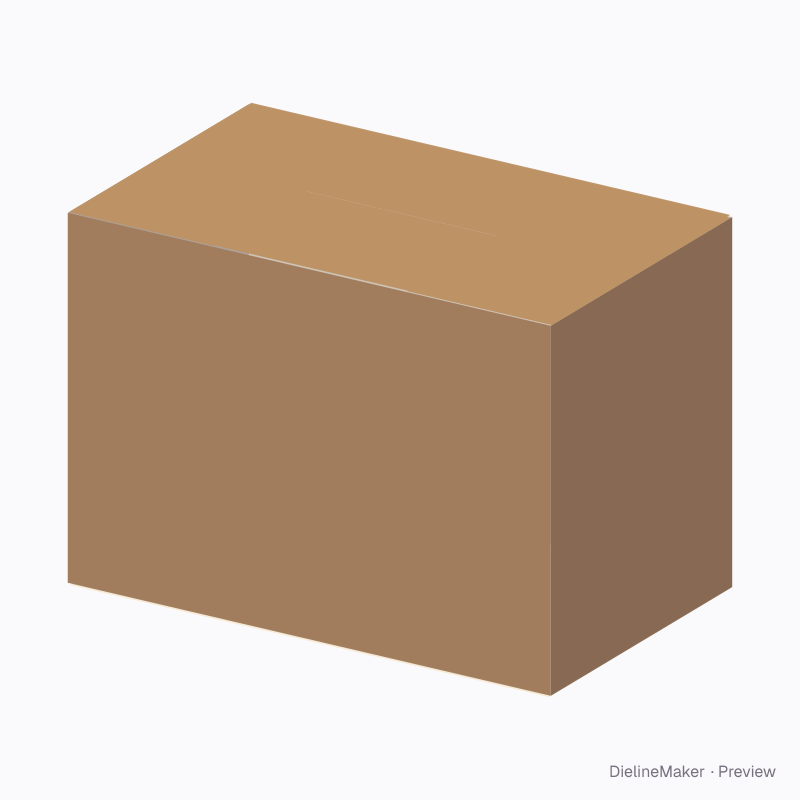

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-MULTIPIECE-RSC-01Shipping
Two-piece large case dieline
A large slotted case made from two L-shaped blanks or four wall blanks, each with its own flaps, glued into a tube. A ready-sized preset of the two- or four-piece slotted case — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1000 × 600 × 700 mm
Outside1006.4 × 606.4 × 712.8 mm
Flat blank1641.4 × 1306.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-MULTIPIECE-RSC-01
- Inside size
- Length 1000 · Width 600 · Height 700 mm
- Size range
- Length 200–2400 · Width 150–1600 · Height 150–2000 mm
- Manufacturing
- 1003.2 × 603.2 × 706.4 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front and right blank, Back and left blank
- Board area
- 4.220 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute K
- Good for

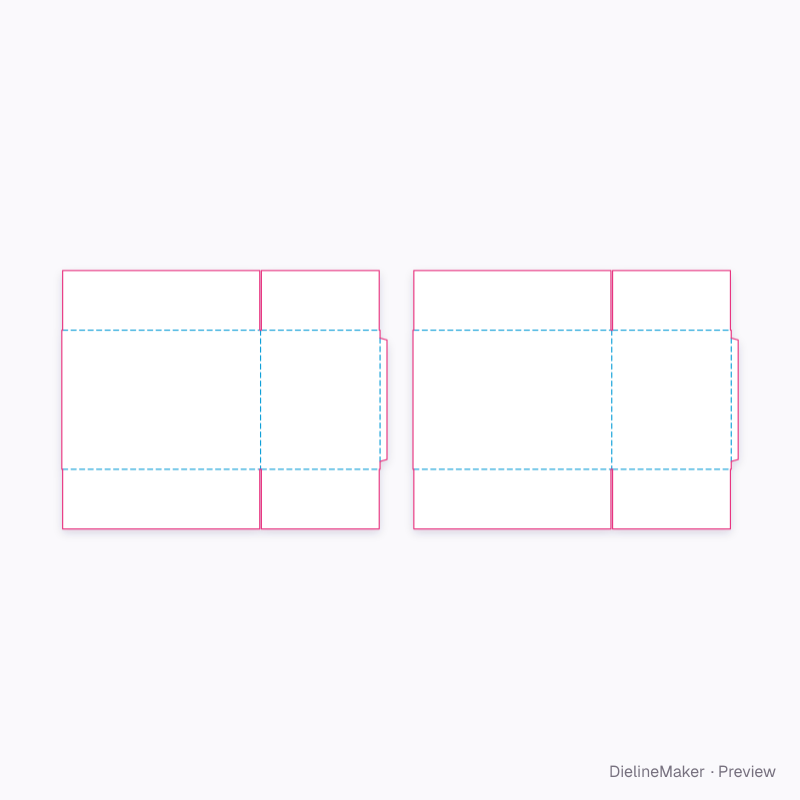

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-MULTIPIECE-RSC-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front wallFront and right blank | 1003.2 × 703.2 | L + T × H + T |
| Major flap ×2Front and right blank | 994.8 × 301.6 | – |
| Right wallFront and right blank | 603.2 × 703.2 | W + T × H + T |
| Minor flap ×2Front and right blank | 594.8 × 301.6 | – |
| Glue flapFront and right blank | 35 × 623.2 | – |
| Back wallBack and left blank | 1003.2 × 703.2 | L + T × H + T |
| Major flap ×2Back and left blank | 994.8 × 301.6 | – |
| Left wallBack and left blank | 603.2 × 703.2 | W + T × H + T |
| Minor flap ×2Back and left blank | 594.8 × 301.6 | – |
| Glue flapBack and left blank | 35 × 623.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Pieces2 options

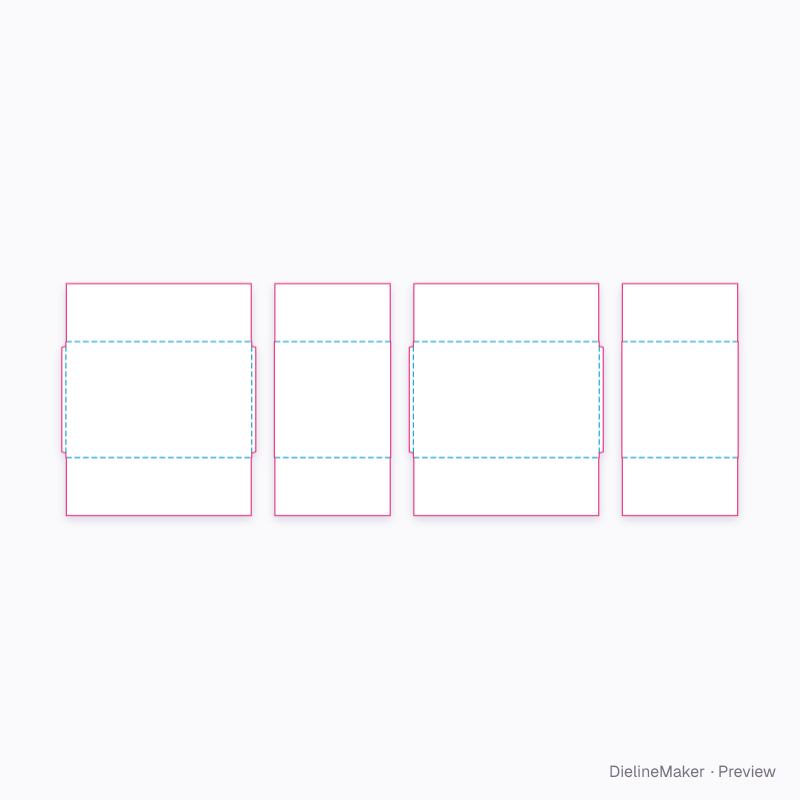

The two- or four-piece slotted case family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this two-piece large case yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
