A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Small umbrella · 650 mm canopy decoration template

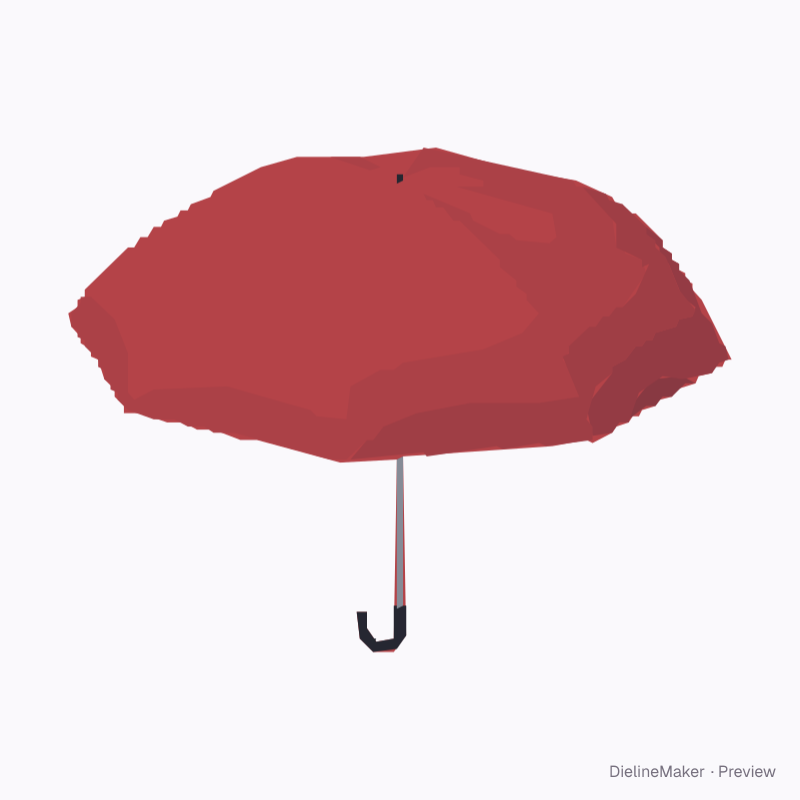

An open eight-panel canopy with stitched ribs, central shaft and curved handle. The editable mark sits on the front canopy panel; its export is a decoration guide, not a canopy sewing pattern. The export is a decoration placement reference; confirm the printable area with your supplier. A ready-sized preset of the eight-panel umbrella — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 650 × 520 mm
Artwork area117 × 104 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Canopy diameter 650 · Open umbrella height 520 mm
- Size range
- Canopy diameter 600–1400 · Open umbrella height 450–1100 mm
- Parts
- One artwork area
- Artwork area
- 0.012 m²
- Good for
The flat artwork area

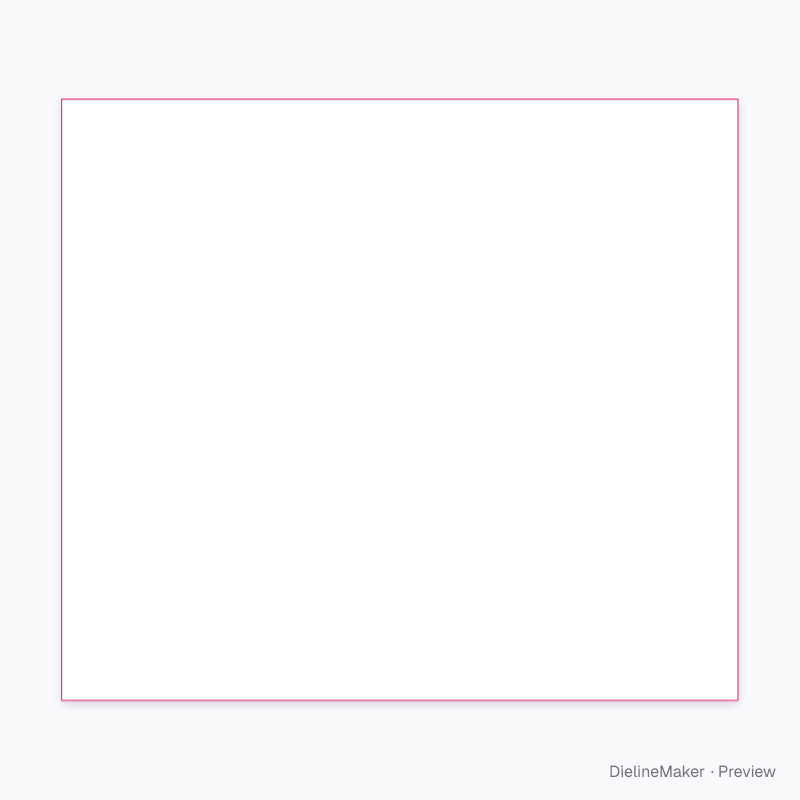

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
