A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise

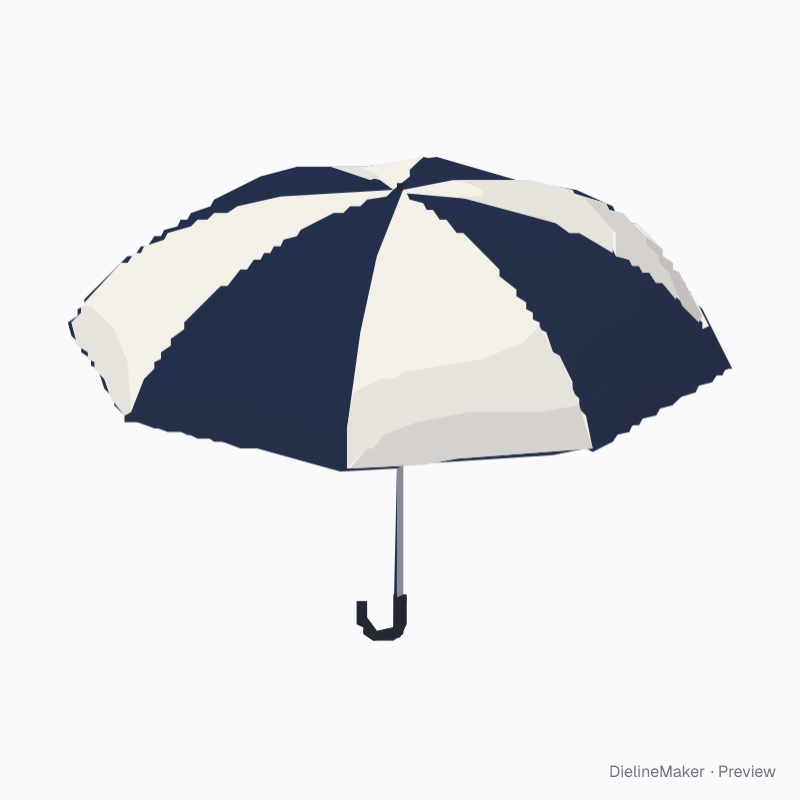

Golf umbrella · 1300 mm canopy decoration template
An open eight-panel canopy with stitched ribs, central shaft and curved handle. The editable mark sits on the front canopy panel; its export is a decoration guide, not a canopy sewing pattern. The export is a decoration placement reference; confirm the printable area with your supplier. A ready-sized preset of the eight-panel umbrella — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 1300 × 1000 mm
Artwork area234 × 208 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Canopy diameter 1300 · Open umbrella height 1000 mm
- Size range
- Canopy diameter 600–1400 · Open umbrella height 450–1100 mm
- Parts
- One artwork area
- Artwork area
- 0.049 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 2 options; the template and 3D preview follow each change.
- Object colour6 options
- Alternate ivory panelson / off
The eight-panel umbrella family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this golf umbrella · 1300 mm canopy yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
