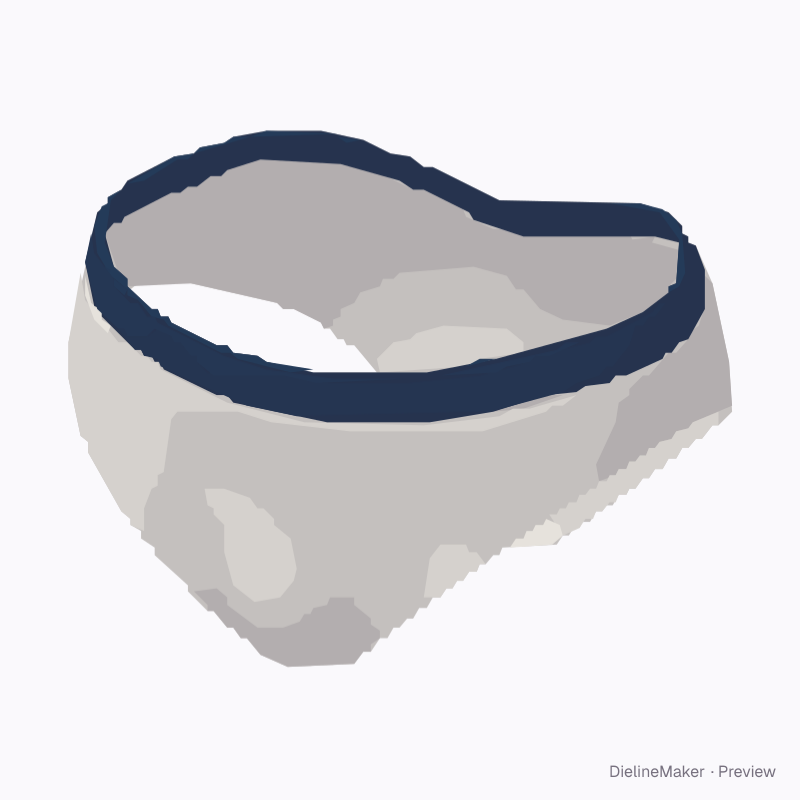

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Cotton underwear briefs decoration template
Original full-coverage briefs with a broad elastic waistband, sewn side seams and crotch bridge, and two actual open leg boundaries. Choose regular or higher-rise side coverage. Front and rear decoration references edit independently. Confirm placement with the supplier; sewing, grading, all-over panels and worn rigs are separate. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size350 × 270 mm
Artwork area154 × 67.5 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Waist width 350 · Garment height 270 mm
- Size range
- Waist width 262.5–472.5 · Garment height 202.5–364.5 mm
- Parts
- 2 parts — Front decoration, Rear decoration
- Artwork area
- 0.021 m²
- Good for

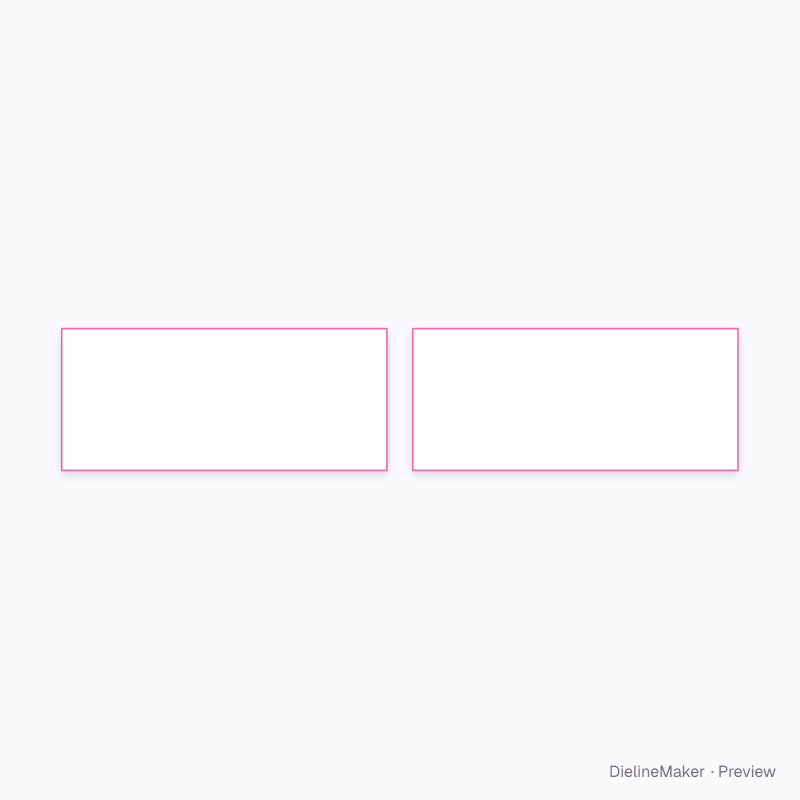

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Object colour17 options
- Elastic band colour4 options
- Side coverage2 options
