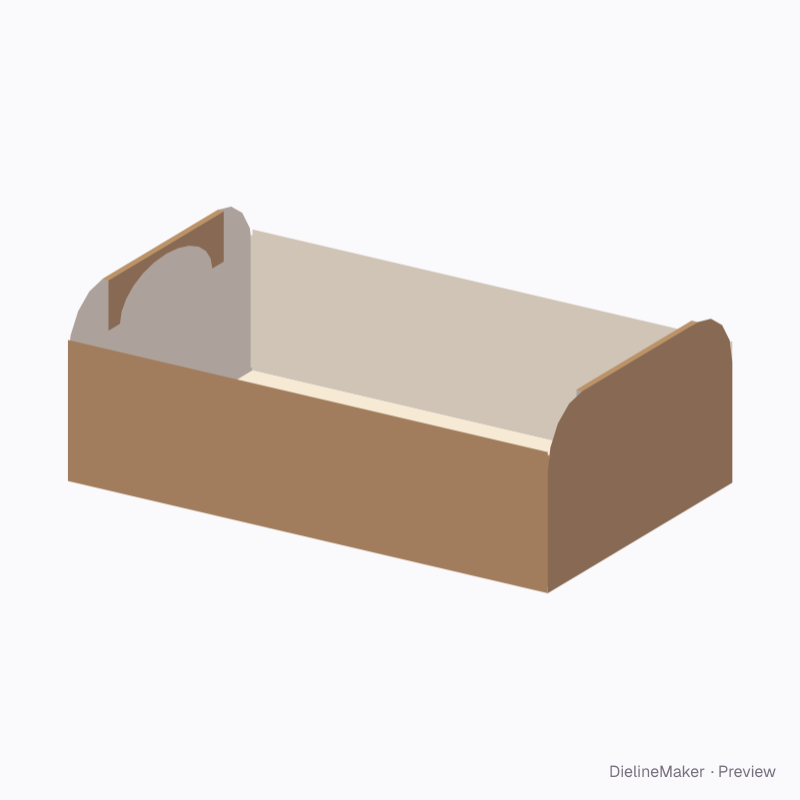

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SHAPED-END-TRAY-01Trays & lids
Tray with shaped end retention returns dieline
A tray with arched rolled end returns and rows of round vent holes along its long walls. A ready-sized preset of the vented tray with curved end returns — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 160 × 70 mm
Outside263.2 × 163.2 × 73.2 mm
Flat blank496.4 × 300 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SHAPED-END-TRAY-01
- Inside size
- Length 260 · Width 160 · Height 70 mm
- Size range
- Length 100–600 · Width 80–400 · Height 30–200 mm
- Manufacturing
- 261.6 × 161.6 × 71.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.115 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KB-fluteKraft 350
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SHAPED-END-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 260 × 160 | L × W |
| Vented long wall ×2 | 260 × 70 | L × H |
| Curved end wall ×2 | 90 × 160 | – × W |
| Glue flap ×4 | 66 × 25 | – |
| End return roll ×2 | 3.2 × 100 | – |
| End return inner ply ×2 | 25 × 100 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- End wall risemm
- Shaped return openingmm
- Vent holes per long wallcount
- Vent diametermm
The vented tray with curved end returns family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tray with shaped end retention returns yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
