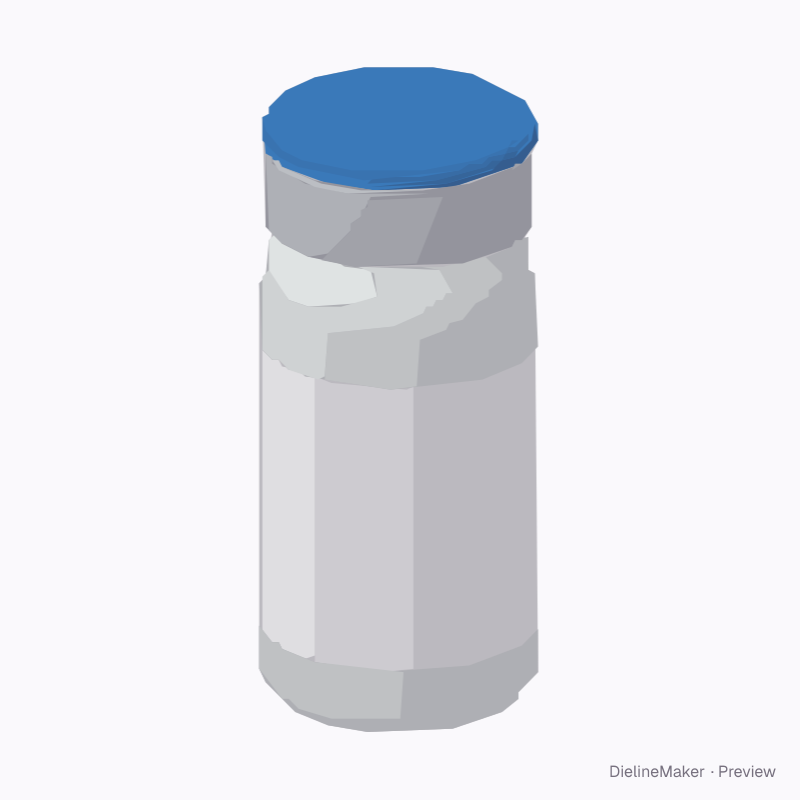

Small vial 2 ml label template
Small glass vial with a stopper, an annular metal crimp seal and an optional flip-off disc. The export is a wrap label for the straight wall; vial forming, closure compatibility, sterile packaging and nominal capacity need the supplier’s drawing. A ready-sized preset of the crimp-sealed glass vial — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 16 × 35 mm
Artwork area52.8 × 17.4 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body diameter 16 · Overall height 35 mm
- Size range
- Body diameter 12–80 · Overall height 28–160 mm
- Parts
- One artwork area
- Artwork area
- 0.001 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 8 options; the template and 3D preview follow each change.
- Wrap coverage%
- Label overlapmm
- Label height (0 = auto)mm
- Label from base (0 = auto)mm
- Glass2 options
- Metal crimp sealon / off
- Show flip-off discon / off
- Flip-off colour5 options
The crimp-sealed glass vial family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this small vial 2 ml yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
