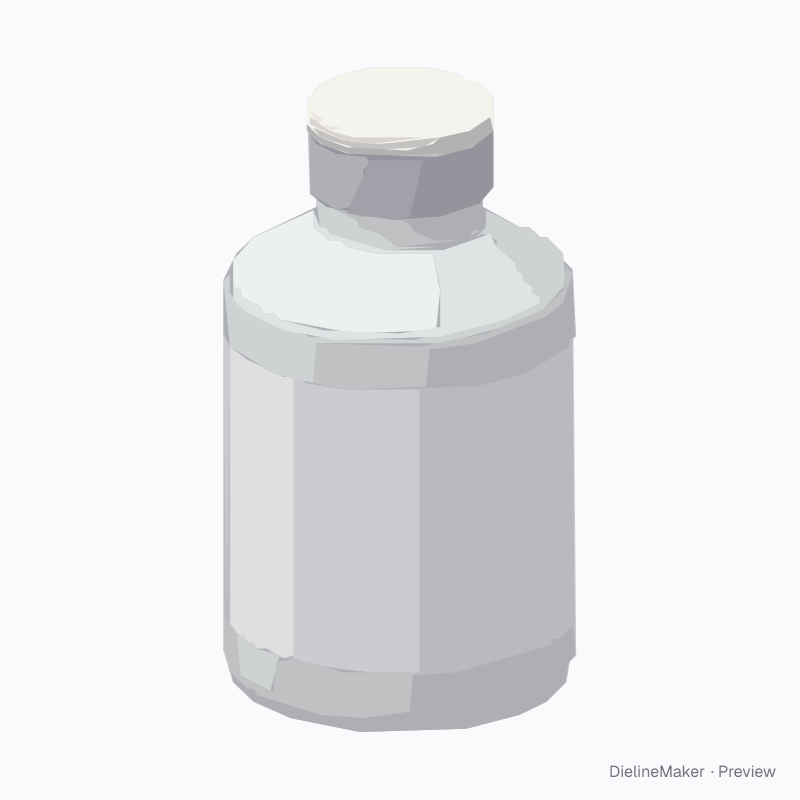

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Large vial 50 ml label template
Small glass vial with a stopper, an annular metal crimp seal and an optional flip-off disc. The export is a wrap label for the straight wall; vial forming, closure compatibility, sterile packaging and nominal capacity need the supplier’s drawing. A ready-sized preset of the crimp-sealed glass vial — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 43 × 75 mm
Artwork area138.6 × 37.3 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body diameter 43 · Overall height 75 mm
- Size range
- Body diameter 12–80 · Overall height 28–160 mm
- Parts
- One artwork area
- Artwork area
- 0.005 m²
- Good for
The flat artwork area

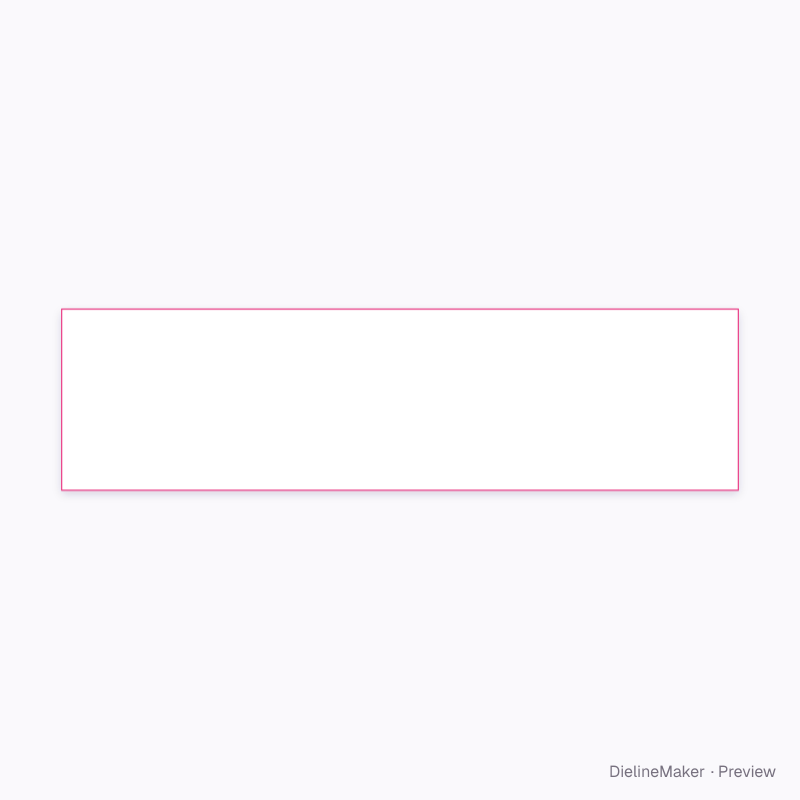

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 8 options; the template and 3D preview follow each change.
- Wrap coverage%
- Label overlapmm
- Label height (0 = auto)mm
- Label from base (0 = auto)mm
- Glass2 options
- Metal crimp sealon / off
- Show flip-off discon / off
- Flip-off colour5 options
The crimp-sealed glass vial family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this large vial 50 ml yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
