Wayfinding totem and map stand decoration template
A monolith pylon, framed map stand, fingerpost with directional blades, crossarm hanging sign or stacked directory frame. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size800 × 2200 mm
Artwork area800 × 1980 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-WAYFIND-01
- Object size
- Sign width 800 · Overall height 2200 mm
- Size range
- Sign width 200–2000 · Overall height 900–4500 mm
- Parts
- 2 parts — Pylon face, Pylon face (rear)
- Artwork area
- 3.168 m²
- Good for
The flat artwork area

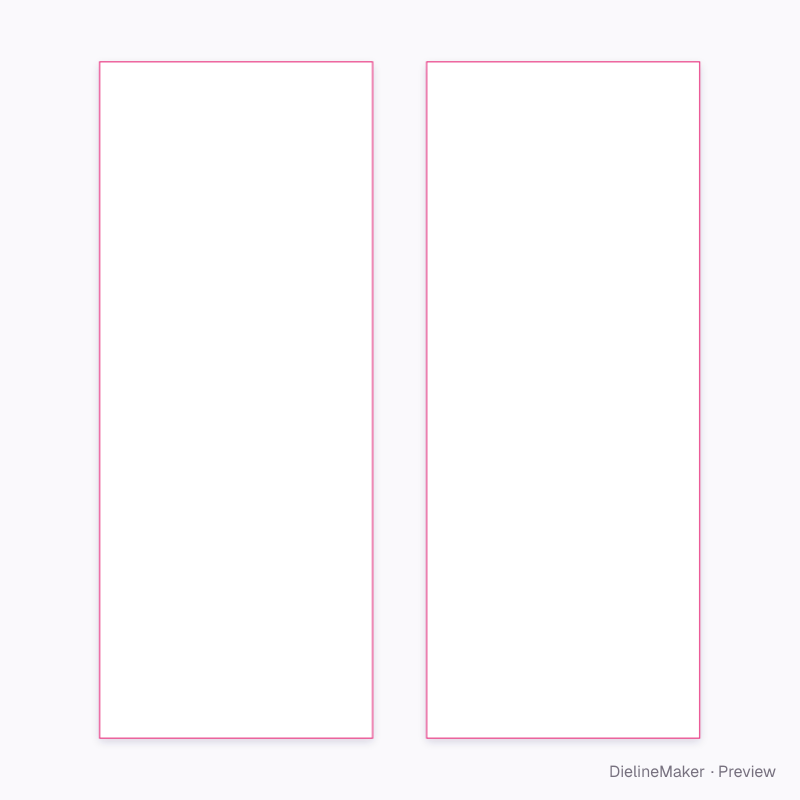

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Sign5 options
- Pylon depthmm
- Panel height%
- Print the back faceson / off
- Print pylon sideson / off
- Frame5 options
