ECMA A60.20.00.03Tuck end
Travel cup carton — Auto-lock bottom dieline
Editable 105 × 105 × 220 mm starting point using auto-lock bottom. Adjust the dimensions to your product before prototyping. A ready-sized preset of the auto-lock bottom — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside105 × 105 × 220 mm
Outside106 × 106 × 221 mm
Flat blank433.5 × 404.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A60.20.00.03
- Inside size
- Length 105 · Width 105 · Height 220 mm
- Size range
- Length 40–400 · Width 20–300 · Height 30–500 mm
- Manufacturing
- 105.5 × 105.5 × 220.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.138 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for

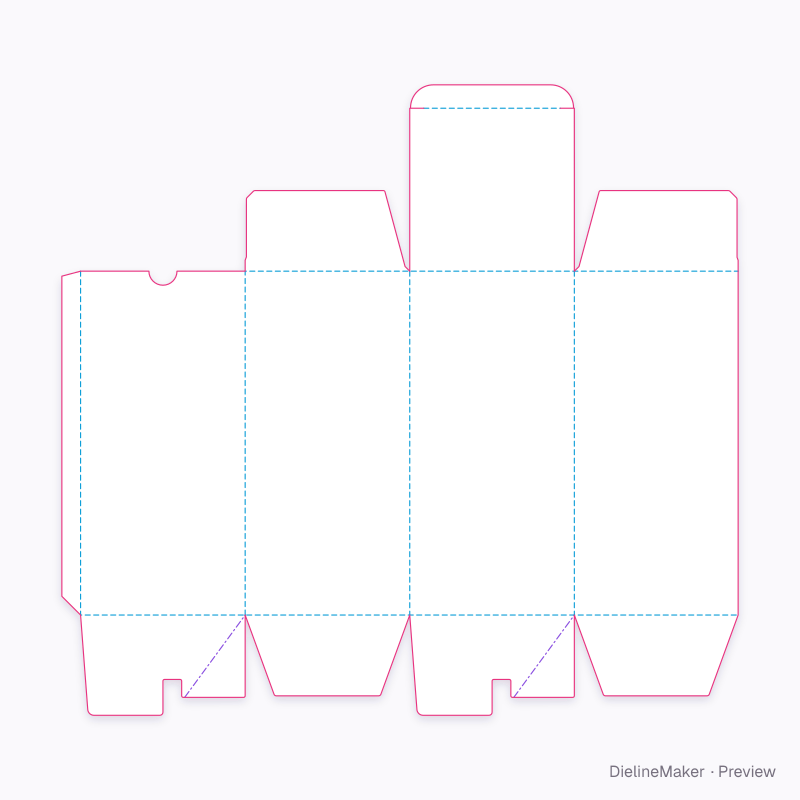

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A60.20.00.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 105.5 × 220.5 | – × H + T |
| Left side | 105.5 × 220.5 | – × H + T |
| Back | 105.5 × 220.5 | – × H + T |
| Right side | 105 × 220.5 | – × H + T |
| Glue flap | 12 × 220.5 | – × H + T |
| Top closure | 105.5 × 104.5 | – |
| Top tuck | 104.5 × 15 | – |
| Top dust flap | 105.5 × 51.8 | – |
| Top dust flap | 105 × 51.8 | – |
| Crash-lock flap (back) | 105.5 × 64.3 | – |
| Glued web ×2 | 30.8 × 65.5 | – |
| Bottom side flap | 105.5 × 51.8 | – |
| Crash-lock flap (front) | 105.5 × 64.3 | – |
| Bottom side flap | 105 × 51.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Top end2 options
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Cord handle holeson / off
- Hook reachmm
- Hook notchmm
