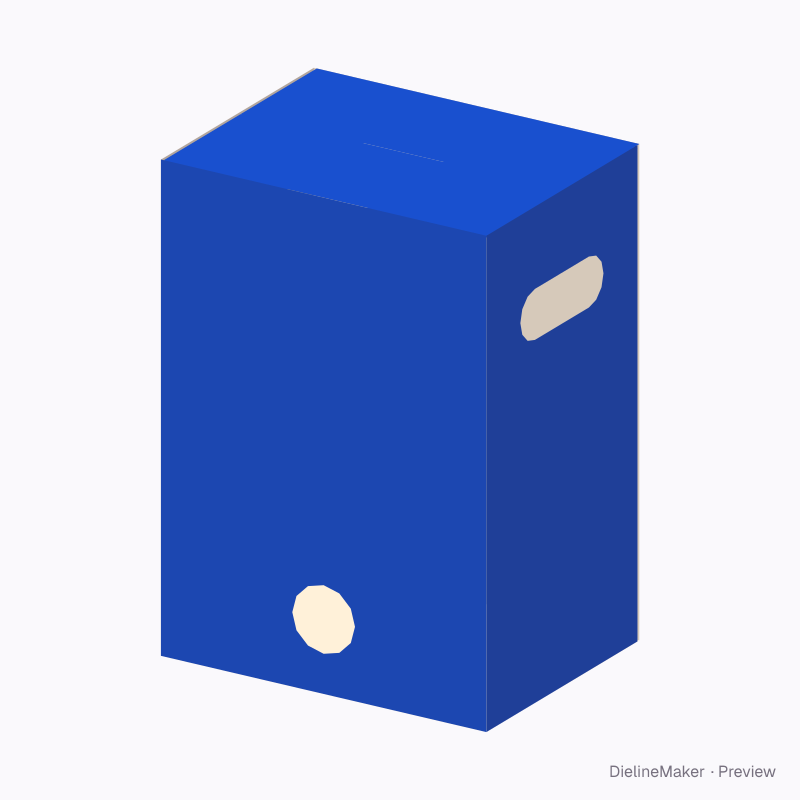

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShipping
Cold-brew tap carton dieline
A corrugated outer with a low tap aperture or perforated knockout and optional side carry holes. Pair it with a separately specified liquid bag and tap. A ready-sized preset of the bag-in-box outer carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 135 × 250 mm
Outside183.2 × 138.2 × 253.2 mm
Flat blank654.8 × 389.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Front width 180 · Depth 135 · Height 250 mm
- Size range
- Front width 100–450 · Depth 80–350 · Height 140–500 mm
- Manufacturing
- 181.6 × 136.6 × 251.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.251 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-flute
- Good for

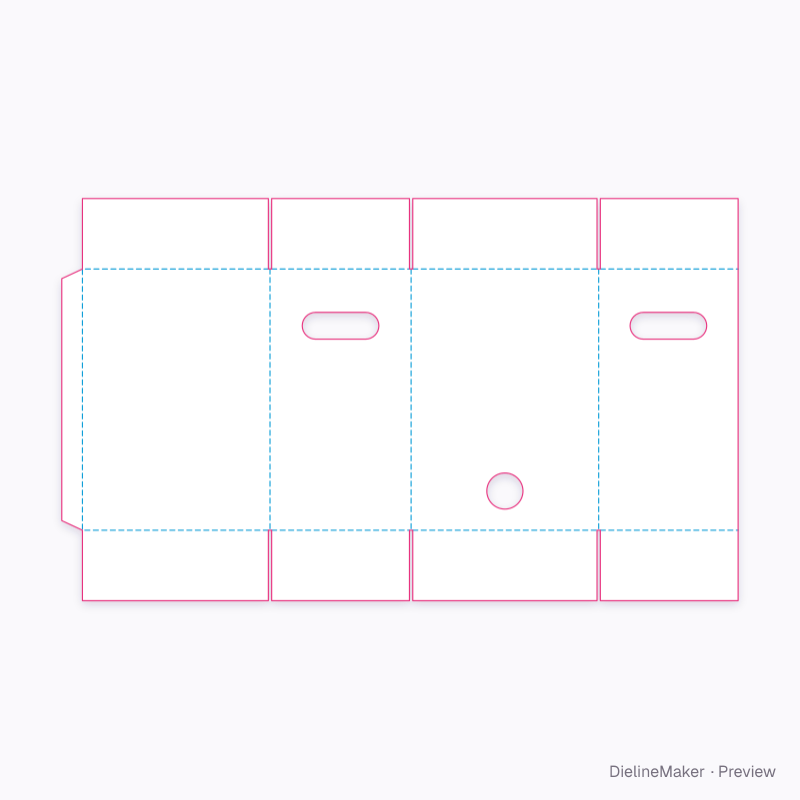

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 181.6 × 253.2 | L + T × H + 2T |
| Left side | 136.6 × 253.2 | W + T × H + 2T |
| Back | 181.6 × 253.2 | L + T × H + 2T |
| Right side | 135 × 253.2 | W × H + 2T |
| Glue flap | 20 × 253.2 | – × H + 2T |
| Bottom outer flap | 180 × 68.3 | L × – |
| Bottom inner flap ×2 | 133.4 × 68.3 | W − T × – |
| Bottom outer flap | 178.4 × 68.3 | L − T × – |
| Top outer flap | 180 × 68.3 | L × – |
| Top inner flap ×2 | 133.4 × 68.3 | W − T × – |
| Top outer flap | 178.4 × 68.3 | L − T × – |
