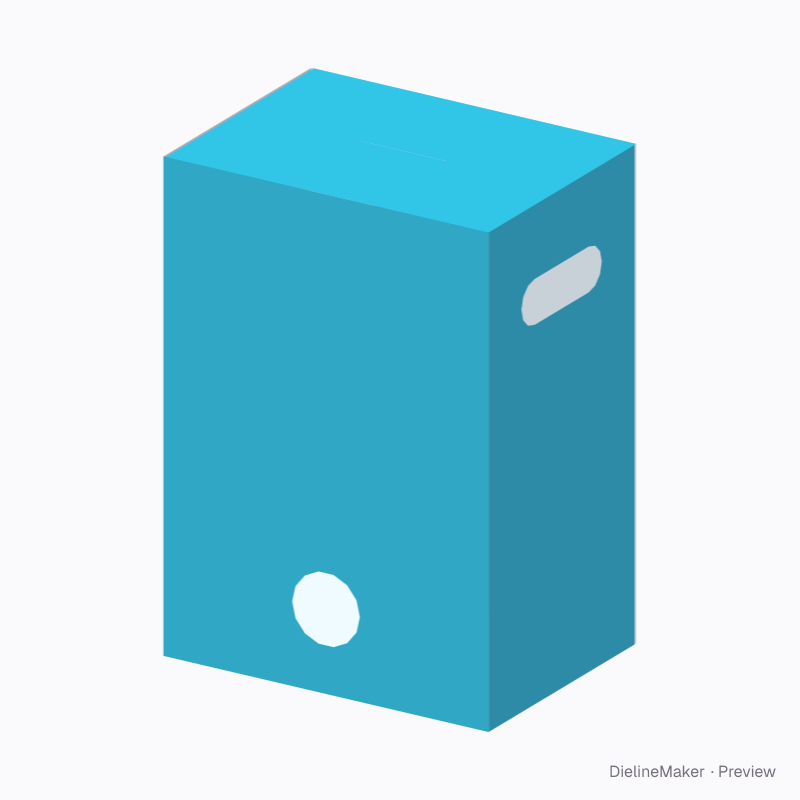

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShipping
Liquid refill outer 5 L dieline
A corrugated outer with a low tap aperture or perforated knockout and optional side carry holes. Pair it with a separately specified liquid bag and tap. A ready-sized preset of the bag-in-box outer carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 145 × 280 mm
Outside203.2 × 148.2 × 283.2 mm
Flat blank714.8 × 429.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Front width 200 · Depth 145 · Height 280 mm
- Size range
- Front width 100–450 · Depth 80–350 · Height 140–500 mm
- Manufacturing
- 201.6 × 146.6 × 281.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.303 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 201.6 × 283.2 | L + T × H + 2T |
| Left side | 146.6 × 283.2 | W + T × H + 2T |
| Back | 201.6 × 283.2 | L + T × H + 2T |
| Right side | 145 × 283.2 | W × H + 2T |
| Glue flap | 20 × 283.2 | – × H + 2T |
| Bottom outer flap | 200 × 73.3 | L × – |
| Bottom inner flap ×2 | 143.4 × 73.3 | W − T × – |
| Bottom outer flap | 198.4 × 73.3 | L − T × – |
| Top outer flap | 200 × 73.3 | L × – |
| Top inner flap ×2 | 143.4 × 73.3 | W − T × – |
| Top outer flap | 198.4 × 73.3 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Tap aperturemm
- Tap centre from basemm
- Tap opening2 options
- Side carry holeson / off
The bag-in-box outer carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this liquid refill outer 5 l yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
