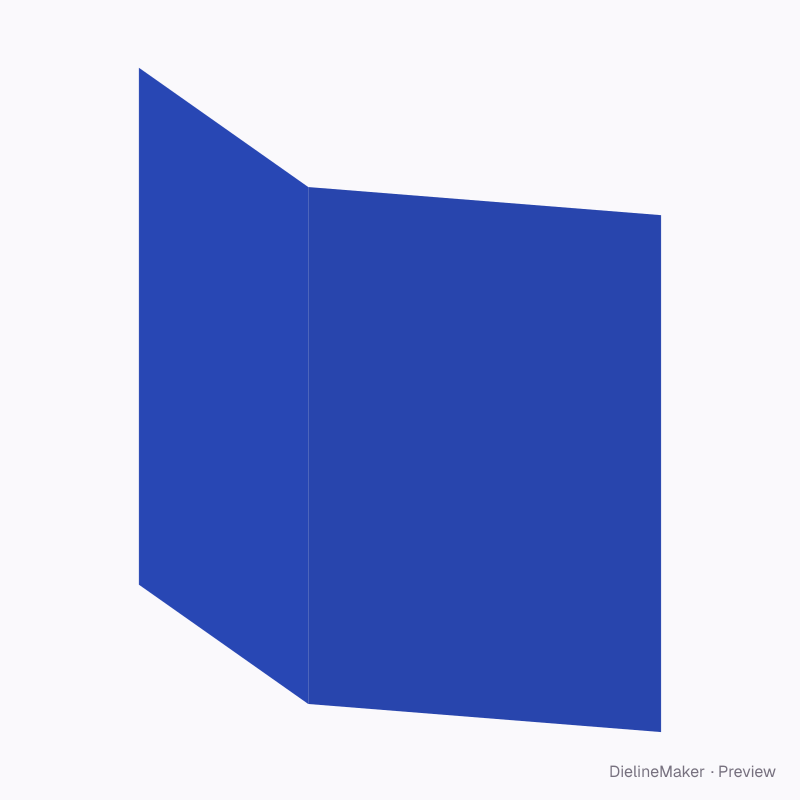

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
US Letter bi-fold brochure dieline
A four-page brochure on one sheet with a centre fold. Width is the finished page width; the flat sheet is twice that width. Front, back and both inside pages are editable. A ready-sized preset of the bi-fold brochure — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside139.7 × 215.9 mm
Outside139.7 × 215.9 mm
Flat blank279.4 × 215.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Page width 139.7 · Page height 215.9 mm
- Size range
- Page width 50–450 · Page height 60–600 mm
- Manufacturing
- 139.7 × 215.9 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.060 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Right page / front | 139.7 × 215.9 | L × H |
| Left page / back | 139.7 × 215.9 | L × H |
The bi-fold brochure family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this us letter bi-fold brochure yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
