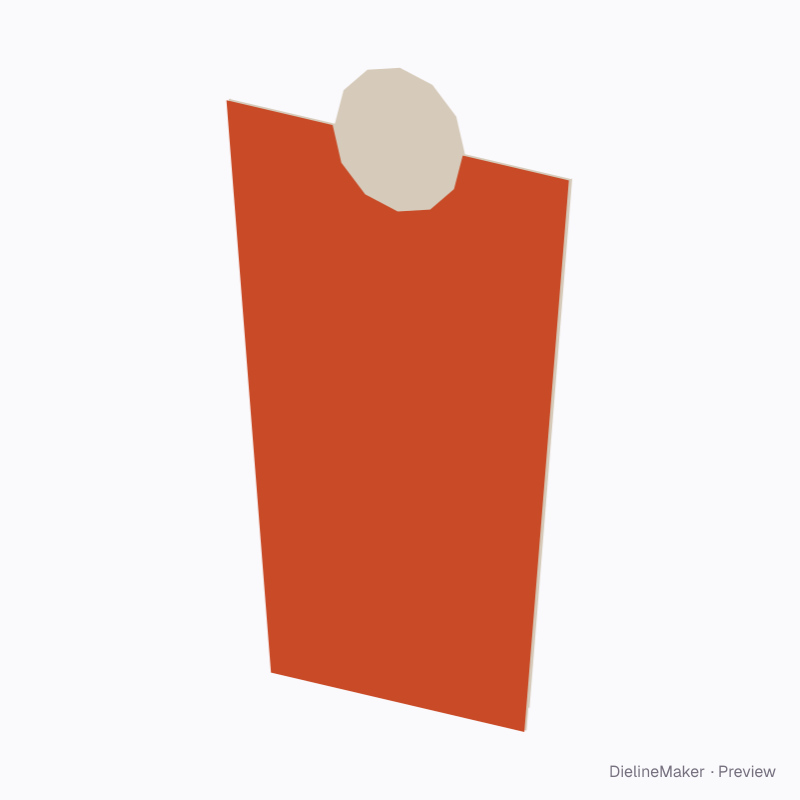

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F70.51.00.00Bags & pouches
Flat board bag 80×120 dieline
Tapered flat pouch with glued side flaps, e.g. for a cookie, churros or a gift card. A ready-sized preset of the folding-board bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 20 × 120 mm
Outside80.8 × 20 × 135.6 mm
Flat blank107.7 × 255.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F70.51.00.00
- Inside size
- Mouth width (A) 80 · Depth (B) 20 · Height 120 mm
- Size range
- Mouth width (A) 70–400 · Depth (B) 8–200 · Height 40–600 mm
- Manufacturing
- 80 × 20 × 120 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.020 m² · about 21 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300Kraft 350SBS 350Paper 170SBS 18 pt
- Good for

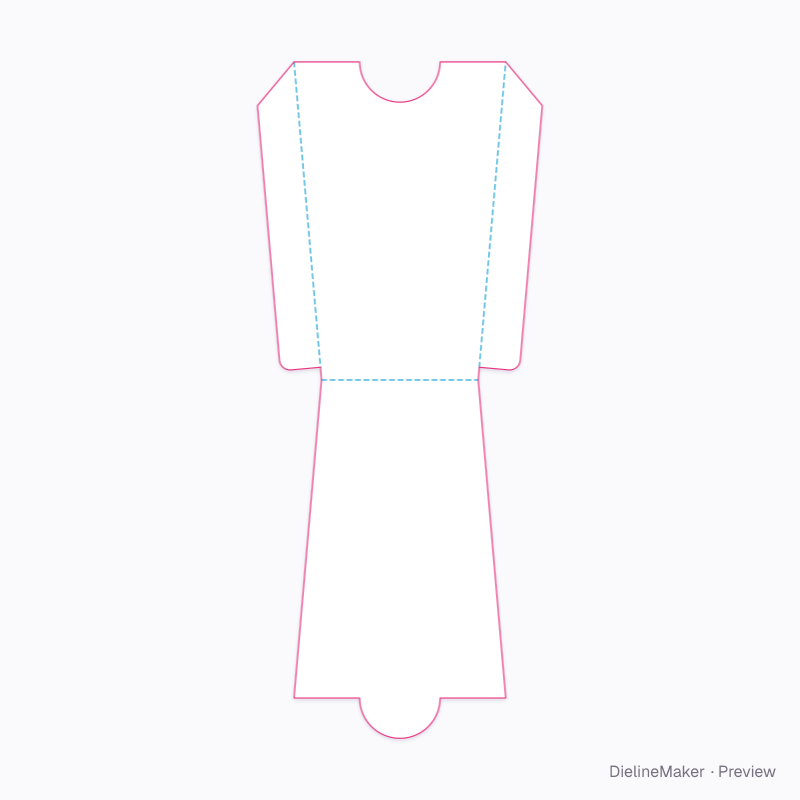

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F70.51.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 80 × 120 | L × H |
| Back | 59.2 × 135.2 | – |
| Glue flap ×2 | 15.2 × 115.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Construction4 options
- Base width (a)mm
- Mouth4 options
- Thumb notch radiusmm
- Glue flap / stripmm
