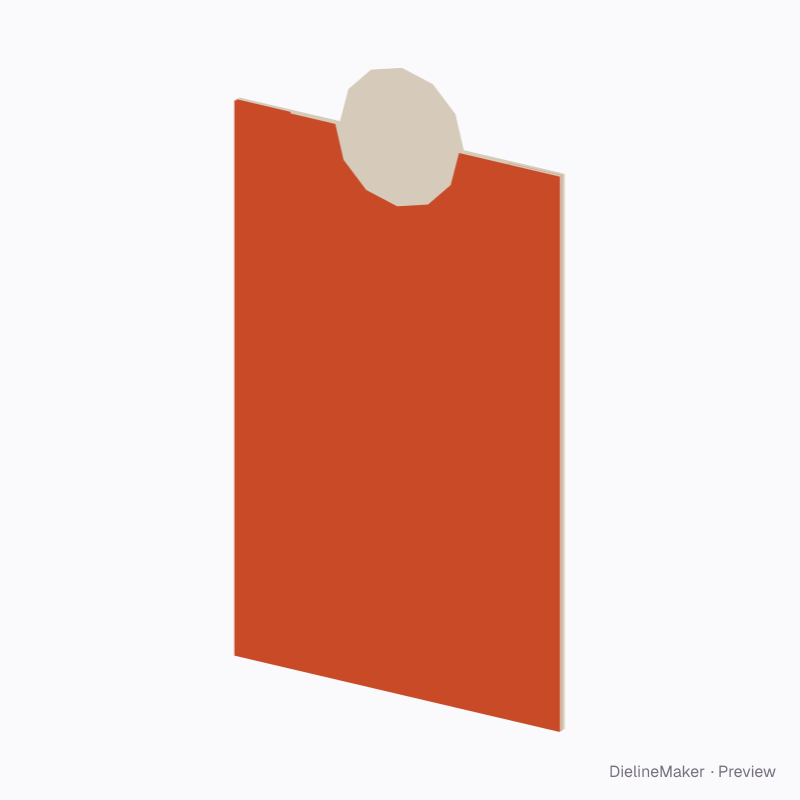

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F70.53.00.00Bags & pouches
Board bag with folded sides 90×30×140 dieline
Bag with bellows side gussets that open to a deep pocket. A ready-sized preset of the folding-board bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 30 × 140 mm
Outside90.8 × 30 × 157.5 mm
Flat blank177.6 × 297.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F70.53.00.00
- Inside size
- Mouth width (A) 90 · Depth (B) 30 · Height 140 mm
- Size range
- Mouth width (A) 70–400 · Depth (B) 8–200 · Height 40–600 mm
- Manufacturing
- 90 × 30 × 140 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.037 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300Kraft 350SBS 350Paper 170SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F70.53.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90 × 140 | L × H |
| Back | 90 × 156.9 | L × – |
| Side gusset ×4 | 15 × 140 | – × H |
| Gusset glue strip ×2 | 13.8 × 140 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Construction4 options
- Base width (a)mm
- Mouth4 options
- Thumb notch radiusmm
- Glue flap / stripmm
The folding-board bag family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this board bag with folded sides 90×30×140 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
